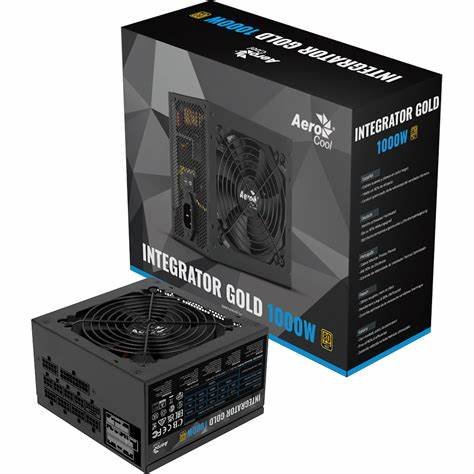

Aerocool Integrator Gold 1000W Fully Modular Power Supply
The Aerocool Integrator Gold 1000W Fully Modular Power Supply is engineered to deliver high efficiency and stable power output, making it an excellent choice for high-performance PC builds. With its 80Plus Gold certification and fully modular design, it ensures optimal power delivery while minimizing energy loss and simplifying cable management.
Features
80Plus Gold Certification: Achieves up to 92% efficiency, reducing energy consumption and heat generation.

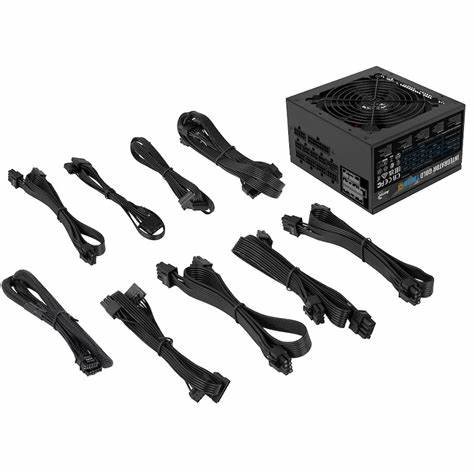

Fully Modular Design: Allows users to connect only the necessary cables, enhancing airflow and simplifying cable management.
Premium Japanese Capacitors: Utilizes 105°C-rated capacitors for improved durability and stable power delivery under heavy loads.
Optimized Cooling: Features a 120mm silent black fan with thermal speed control and 0RPM mode during low loads for quiet operation.
Comprehensive Protection: Equipped with Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), Over Current Protection (OCP), and Surge & Inrush Protection (SIP).
ATX 3.0 & PCIe 5.0 Ready: Includes a 12VHPWR connector, ensuring compatibility with the latest graphics cards and systems.
Specifications
| Model | Integrator Gold 1000W |
| Total Power Output | 1000W |
| AC Input | 100–240V AC, 13–6.5A, 47–63Hz |
| DC Output | +3.3V: 20A, +5V: 20A, +12V: 83A, -12V: 0.3A, +5VSB: 3A |
| Combined Power | +3.3V & +5V: 130W, +12V: 996W, -12V: 3.6W, +5VSB: 15W |
| Efficiency Certification | 80Plus Gold (up to 92%) |
| PFC Type | Active (PF > 0.9) |
| Fan Size | 120mm |
| Modularity | Fully modular |
| Connectors | 1 x 20+4 Pin ATX, 2 x 4+4 Pin EPS, 4 x 6+2 Pin PCIe, 1 x 12VHPWR, 8 x SATA, 4 x Molex |
| Dimensions (L x W x H) | 160mm x 150mm x 86mm |
| Color | Black |
| Warranty | 2 Years |
