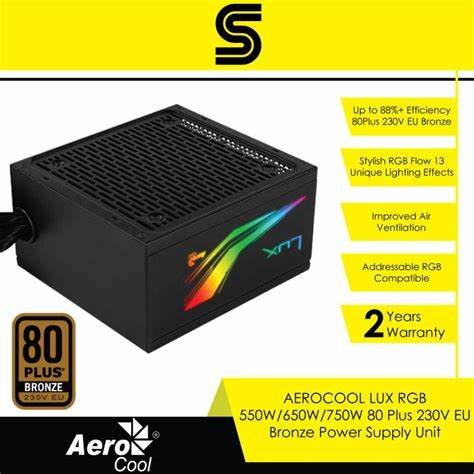

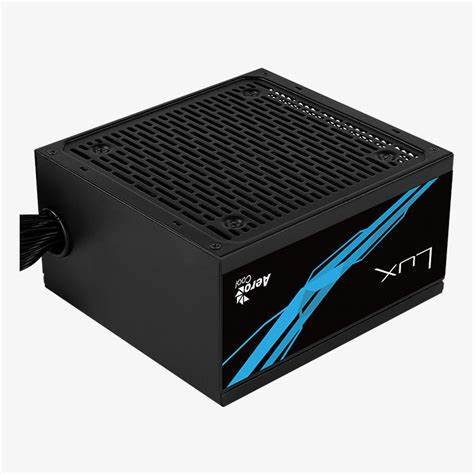

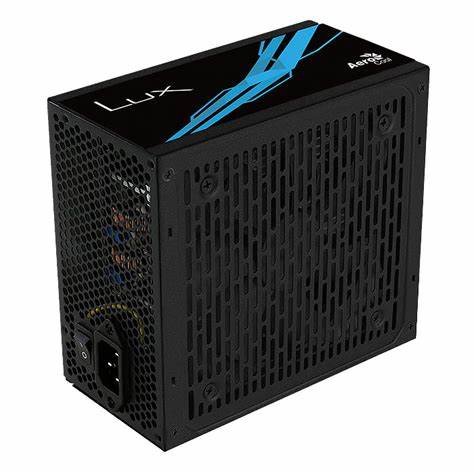

Aerocool LUX 550W 230V APFC UK Box Power Supply
The Aerocool LUX 550W 230V APFC UK Box Power Supply is a reliable and efficient unit designed for desktop PCs, offering a balance of performance and aesthetics.
Features
High Efficiency: Achieves up to 88% efficiency, certified with 80Plus 230V EU Bronze, ensuring optimal power usage and reduced energy waste.
Active Power Factor Correction (APFC): Enhances power stability with a power factor greater than 0.9, leading to improved energy consumption and reduced electrical noise.
Enhanced Cooling: Features a 120mm silent black fan with optimized thermal speed control, and a 30% increase in ventilation area for better airflow and heat dissipation.
Comprehensive Protection: Equipped with Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), and Short Circuit Protection (SCP) to safeguard your components.
Cable Management: Includes soft, black, flat cables for easier routing and a cleaner build appearance.
Compatibility: Supports all Intel form factors up to ATX12V Ver.2.4, making it suitable for a wide range of systems.
Specifications
| Model | LUX 550W |
| Total Power Output | 550W |
| AC Input | 200–240V AC, 4A, 50–60Hz |
| DC Output | +3.3V: 20A, +5V: 20A, +12V: 42A, -12V: 0.3A, +5VSB: 2.5A |
| Combined Power | +3.3V & +5V: 100W, +12V: 504W, -12V: 3.6W, +5VSB: 12.5W |
| Efficiency Certification | 80Plus 230V EU Bronze (up to 88%) |
| PFC Type | Active (PF > 0.9) |
| Fan Size | 120mm |
| Modularity | Non-modular |
| Connectors | 1 x 20+4 Pin ATX, 1 x 4+4 Pin EPS, 1 x 6+2 Pin PCIe, 4 x SATA, 2 x Molex |
| Dimensions (L x W x H) | 160mm x 150mm x 86mm |
| Color | Black |
| Warranty | 1 Year |
