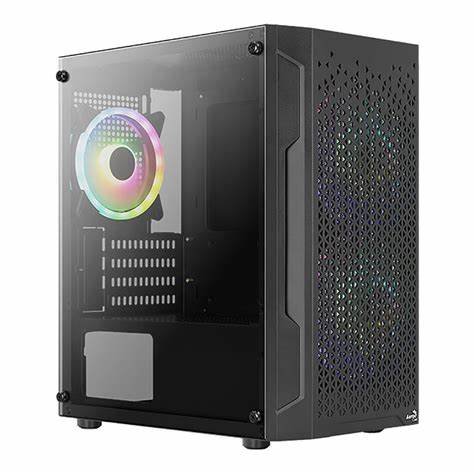

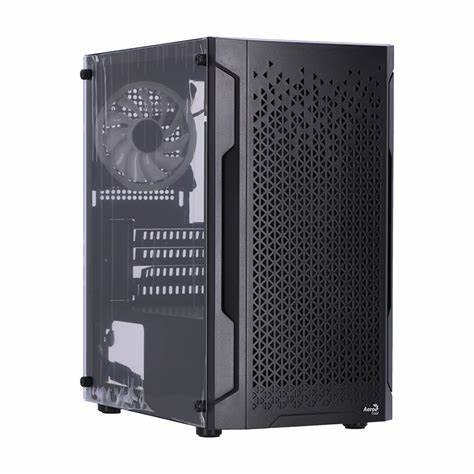

Aerocool Trinity Mini-G-BK-v3 – Micro / Mini Itx Gaming Case
The Aerocool Trinity Mini-G-BK-v3 is a compact mini tower case designed for Micro-ATX and Mini-ITX motherboards. It features a mesh front panel for enhanced airflow and a tempered glass side panel to showcase your build. Pre-installed with three RGB fans, it offers both effective cooling and vibrant lighting.
Features
Compact Mini Tower Design: Suitable for space-saving builds without compromising on performance.
Enhanced Airflow: Mesh front panel allows for improved ventilation and visibility of front LED fans.
Tempered Glass Side Panel: Provides a clear view of internal components.
Pre-installed RGB Fans: Includes two 140mm RGB fans at the front and one 120mm RGB fan at the rear.
Dual Chamber Design: Separates PSU and storage for improved ventilation.
Cooling Support: Supports up to six fans and front/rear liquid cooling radiators.
Storage Options: Accommodates up to two 3.5″ drives and three 2.5″ drives.
Front I/O Ports: Equipped with two USB 3.0 ports, one USB 2.0 port, and HD audio and microphone jacks.
Specifications
| Model | Trinity Mini-G-BK-v3 |
| Case Type | Mini Tower |
| Color | Black |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Dimensions (W x H x D) | 206.5 x 385 x 353.4 mm |
| Internal Dimensions | 200 x 375 x 300 mm |
| Material | SPCC Steel, ABS Plastic, Tempered Glass |
| Steel Thickness | 0.5 mm |
| Drive Bays | 2 x 3.5″/2.5″, 1 x 2.5″, 2 x 2.5″/3.5″ |
| Expansion Slots | 4 |
| GPU Clearance | Up to 297 mm (without front radiator) |
| CPU Cooler Clearance | Up to 158 mm |
| PSU Support | ATX PSU up to 159 mm (not included) |
| Pre-installed Fans | 2 x 140mm RGB (front), 1 x 120mm RGB (rear) |
| Fan Support | Front: 2 x 120/140mm; Top: 2 x 120mm; Rear: 1 x 120mm; PSU Shroud: 2 x 120mm |
| Radiator Support | Front: 120/240mm (max thickness 28mm); Rear: 120mm |
| I/O Ports | 2 x USB 3.0, 1 x USB 2.0, HD Audio & Mic |
| Cable Management Depth | 20.5 mm |
| Warranty | 1 Year |
