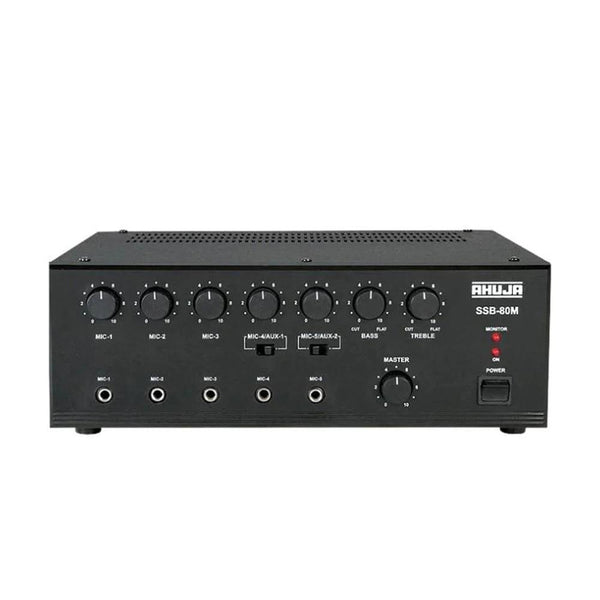

The Ahuja SSB80EM is a powerful PA amplifier with 5 microphone inputs and 1 auxiliary input, ideal for medium-sized audio setups. It delivers clear and dependable sound for public address systems, events, and meetings. Compact and efficient, it ensures easy operation and effective audio distribution.
FEATURES
- 5 Mic & 2 Aux Inputs.
- Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
- Cut type Bass & Treble controls.
- Instant transfer to DC power (Car Battery) if AC power fails.
SPECIFICATIONS
| Power Output | 110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD |
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 5 × Mic 0.65mV/4.7k?, 2 × Aux 100mV/470k? |
| Frequency Response | 65-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
| Outputs | Preamp 200mV/600? |
| Speaker Outputs | 4?, 8?, 16?, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
| Power Consumption | AC: 180VA DC: 3A |
| Dimensions | W355 × H133 × D285 mm |
| Weight | 8.5kg |
