Description

DUAL GEFORCE RTX™ 5060 White Edition

The ASUS Dual GeForce RTX™ 5060 White Edition redefines compact GPU performance, blending advanced thermal innovation and elegant aesthetics. Designed for gamers and creators, it integrates flagship-level cooling technology such as dual Axial-tech fans, a vented backplate, and dual-ball bearings to ensure consistent and quiet operation.

Built on the revolutionary NVIDIA Blackwell architecture, it offers fifth-gen Tensor Cores and fourth-gen Ray Tracing Cores for AI-powered rendering, lifelike lighting, and stunning visuals. With DLSS 4, Reflex 2, and NVIDIA Studio optimizations, this GPU accelerates gaming and creative workloads with unmatched efficiency.

Its 2.5-slot design ensures compatibility with small-form-factor builds, while the Dual BIOS feature allows switching between performance and quiet modes. Combined with the GPU Tweak III utility, users gain full control over tuning, monitoring, and customization. The ASUS Dual GeForce RTX™ 5060 White Edition is ideal for those seeking premium performance in a minimalist, compact form.



Features



  • Compact 2.5-Slot Design: Perfect for small-form-factor builds without compromising power.

  • Axial-Tech Dual Fans: Long blades and optimized airflow ensure superior cooling efficiency.

  • Dual-Ball Fan Bearings: Last up to twice as long as sleeve-bearing fans.

  • Vented Metal Backplate: Improves thermal dissipation and protects critical components.

  • Dual BIOS Mode: Toggle between quiet or performance fan profiles.

  • GPU Tweak III Software: Fine-tune GPU settings, monitor performance, and control fan curves.

  • NVIDIA Blackwell Architecture: Brings next-gen AI and ray-tracing capabilities.

  • DLSS 4 Technology: AI-enhanced performance with Multi Frame Generation.

  • NVIDIA Reflex 2: Delivers ultra-low latency and faster responsiveness in competitive gaming.

  • NVIDIA Studio & Broadcast: Professional-grade tools for creators and streamers.



Specifications



Categories Details
Model DUAL-RTX5060-O8G-WHITE
Graphics Engine NVIDIA® GeForce RTX™ 5060
Architecture NVIDIA Blackwell
AI Performance 614 TOPs
Bus Standard PCI Express 5.0
OpenGL Support OpenGL® 4.6
Video Memory 8GB GDDR7
Memory Speed 28 Gbps
Memory Interface 128-bit
CUDA Cores 3840
Engine Clock (OC Mode) 2565 MHz
Engine Clock (Default Mode) 2535 MHz (Boost)
Maximum Resolution 7680 × 4320
Display Outputs 1 × HDMI 2.1b, 3 × DisplayPort 2.1b
HDCP Support Yes (2.3)
Maximum Display Support 4
NVLink / Crossfire Not Supported
Cooling System Dual Axial-tech Fans, 2.5-slot Heatsink
Fan Bearings Dual-Ball Bearings

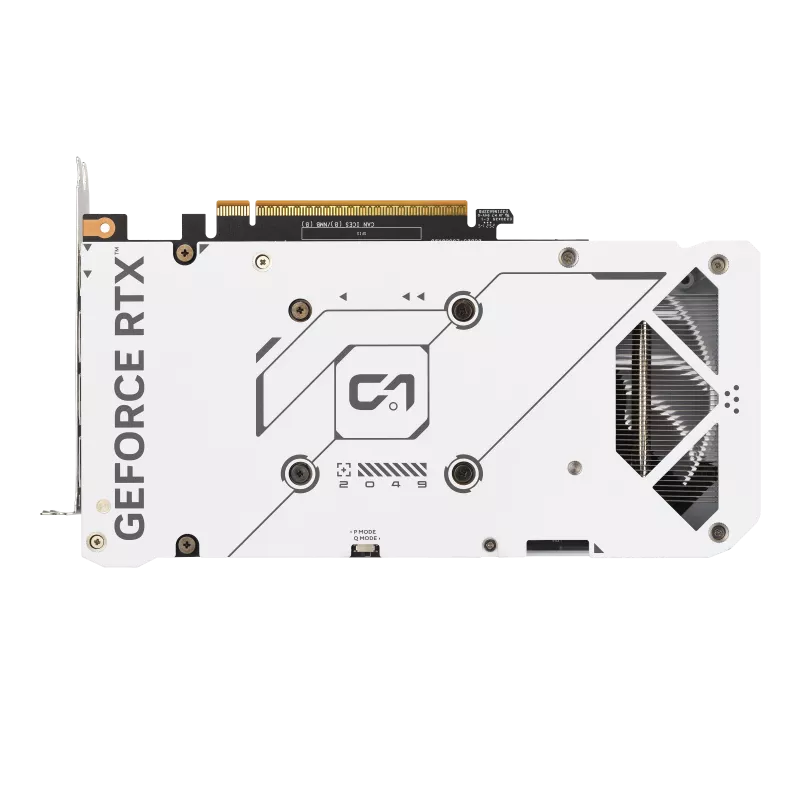

Backplate Vented Metal Backplate
BIOS Dual BIOS (Performance / Quiet)
Software ASUS GPU Tweak III, MuseTree, GeForce Game Ready & Studio Drivers
Accessories Speedsetup Manual, Thank You Card
Dimensions (mm) 228 × 123 × 50
Dimensions (inches) 8.98 × 4.84 × 1.97
Recommended PSU 550W
Power Connector 1 × 8-pin
Slot Size 2.5 Slot
Ideal PSU Companion ASUS Prime 850W / 750W Gold
Special Features 0dB Technology, Auto-Extreme Manufacturing, GPU Guard, Stainless Steel Bracket
