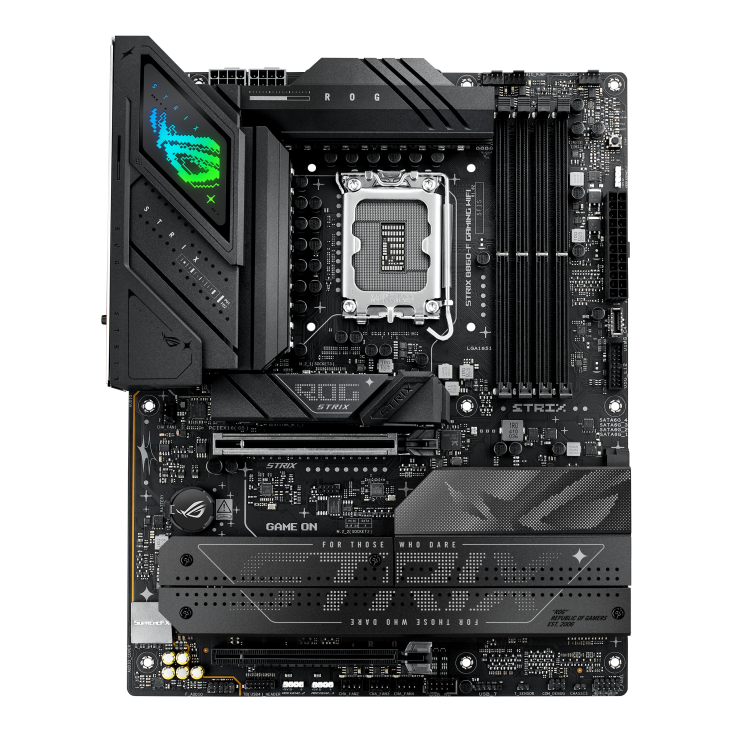

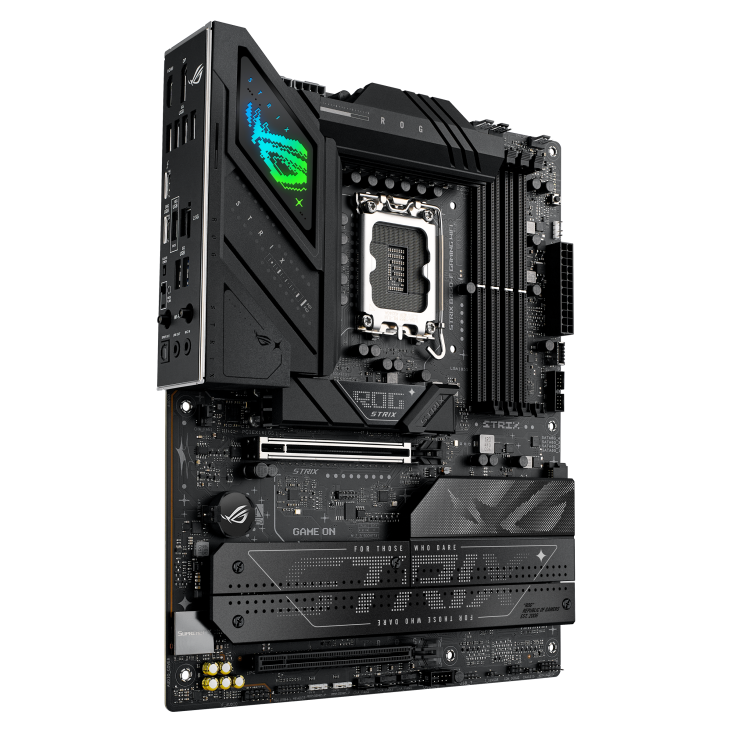

Extreme Power & Performance — ROG STRIX B860-F GAMING WIFI
The ASUS ROG STRIX B860-F Gaming WiFi motherboard represents the pinnacle of mid-tier gaming performance and design innovation. Built for Intel® Core™ Ultra Processors (Series 2) with the LGA1851 socket, this board delivers incredible processing stability through a robust 16+2+2 power stage design, ensuring consistent voltage even under intense workloads. Its DDR5 9066+ MT/s (OC) memory support and AI-enhanced BIOS features enable users to push performance to the limits with effortless tuning.
The B860-F is equipped with PCIe 5.0 x16 SafeSlot expansion for next-gen GPUs, 4x M.2 slots for ultra-fast NVMe storage, and dual USB4/Thunderbolt™ 4 ports for lightning-speed data transfer. ASUS integrates its AI Advisor and AI Networking II systems to optimize overclocking, system performance, and connectivity automatically. Advanced cooling with VRM heatsinks, M.2 backplates, and multiple 4-pin headers ensures stable operation even during extended gaming or creative workloads.
Aesthetically, the board showcases the ROG Strix signature style, with Aura Sync RGB lighting and a sleek matte-black PCB. The built-in SupremeFX audio delivers premium-grade sound, while the ASUS Q-Design innovations (like M.2 Q-Latch and PCIe Q-Release) make installation effortless.
For enthusiasts seeking seamless connectivity, intuitive control, and future-proof performance, the ROG Strix B860-F delivers in every aspect — designed to dominate in gaming, creation, and beyond.
Features
-
Supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket
-
16(80A)+1(80A)+2(80A)+1(80A) premium power stages
-
DDR5 memory up to 9066+ MT/s (OC), Dual Channel
-
4× M.2 Slots (PCIe 5.0 x4 & PCIe 4.0 x4) + 4× SATA 6Gb/s
-
Dual USB4 / Thunderbolt™ 4 ports for ultra-fast connectivity
-
Intel® 2.5Gb Ethernet + WiFi 7 with ASUS WiFi Q-Antenna
-
AI Advisor, AI Networking II, and NPU Boost for smart performance tuning
-
Enhanced cooling design with VRM and M.2 heatsinks
-
SupremeFX 7.1 Surround Sound High Definition Audio (ALC4080)
-
Aura Sync RGB lighting and ASUS Q-Design features for easy DIY
-
Armoury Crate, HWiNFO, TurboV Core, and AIDA64 Extreme software suite
Specifications
| Categories | Details |
|---|---|
| Model | ROG STRIX B860-F GAMING WIFI |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) — LGA1851 |
| Chipset | Intel® B860 |
| Memory | 4× DDR5 DIMM slots (up to 256GB, 9066+ MT/s OC), Dual Channel, AEMP III |
| Expansion Slots | 1× PCIe 5.0 x16 (SafeSlot, CPU), 1× PCIe 4.0 x16 (x4, Chipset) |
| Storage | 4× M.2 (PCIe 5.0 & 4.0 x4), 4× SATA 6Gb/s |
| Networking | Intel® 2.5Gb Ethernet, ASUS LANGuard, WiFi 7 (802.11be), Bluetooth® 5.4 |
| USB Ports (Rear) | 1× Thunderbolt™ 4 (Type-C), 1× USB 20Gbps (Type-C), 1× USB 10Gbps (Type-A), 6× USB 5Gbps (Type-A) |
| USB Ports (Front) | 1× USB 10Gbps (Type-C), 1× USB 5Gbps header (2 ports), 2× USB 2.0 headers (3 ports) |
| Audio | ROG SupremeFX ALC4080 7.1 Surround Sound, Savitech SV3H712 AMP |

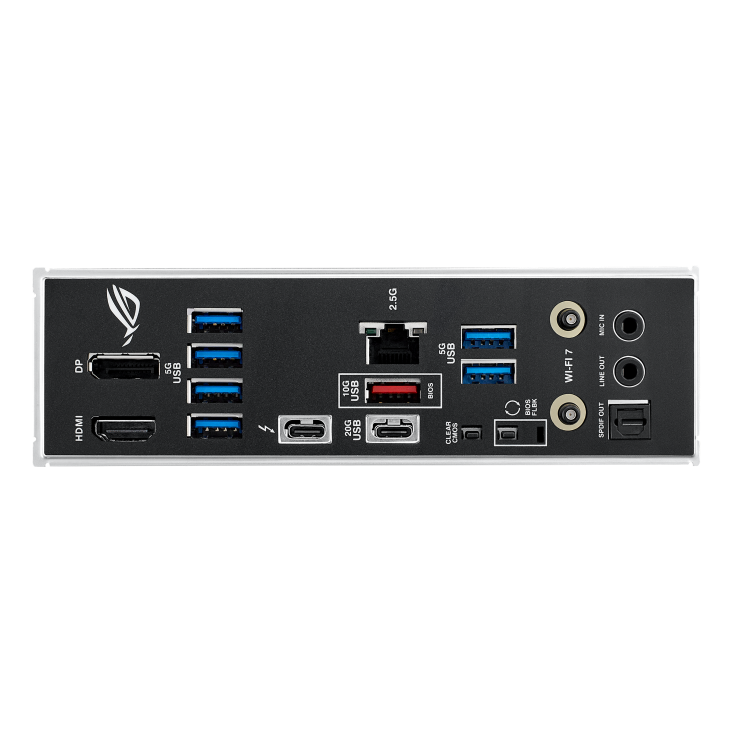

| Back I/O Ports | Thunderbolt™ 4, USB Type-C, HDMI, DisplayPort, Ethernet, Audio jacks, WiFi module, Clear CMOS, BIOS FlashBack™ |
| Internal I/O | CPU/AIO/Chassis Fan headers, 24-pin ATX, 2× 8-pin CPU power, thermal sensor, Thunderbolt header |
| Cooling | VRM & M.2 heatsinks, 4-pin fan headers, AIO pump header |
| Form Factor | ATX (30.5 × 24.4 cm) |
| Software | Armoury Crate, TurboV Core, HWiNFO, ASUS GlideX, AIDA64 Extreme (60-day trial) |
| Operating System | Windows® 11 (22H2 and later) |

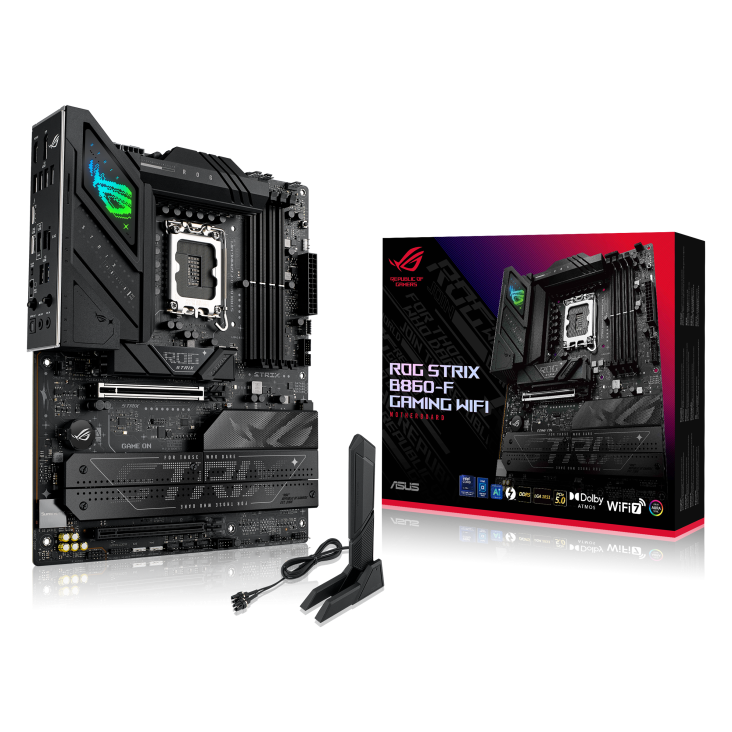

| Accessories | WiFi Q-Antenna, 2× SATA cables, M.2 Q-Latch, ROG keychain, stickers, quick guide |
