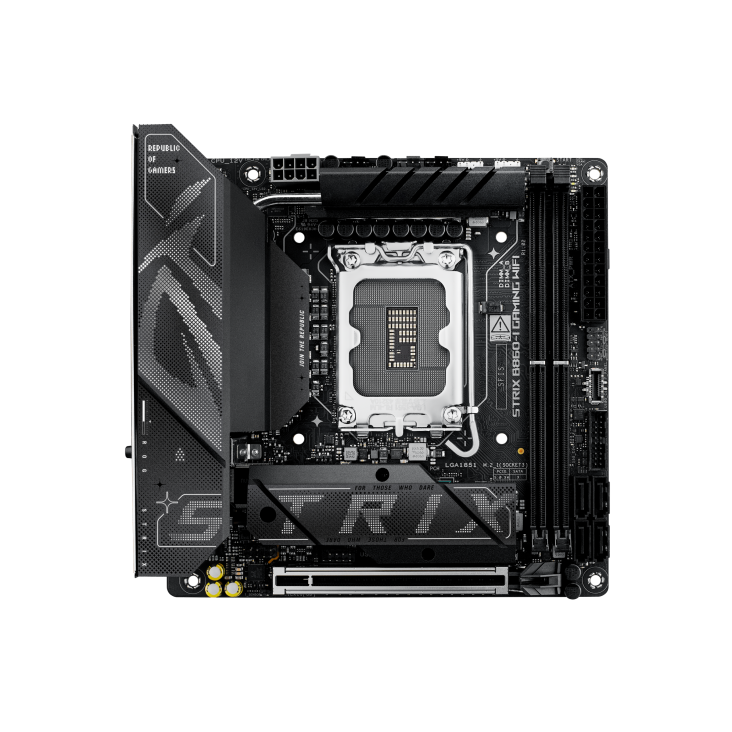

ROG STRIX B860-I GAMING WIFI — Extreme Power in a Compact Design

The ASUS ROG STRIX B860-I GAMING WIFI redefines small-form-factor gaming performance. Engineered for Intel® Core™ Ultra Processors (Series 2) on the Intel® B860 chipset, this Mini-ITX powerhouse combines efficiency, intelligence, and exceptional design.

It features a 10(80A)+1(80A)+2(80A)+1(80A) power stage configuration with ProCool 8-pin power connectors, ensuring stable delivery under heavy loads. Memory performance is equally impressive, supporting DDR5 9066+ MT/s (OC) across dual-channel 2 × DIMM slots, enhanced by AEMP III, DIMM Fit, and DIMM Fit Pro technologies.

The board’s Asynchronous Clock architecture isolates CPU and memory domains for superior overclocking control, while NPU Boost enables AI-accelerated performance gains of up to 24%. With AI Advisor and AI Networking II, the Strix B860-I intelligently optimizes system tuning and connectivity in real time.

Connectivity is state-of-the-art: PCIe 5.0 x16 SafeSlot, 2 × M.2 (PCIe 5.0 & 4.0), WiFi 7, and Intel® 2.5 Gb Ethernet deliver blazing-fast data throughput. Dual Thunderbolt™ 4 / USB4 ports provide seamless expansion for high-speed devices and displays up to 8K @ 60 Hz.

SupremeFX ALC1220P audio with Savitech AMP, Dolby Atmos, and S/PDIF out ensures crystal-clear gaming sound. DIY features like PCIe Q-Release Slim, M.2 Q-Latch, Q-LED, Q-Antenna, and BIOS FlashBack™ simplify installation and updates.

With Armoury Crate, Fan Xpert 4, TurboV Core, AI Overclocking, and AIDA64 Extreme, this board is an intelligent, compact beast — built for creators and gamers who want maximum performance in minimal space.

Features

• Supports Intel® Core™ Ultra Processors (Series 2) — LGA1851 socket

• 10 + 1 + 2 + 1 power stages (80 A each) with ProCool 8-pin connector

• DDR5 9066+ MT/s (OC) — 2 × DIMM dual-channel slots with AEMP III, DIMM Fit, and DIMM Fit Pro

• 2 × M.2 Slots: 1× PCIe 5.0 x4 + 1× PCIe 4.0 x4 + 4× SATA 6 Gb/s

• PCIe 5.0 x16 SafeSlot expansion with Q-Release Slim

• WiFi 7 (802.11be) + Intel® 2.5 Gb Ethernet with LANGuard

• Dual Thunderbolt™ 4 / USB4 Type-C + USB 20 Gbps support

• SupremeFX ALC1220P Audio, Savitech AMP, Dolby Atmos, S/PDIF out

• AI Advisor, AI Networking II, NPU Boost, and Asynchronous Clock

• Compact Mini-ITX form factor (17 × 17 cm) for small-form builds

• Q-Design Suite: Q-Release, Q-Latch, Q-Antenna, Q-LED, Q-Dashboard

• Comprehensive cooling: VRM heatsinks, M.2 backplates, Fan Xpert 4 control

• Armoury Crate, AIDA64 Extreme, TurboV Core, and GlideX support
