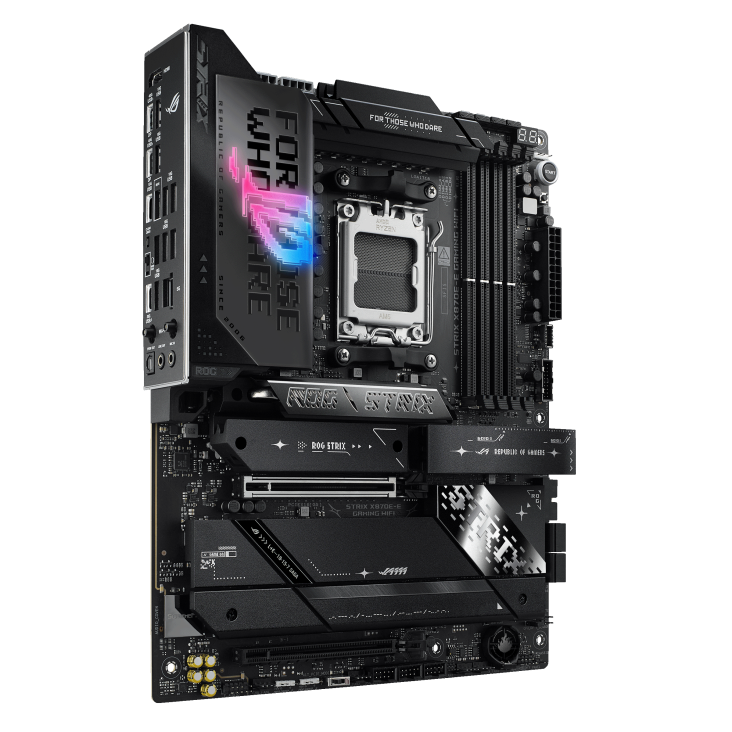

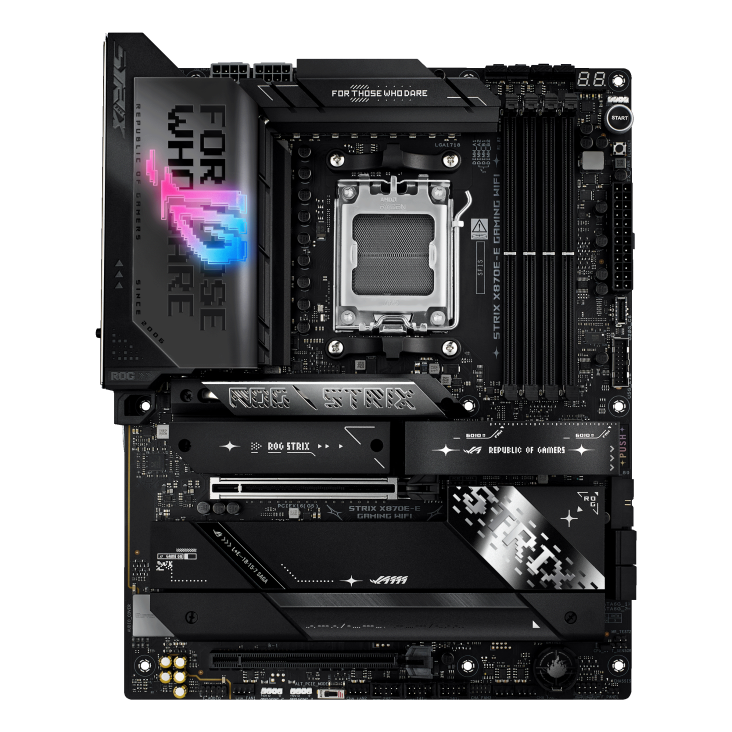

ROG STRIX X870E-E GAMING WIFI – Extreme Power & Performance
The ASUS ROG STRIX X870E-E GAMING WIFI is built for enthusiasts who demand uncompromising performance and futuristic connectivity. Designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors, this ATX motherboard pairs cutting-edge power delivery with robust cooling solutions, ensuring stable overclocking and peak efficiency. Equipped with 18+2+2 power stages rated at 110A, it delivers extreme reliability for high-performance builds.
With support for DDR5 memory up to 8400+ MT/s (OC) and ASUS-exclusive NitroPath DRAM Technology and AEMP profiles, the X870E-E sets a new benchmark for memory performance. Expansion flexibility comes with 5x M.2 slots (PCIe 5.0 and 4.0) and PCIe 5.0 SafeSlot, ensuring future-proof support for ultra-fast GPUs and NVMe storage.
ASUS AI technologies elevate user experience—AI Cache Boost accelerates LLM workflows by up to 29%, AI Overclocking tunes system performance automatically, AI Cooling II balances thermals with a single click, and AI Networking II optimizes WiFi 7 connectivity for seamless online gameplay.
The board includes WiFi 7, Realtek 5Gb Ethernet, dual USB4 ports, and USB 20Gbps, bringing next-gen bandwidth for gaming, streaming, and content creation. Premium SupremeFX audio enhances immersion, while EZ DIY features like PCIe Q-Release, M.2 Q-Latch, and BIOS Flashback™ simplify PC building.
Styled with ROG’s bold design and Aura Sync RGB, the X870E-E combines aesthetics with innovation, making it an ideal choice for hardcore gamers, overclockers, and creators who want the very best.
Features
-
Supports AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
-
18+2+2 power stages (110A) with robust VRM cooling
-
DDR5 8400+ MT/s (OC) with EXPO & AEMP support
-
5x M.2 slots (PCIe 5.0 & PCIe 4.0) + 4x SATA 6Gb/s ports
-
1x PCIe 5.0 x16 SafeSlot + 1x PCIe 4.0 x16 (x4)
-
ASUS AI Suite: AI Cache Boost, AI Overclocking, AI Cooling II, AI Networking II
-
WiFi 7 (6GHz, 320MHz, 4096 QAM) + Realtek 5Gb Ethernet
-
Dual USB4 (40Gbps), USB 20Gbps Type-C, 10x USB 10Gbps
-
SupremeFX 7.1 audio with Savitech AMP & gold-plated jacks
-
ROG EZ DIY features: Q-Latch, Q-Release, BIOS Flashback™, Pre-mounted I/O
-
Aura Sync RGB with extensive lighting effects
-
ATX form factor with ROG aesthetic & reinforced design
Specifications
| Categories | Details |
|---|---|
| Model | ROG STRIX X870E-E GAMING WIFI |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop CPUs |
| Chipset | AMD X870E |
| Memory | 4 x DIMM, DDR5, up to 256GB, up to 8400+ MT/s (OC), EXPO, AEMP, ECC/Non-ECC |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot, 1 x PCIe 4.0 x16 (x4) |
| Storage | 5 x M.2 (PCIe 5.0/4.0), 4 x SATA 6Gb/s |
| Power Design | 18+2+2 power stages (110A), Dual ProCool II connectors |
| Cooling | VRM heatsinks, M.2 heatsinks & backplate, multiple fan & pump headers |
| Networking | WiFi 7 (2×2, 6GHz, 320MHz, 6.5Gbps), Realtek 5Gb Ethernet, ASUS LANGuard |

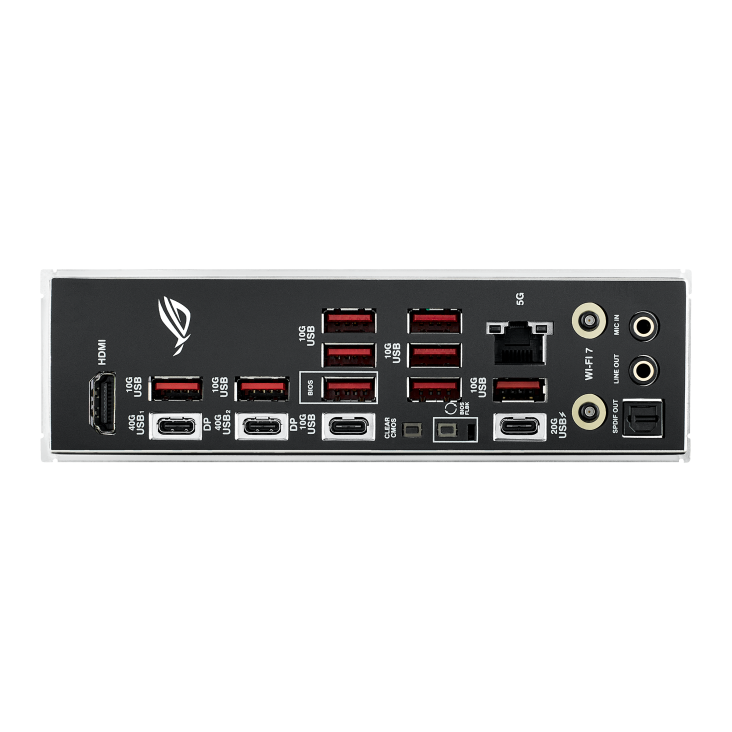

| USB (Rear I/O) | 2 x USB4 (40Gbps), 1 x USB 20Gbps Type-C (30W PD), 10 x USB 10Gbps |
| USB (Front I/O) | 1 x USB 20Gbps Type-C, 4 x USB 5Gbps, 6 x USB 2.0 |
| Graphics Output | 1 x HDMI 2.1 (4K@60Hz), USB4 DisplayPort 1.4a Alt Mode |
| Audio | ROG SupremeFX 7.1 ALC4080, Savitech AMP, S/PDIF out, gold-plated jacks |
| BIOS | 256Mb UEFI AMI BIOS, AI Overclocking, Q-Dashboard, CrashFree BIOS 3 |
| Software | Armoury Crate, Aura Sync, AIDA64 Extreme (60-day), HWiNFO, ASUS GlideX |
| Form Factor | ATX (30.5 cm x 24.4 cm) |

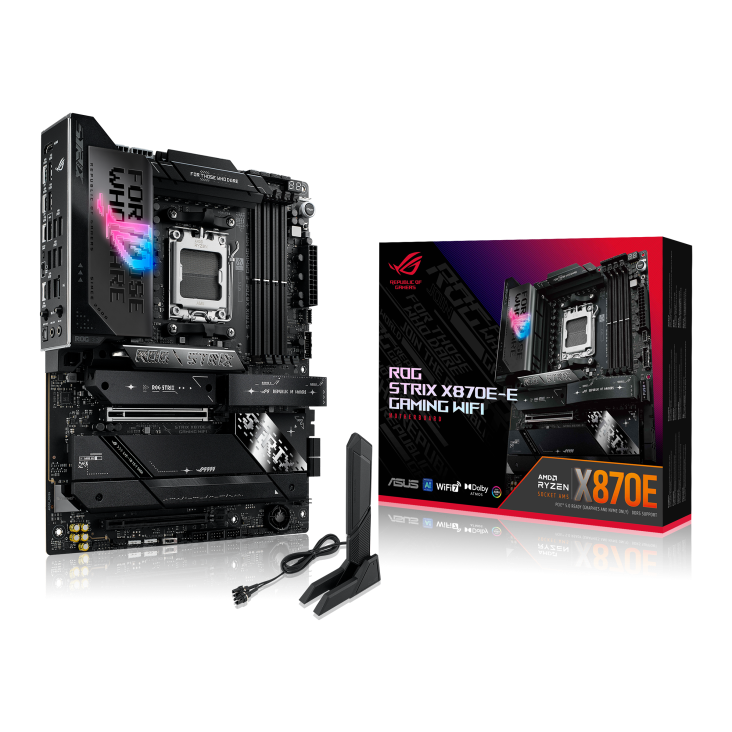

| Accessories | 2 x SATA cables, WiFi antenna, M.2 accessories, ROG stickers, manual |
| OS Support | Windows 11 64-bit |
