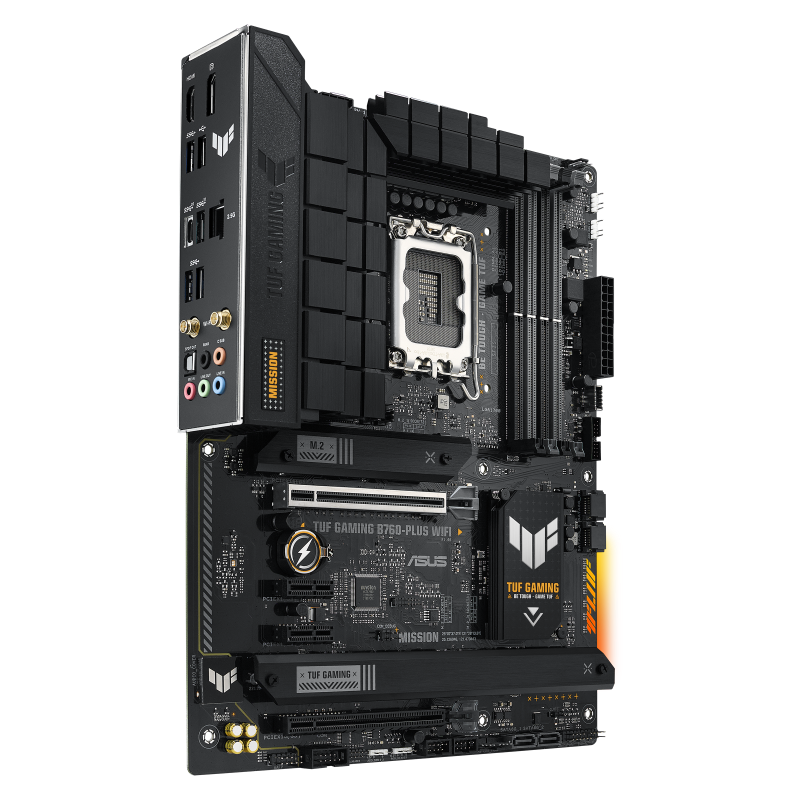

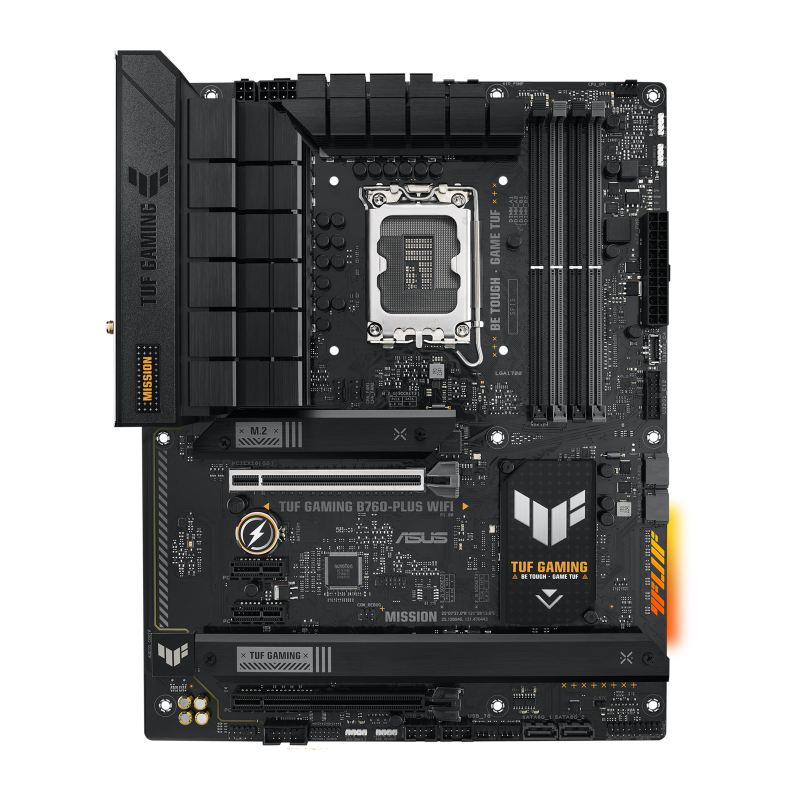

TUF GAMING B760-PLUS WIFI
TUF GAMING B760-PLUS WIFI takes all the essential elements of the latest Intel® processors and integrates them with proven reliability and gaming-grade performance. Engineered with military-grade components, upgraded power solutions, and robust cooling, it ensures rock-solid operation even under demanding conditions. This ATX motherboard supports DDR5 memory, PCIe® 5.0 graphics, and dual M.2 PCIe 4.0 slots for high-speed storage.
The design reflects the TUF GAMING ethos—sturdy, geometric, and purposeful—with embossed details symbolizing resilience. Comprehensive connectivity, including WiFi 6, Realtek 2.5Gb Ethernet, and USB 3.2 Gen 2×2 Type-C®, makes it ready for next-gen gaming and AI computing. Built with ASUS-exclusive Armoury Crate, Fan Xpert 4, and Two-Way AI Noise Cancelation, this motherboard delivers the perfect foundation for serious gamers seeking durability, efficiency, and customization.
Features
-
Intel® Socket LGA1700 supporting 14th, 13th, and 12th Gen Intel® Core™ processors
-
DDR5 Memory Support up to 192GB (7200+ MHz OC) with OptiMem II technology
-
Enhanced Power Design: 12(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
-
Next-Gen Expansion: PCIe® 5.0 x16 SafeSlot Core+
-
High-Speed Connectivity: USB 3.2 Gen 2×2 Type-C® + front-panel Type-C®
-
Networking: Realtek 2.5Gb Ethernet and WiFi 6 (802.11ax)
-
Cooling: Enlarged VRM & M.2 heatsinks, Fan Xpert 4 intelligent fan control
-
Audio: Realtek 7.1-channel HD Audio with DTS processing and premium capacitors
-
ASUS Armoury Crate: Unified control for lighting, performance, and hardware
-
Protection: SafeSlot Core+, SafeDIMM, ESD Guards, TUF LANGuard, and stainless steel I/O panel
-
Aesthetic Design: Embossed TUF nameplate and geometric heatspreaders
-
Compatibility: Part of the TUF Gaming Alliance for guaranteed component compatibility
Specifications
| Categories | Details |
|---|---|
| Model | TUF GAMING B760-PLUS WIFI |
| CPU Support | Intel® Socket LGA1700 for 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold & Celeron® |
| Chipset | Intel® B760 |
| Memory | 4 × DIMM DDR5 up to 192GB, 7200+ MHz (OC), Dual Channel, OptiMem II |
| Graphics Output | 1 × HDMI 2.1, 1 × DisplayPort 1.4 (4K@60Hz) |
| Expansion Slots | 1 × PCIe 5.0 x16, 1 × PCIe 3.0 x16 (x4 mode), 2 × PCIe 3.0 x1 |
| Storage | 3 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s (supports RAID 0/1/5/10) |
| Networking | 1 × Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless & Bluetooth | WiFi 6 (802.11 a/b/g/n/ac/ax), Bluetooth® v5.2 |

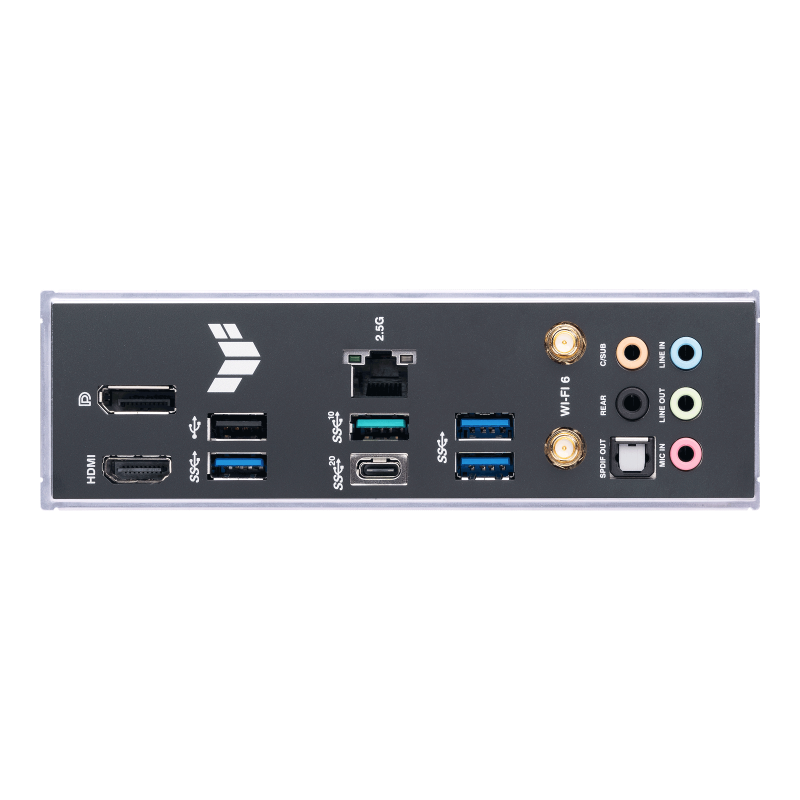

| USB (Rear I/O) | 1 × USB 3.2 Gen 2×2 Type-C®, 1 × USB 3.2 Gen 2 Type-A, 3 × USB 3.2 Gen 1 Type-A, 1 × USB 2.0 |
| USB (Front I/O) | 1 × USB 3.2 Gen 2 Type-C®, 1 × USB 3.2 Gen 1 header (2 ports), 2 × USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 HD Audio CODEC, DTS Audio Processing, optical S/PDIF out |
| Internal I/O | 3 × M.2 slots, 4 × SATA 6Gb/s, 8+4 pin ProCool connectors, multiple RGB headers |
| Cooling Headers | 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fans |
| Special Features | Armoury Crate, Fan Xpert 4, Two-Way AI Noise Cancelation, AI Suite 3, DIGI+ VRM |
| TUF Protection | SafeSlot Core+, SafeDIMM, ESD Guards, TUF LANGuard, Stainless-Steel I/O |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |

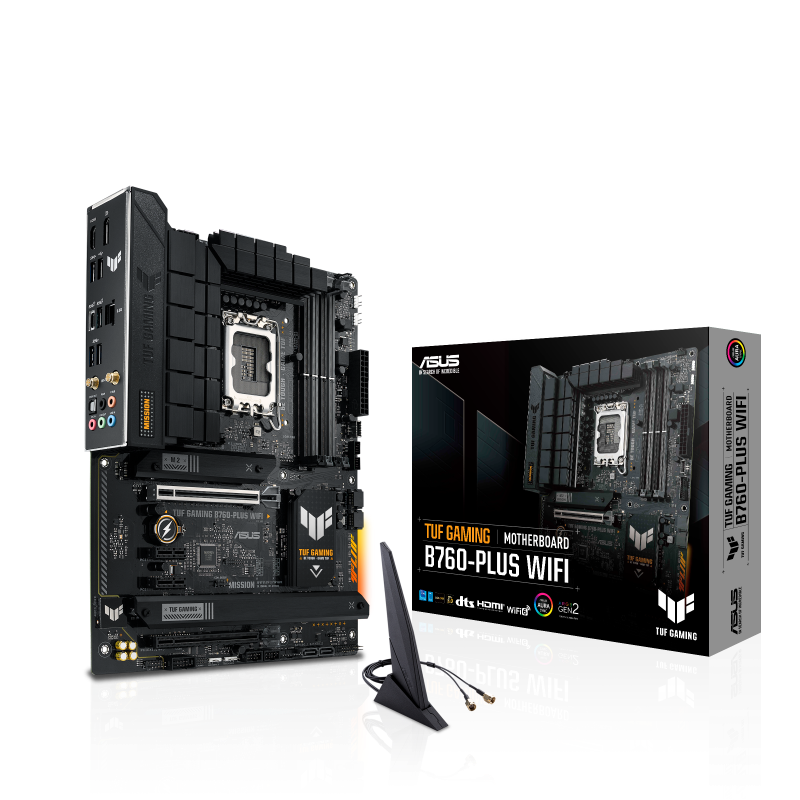

| Accessories | 2 × SATA cables, WiFi antenna, M.2 screws, TUF sticker, User guide |
| Operating System | Windows® 11 / 10 (64-bit) |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
