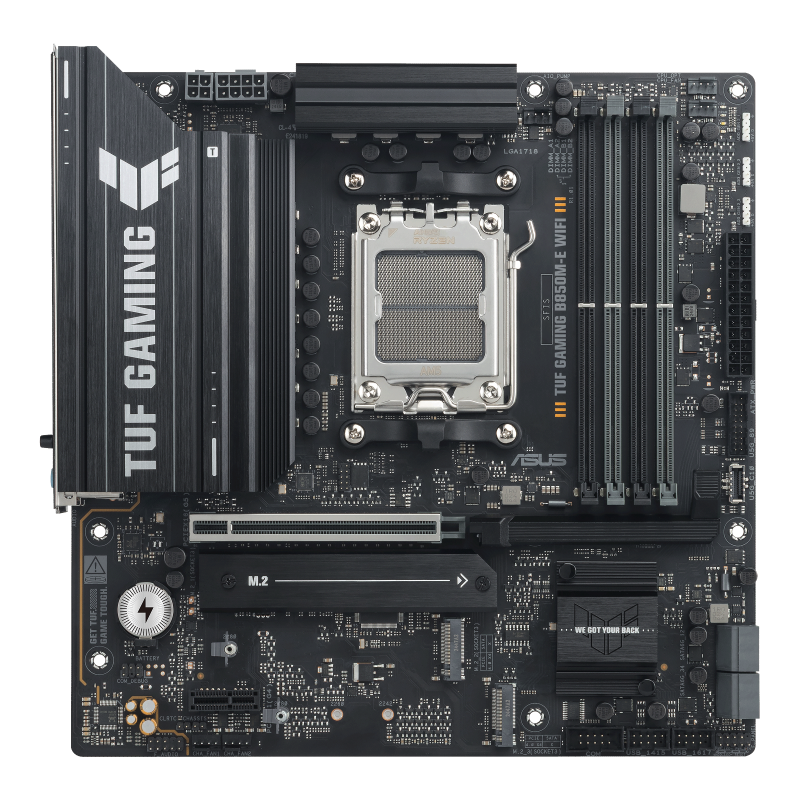

ASUS TUF GAMING B850M-E WIFI – Built for Endurance and Performance
The ASUS TUF GAMING B850M-E WIFI combines the latest AMD platform capabilities with TUF durability and gaming-focused enhancements. Designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors, it supports high-speed DDR5 memory up to 8000+ MT/s and PCIe® 5.0 for next-gen graphics and storage.
Engineered with an 8+2+1 power stage design, military-grade TUF components, and an optimized cooling system with enlarged VRM and M.2 heatsinks, this motherboard ensures stable and efficient operation even during marathon gaming sessions.
Connectivity is cutting-edge, featuring WiFi 6E with ASUS Q-Antenna, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-C®, and front-panel USB 5Gbps Type-C®. DIY-friendly features like PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Pre-mounted I/O shield, and BIOS FlashBack™ simplify builds and upgrades.
For immersive gaming, the TUF GAMING B850M-E WIFI integrates Realtek 7.1 surround sound with DTS Audio Processing and customizable Aura Sync RGB lighting. Backed by ASUS AI Cache Boost, Armoury Crate, and ASUS DriverHub, this board blends performance, endurance, and customization into a compact micro-ATX form factor.
Features
-
AMD Socket AM5 – Supports Ryzen™ 9000, 8000, and 7000 Series CPUs
-
8+2+1 power stages with enlarged VRM heatsinks for stability
-
Dual-channel DDR5 support up to 256GB and 8000+ MT/s (OC)
-
PCIe® 5.0 x16 SafeSlot for GPUs + 3× M.2 slots (PCIe 5.0/4.0)
-
WiFi 6E and Realtek 2.5Gb Ethernet with TUF LANGuard
-
Rear USB 10Gbps Type-C® + front USB 5Gbps Type-C®
-
Realtek 7.1 surround sound with DTS Audio Processing
-
ASUS-exclusive AI Cache Boost for optimized LLM performance
-
DIY-friendly: PCIe Q-Release, M.2 Q-Latch, Q-Antenna, Q-LED, BIOS FlashBack™
-
TUF durability: SafeSlot, SafeDIMM, stainless steel I/O shield, ESD guards
Specifications
| Categories | Details |
|---|---|
| Model | ASUS TUF GAMING B850M-E WIFI |
| CPU Support | AMD Socket AM5 – Ryzen™ 9000, 8000, 7000 Series |
| Chipset | AMD B850 |
| Memory | 4× DDR5 DIMM, up to 256GB, 8000+ MT/s (OC), ECC/Non-ECC, Dual Channel, AMD EXPO™, AEMP |
| Graphics Outputs | 2× DisplayPort 1.4 (8K@60Hz), 1× HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 1× PCIe 5.0 x16 SafeSlot, 1× PCIe 4.0 x1 |
| Storage | 3× M.2 (1× PCIe 5.0, 2× PCIe 4.0), 4× SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000) |
| Networking | Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless | WiFi 6E (2×2, 2.4/5/6GHz), Bluetooth® 5.3, ASUS Q-Antenna |
| USB (Rear I/O) | 1× USB Type-C® 10Gbps, 1× USB Type-A 10Gbps, 2× USB Type-A 5Gbps, 4× USB 2.0 |
| USB (Front I/O) | 1× USB Type-C® 5Gbps, 1× USB 5Gbps header (2 ports), 2× USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound CODEC, DTS Audio Processing, premium capacitors, shielding |

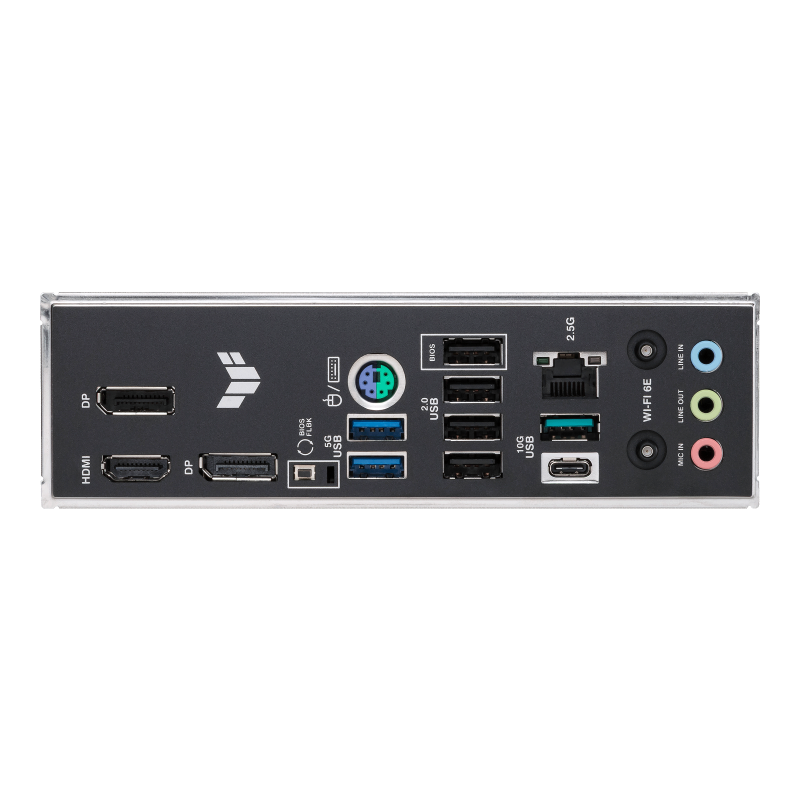

| Back Panel I/O | 2× DisplayPort, 1× HDMI, 1× USB-C 10Gbps, 1× USB-A 10Gbps, 2× USB-A 5Gbps, 4× USB-A 2.0, WiFi, 2.5GbE, 3× audio jacks, PS/2, BIOS FlashBack™ |
| Internal Headers | CPU Fan, CPU OPT, AIO Pump, 2× Chassis Fan, 3× ARGB Gen 2, TPM, Clear CMOS, COM, Front Panel, Audio |
| Power Connectors | 24-pin ATX, 8-pin CPU, 4-pin CPU |
| Form Factor | micro-ATX (24.4 × 24.4 cm) |
| Operating System | Windows® 11 (22H2+), Windows® 10 64-bit (21H2+) |
| Accessories | 2× SATA cables, WiFi Q-Antenna, TUF sticker, M.2 rubber + screws, Quick Start Guide |
