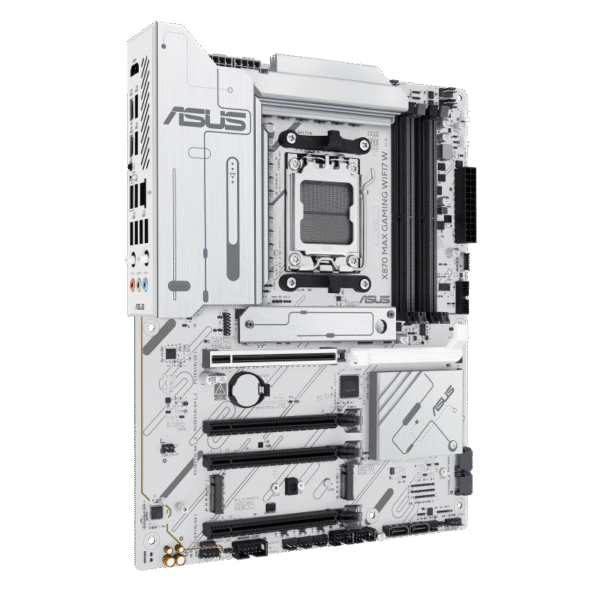

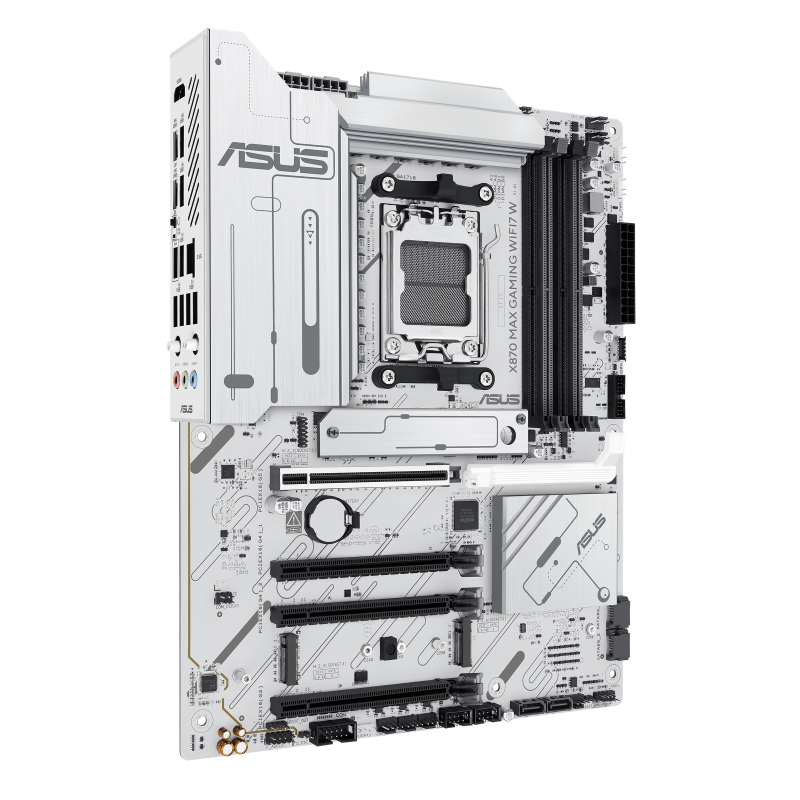

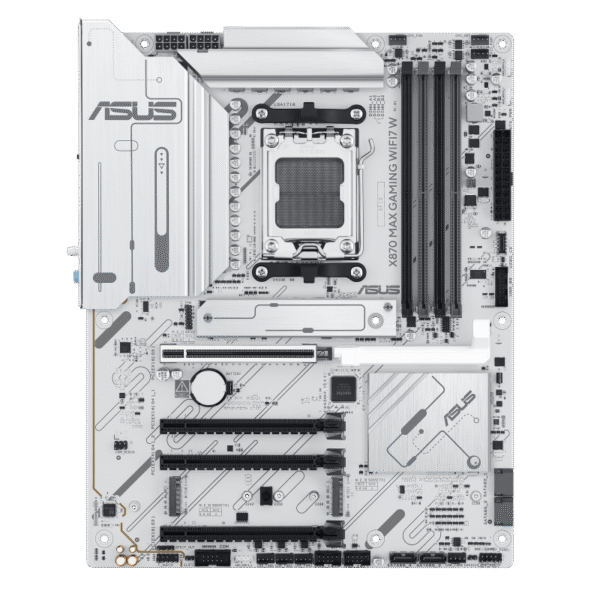

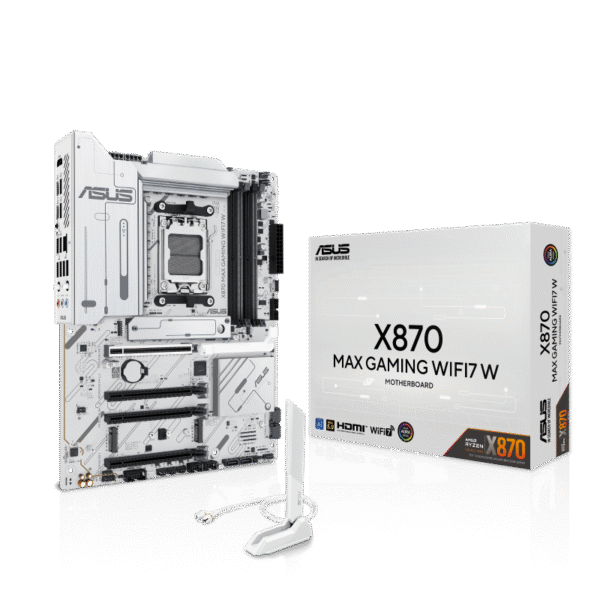

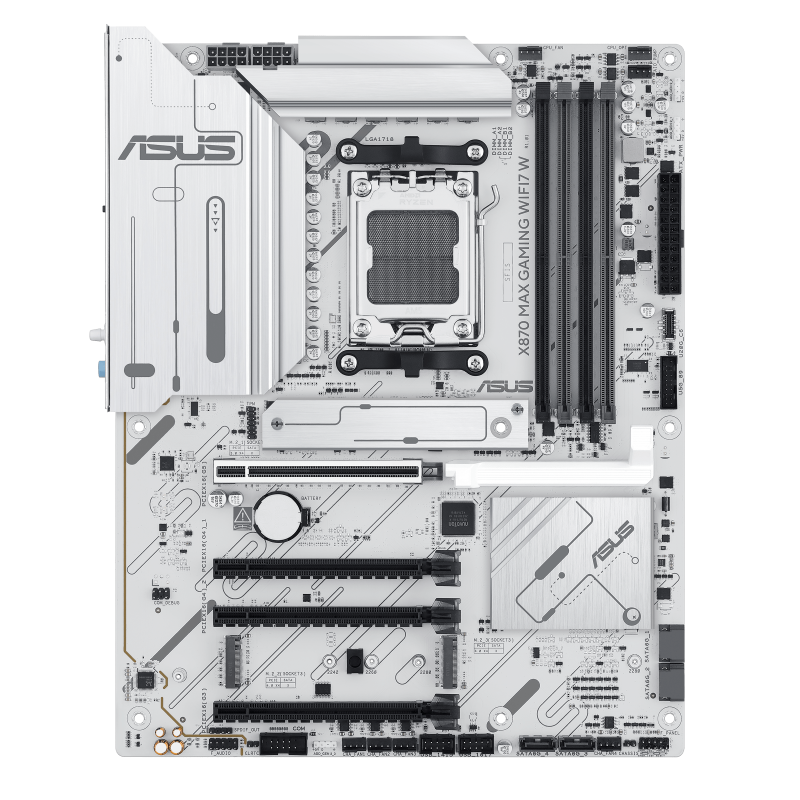

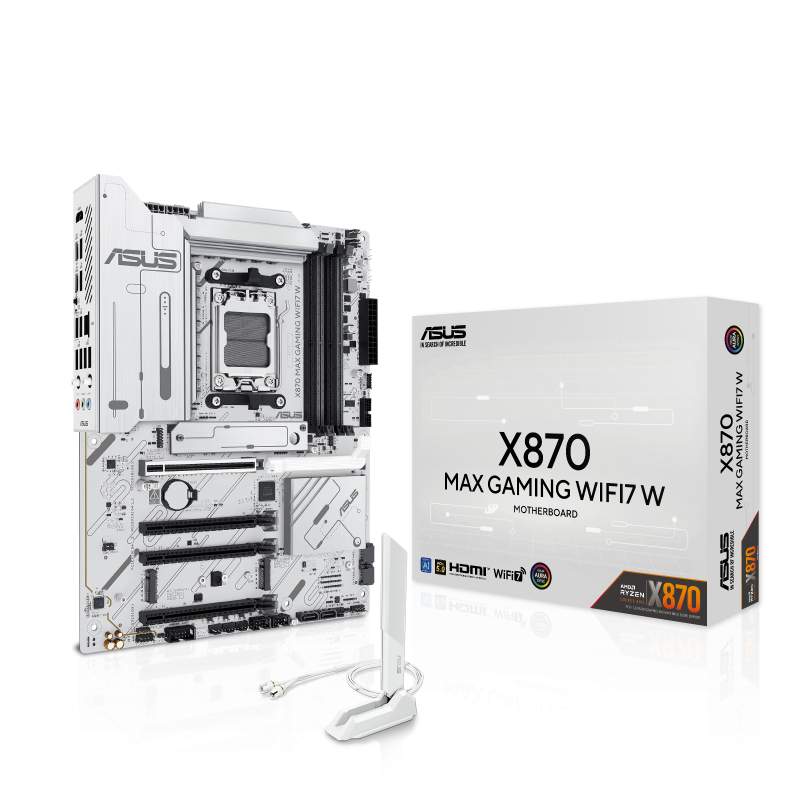

ASUS X870 MAX GAMING WIFI7 W
Built for next-generation performance, the ASUS X870 MAX GAMING WIFI7 W empowers creators, gamers, and AI enthusiasts with robust power delivery, extensive cooling, and AI-driven system optimization. Powered by the AMD X870 chipset and AM5 socket, it supports Ryzen™ 9000, 8000, and 7000 Series processors with DDR5 memory over 8000 MT/s and PCIe 5.0 expansion for graphics and NVMe storage.
The board integrates 12+2+1 power stages (80A), an 8-layer PCB, ProCool 8+8 pin connectors, and Digi+ VRM control for stable overclocking. ASUS-exclusive AI features such as AI Cache Boost, AI Advisor, and AI Cooling II optimize LLM workloads, performance tuning, and thermal control. Storage flexibility is ensured with three M.2 slots (PCIe 5.0 and PCIe 4.0) and four SATA ports, supporting AMD RAIDXpert2.
Connectivity highlights include dual USB4® 40Gbps ports, front USB 20Gbps Type-C® with power delivery, Wi-Fi 7 with Q-Antenna, and 2.5Gb Ethernet. The board is DIY-friendly with Q-Release, Q-Antenna, BIOS FlashBack™, and a pre-mounted I/O shield. Aura Sync with Gen 2 ARGB headers adds extensive RGB personalization.
Designed for Advanced AI PC-ready builds, the ASUS X870 MAX GAMING WIFI7 W provides reliability, speed, and adaptability for gaming, AI workloads, and content creation.
Features
AM5 Socket supporting AMD Ryzen™ 9000 / 8000 / 7000 Series CPUs
Powerful VRM: 12+2+1 DrMOS (80A) with enlarged VRM heatsinks, Digi+ VRM control, ProCool connectors
AI Solutions: AI Cache Boost (up to 29% faster LLM performance), AI Advisor, AI Cooling II
Memory Performance: DDR5 support up to 8000+ MT/s, AMD EXPO™, ASUS AEMP profiles
Expansion: 1 x PCIe 5.0 x16 SafeSlot (Q-Release), additional PCIe 4.0/3.0 slots
Storage: 3 x M.2 slots (PCIe 5.0 + PCIe 4.0), 4 x SATA 6Gb/s, AMD RAIDXpert2 support
Networking: Wi-Fi 7 with ASUS Q-Antenna, Bluetooth® v5.4, Realtek 2.5Gb Ethernet with LANGuard
USB Connectivity: Dual USB4® 40Gbps (Type-C), USB 20Gbps front Type-C, multiple USB 10Gbps/5Gbps/2.0 ports
Audio: Realtek HD 7.1 Surround Codec, premium capacitors, audio shielding, DTS enhancements
Cooling: VRM & chipset heatsinks, flexible M.2 heatsinks, multiple PWM/DC fan headers, Fan Xpert 4 with AI Cooling II
Customization: Aura Sync RGB, 3 x ARGB Gen 2 headers, Armoury Crate with Aura Creator
DIY Friendly: PCIe Slot Q-Release, Q-LED Core, Q-DIMM, Pre-mounted I/O Shield, BIOS FlashBack™
Durability: ASUS 5X Protection III, stainless-steel I/O, SafeSlot reinforcement
Specifications
| Categories | Details |
|---|---|
| CPU Support | AMD Socket AM5, Ryzen™ 9000 / 8000 / 7000 Series processors |
| Chipset | AMD X870 |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Memory | 4 x DDR5 DIMMs, up to 256GB, 8000+ MT/s (OC), EXPO™, AEMP, dual channel |
| Power Design | 12 (80A Vcore) + 2 (80A SOC) + 1 (80A Misc) DrMOS power stages, Digi+ VRM, 8-layer PCB |
| Graphics | 1 x HDMI 2.1 (4K@60Hz), 2 x USB4® Type-C display outputs (DP 1.4a, 4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot, 2 x PCIe 4.0 x16 (x1 mode), 1 x PCIe 3.0 x16 (x1 mode) |
| Storage | 3 x M.2 (1 x PCIe 5.0, 2 x PCIe 4.0), 4 x SATA 6Gb/s, RAID 0/1/5/10 (Ryzen 9000) |
| Networking | Realtek 2.5Gb Ethernet with LANGuard, Wi-Fi 7 (2×2, 2.9Gbps), Bluetooth® v5.4 |

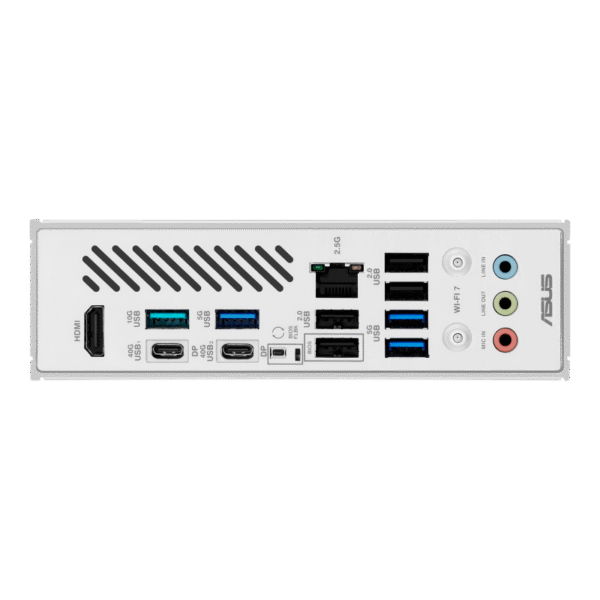

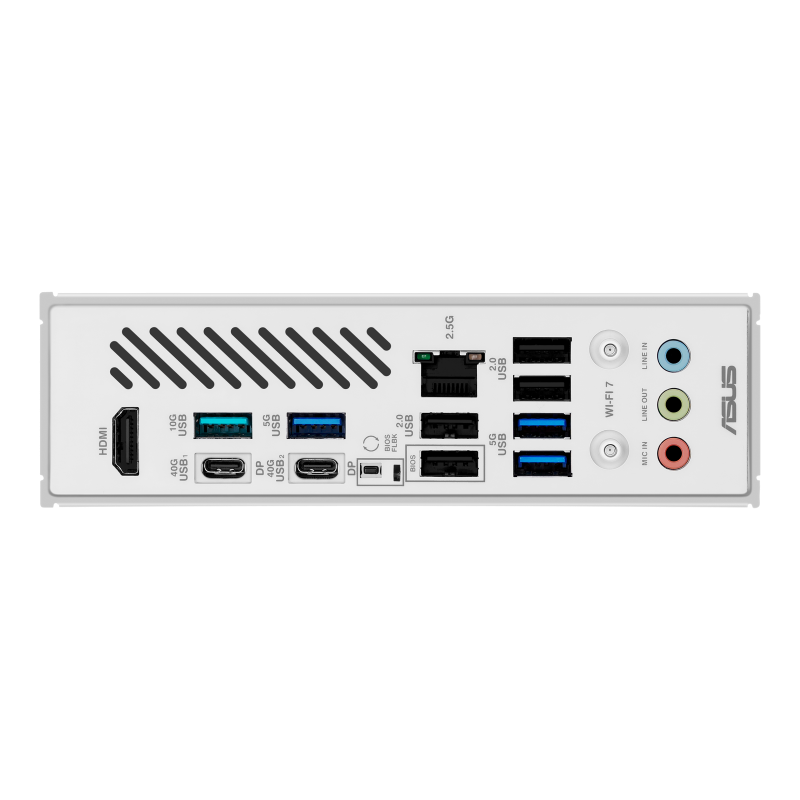

| USB (Rear I/O) | 2 x USB4® 40Gbps (Type-C), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 4 x USB 2.0 |
| USB (Front I/O) | 1 x USB 20Gbps Type-C, 2 x USB 5Gbps, 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround HD Codec, 24-bit/192 kHz playback, premium capacitors, DTS Audio |
| Cooling Headers | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fans |
| Internal I/O | 3 x ARGB Gen 2 headers, Clear CMOS, TPM, COM, S/PDIF Out, Chassis Intrusion |
| Special Features | AI Cache Boost, AI Advisor, AI Cooling II, Armoury Crate, Fan Xpert 4, Aura Sync RGB |
| Protection | ASUS 5X Protection III, SafeSlot, Stainless Steel I/O, Overvoltage protection |
| DIY Features | PCIe Q-Release, Q-Antenna, Q-DIMM, Q-LED Core, BIOS FlashBack™, Pre-mounted I/O Shield |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Accessories | 2 x SATA cables, Wi-Fi Q-Antenna, M.2 screws, M.2 rubber kit, Quick start guide |
| Operating System | Windows 11 |
| Software | Armoury Crate, AI Advisor, DriverHub, GlideX, Fan Xpert 4, TurboV Core, ASUS CPU-Z, Norton 360 (trial), WinRAR (trial) |
