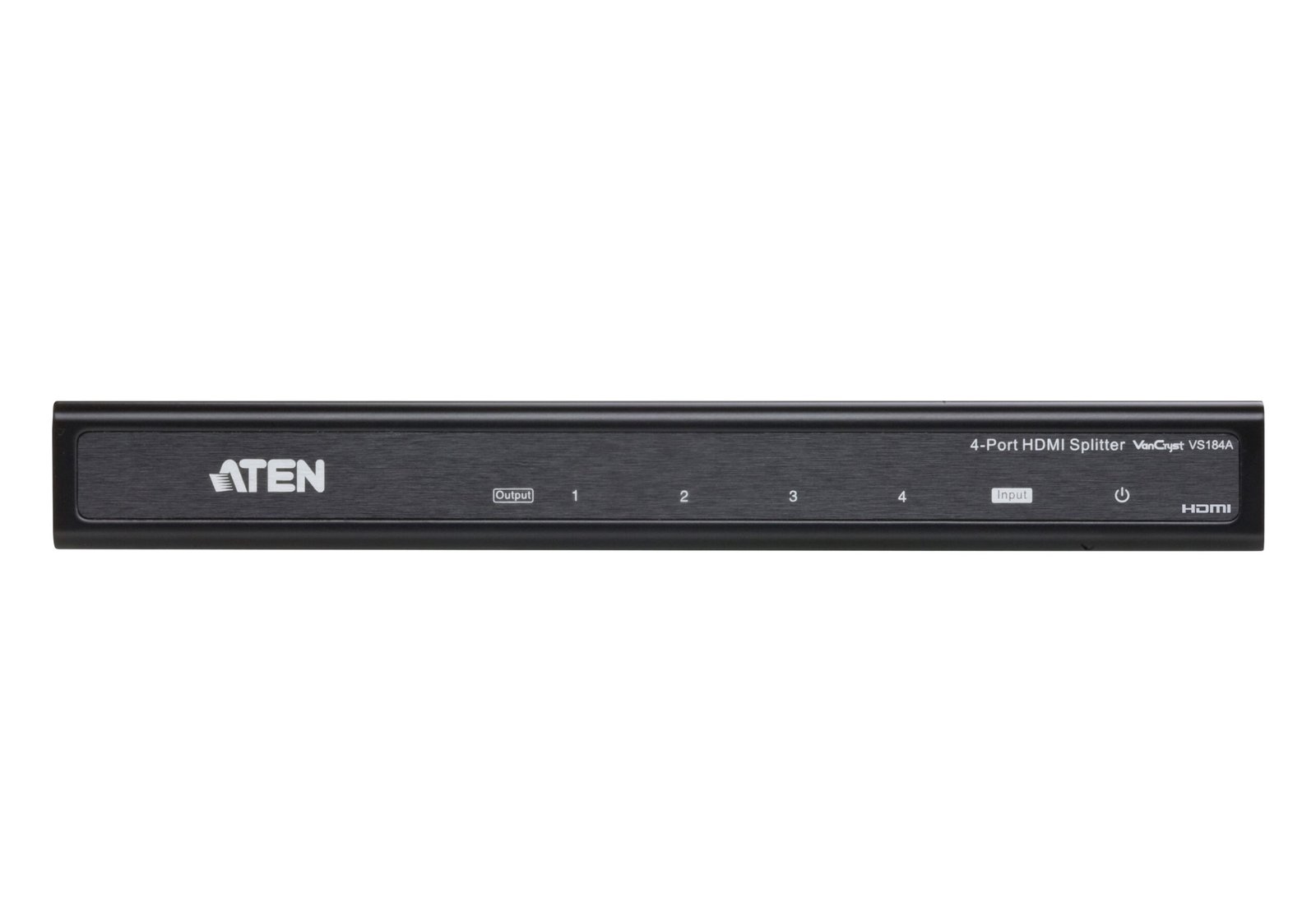

ATEN VS184A 4-Port HDMI Splitter 4K @ 60Hz Ultra HD, HDR, HDCP 2.2 Support

Name: ATEN VS184A 4-Port HDMI Splitter 4K @ 60Hz Ultra HD, HDR, HDCP 2.2 Support
SKU: VS184A-AT-E

Brand :

Sku: VS184A-AT-E

Available in stock

Features

Distribute one HDMI source to four displays with the ATEN VS184A. Supports 4K @ 60Hz, HDR, 3D, and HDCP 2.2 for crystal-clear Ultra HD video across multiple screens.

Compare Wishlist

EAN: 4710423779938 Category: HDMI Splitters & Extenders Brand: ATEN

Description
Reviews (0)

Description

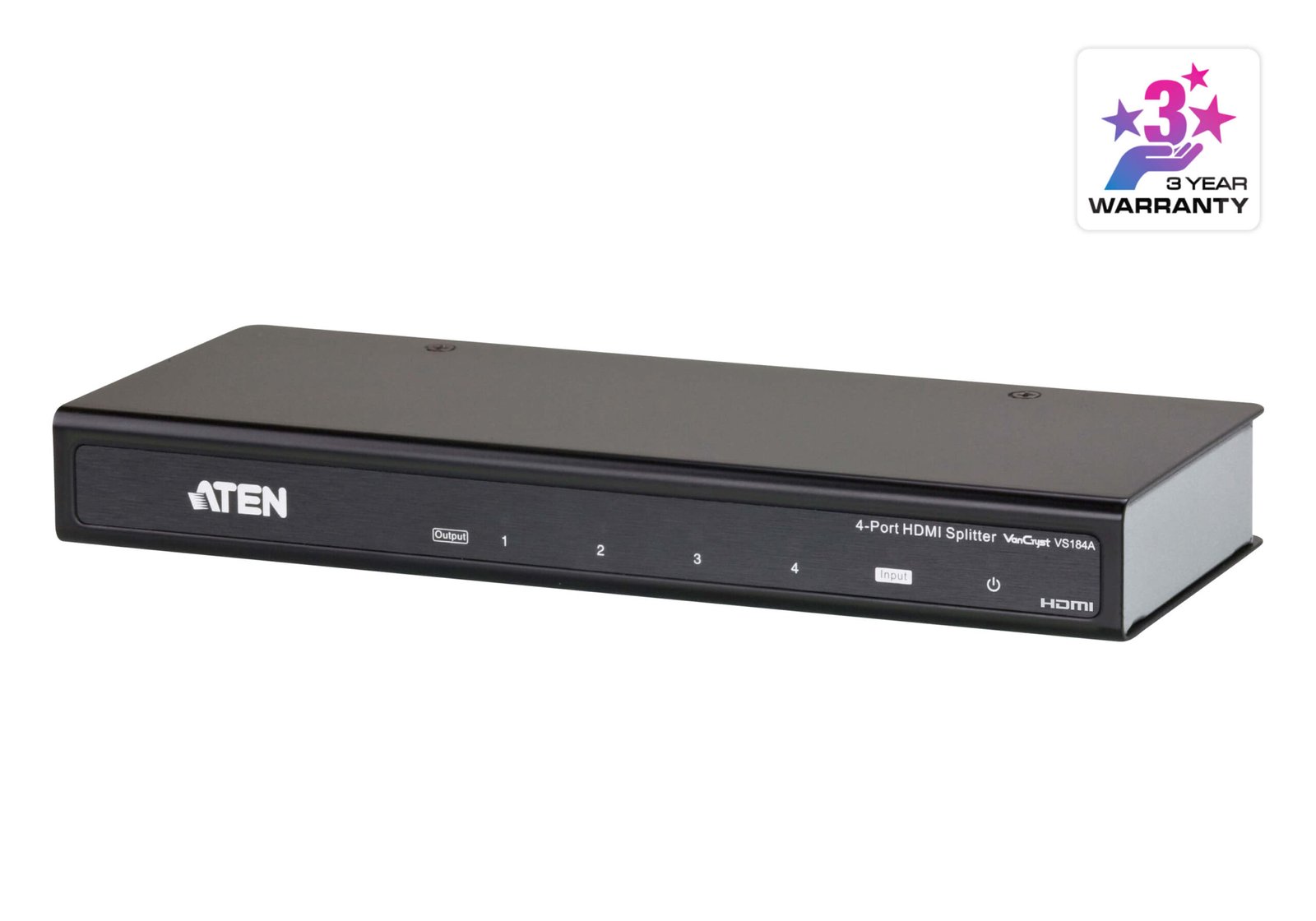

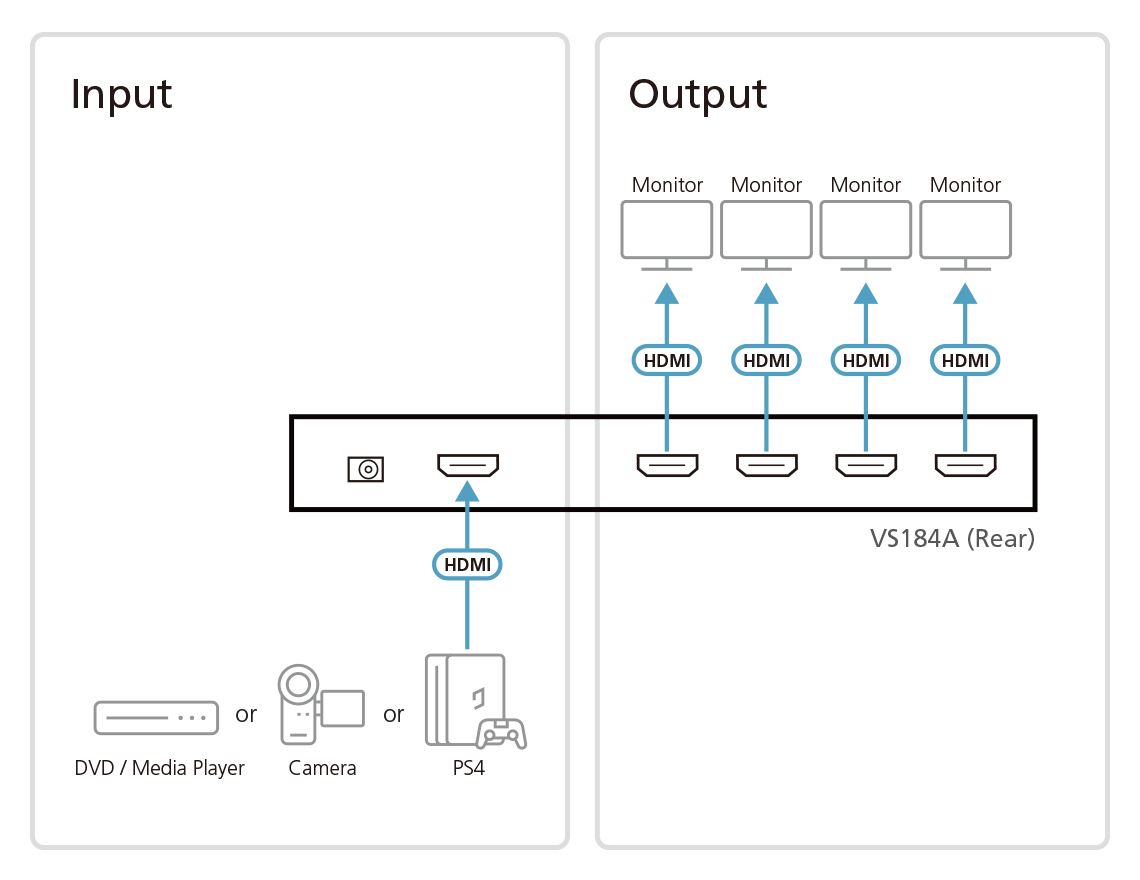

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

FEATURES

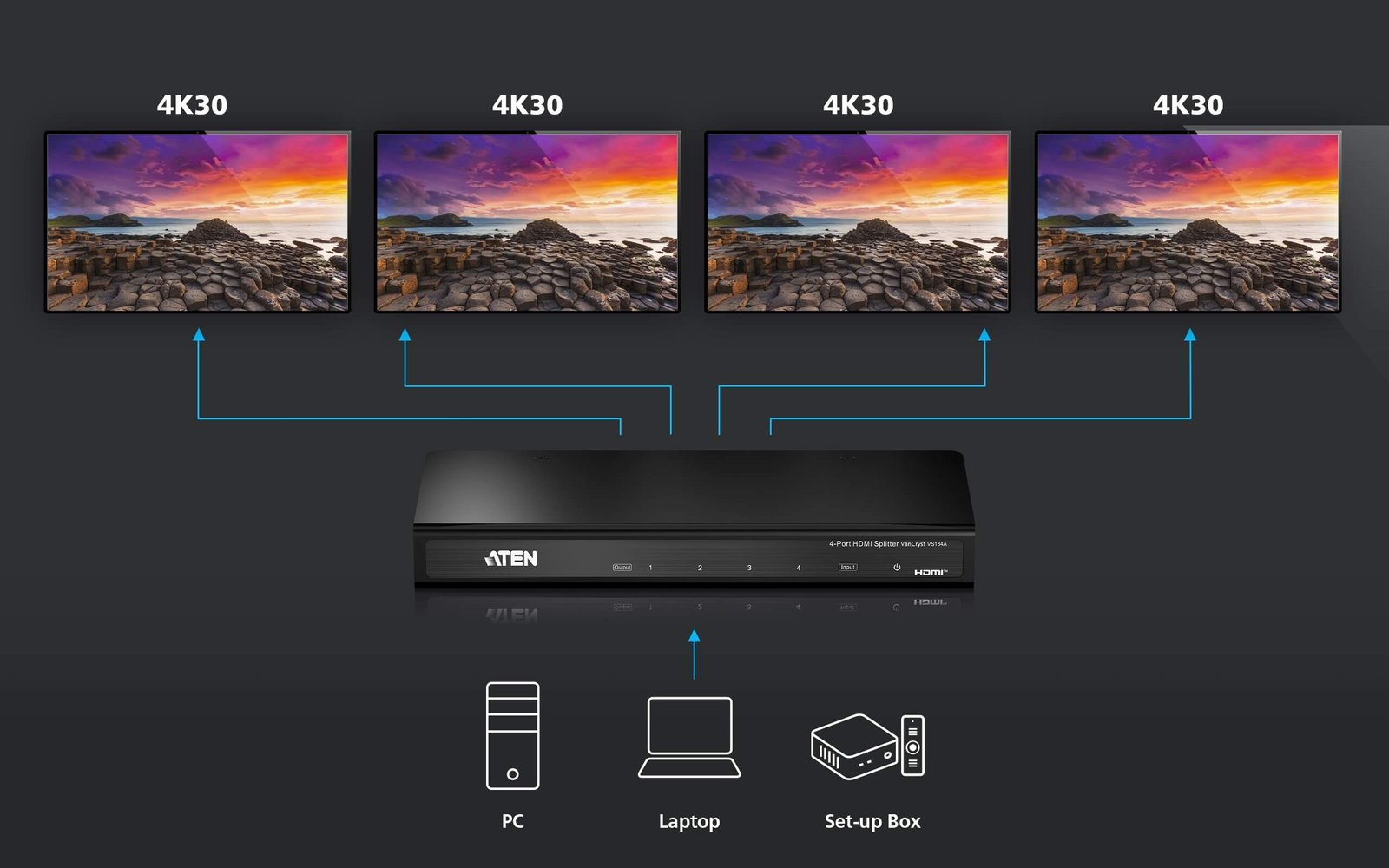

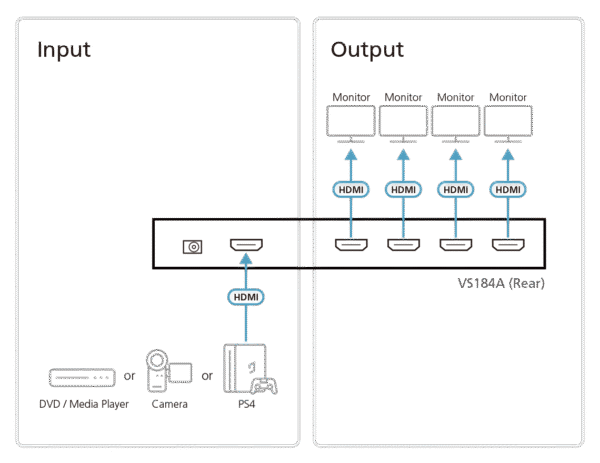

Connects one HDMI source to four HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP Compatible
Supports resolutions of up to Ultra HD 4k x 2k
Supports Dolby True HD and DTS HD Master Audio
Long distance transmission – up to 15 m (24 AWG)
Supports max. data rate of 10.2 Gbps
Plug-and-play – no software installation required

SPECIFICATIONS

VIDEO INPUT

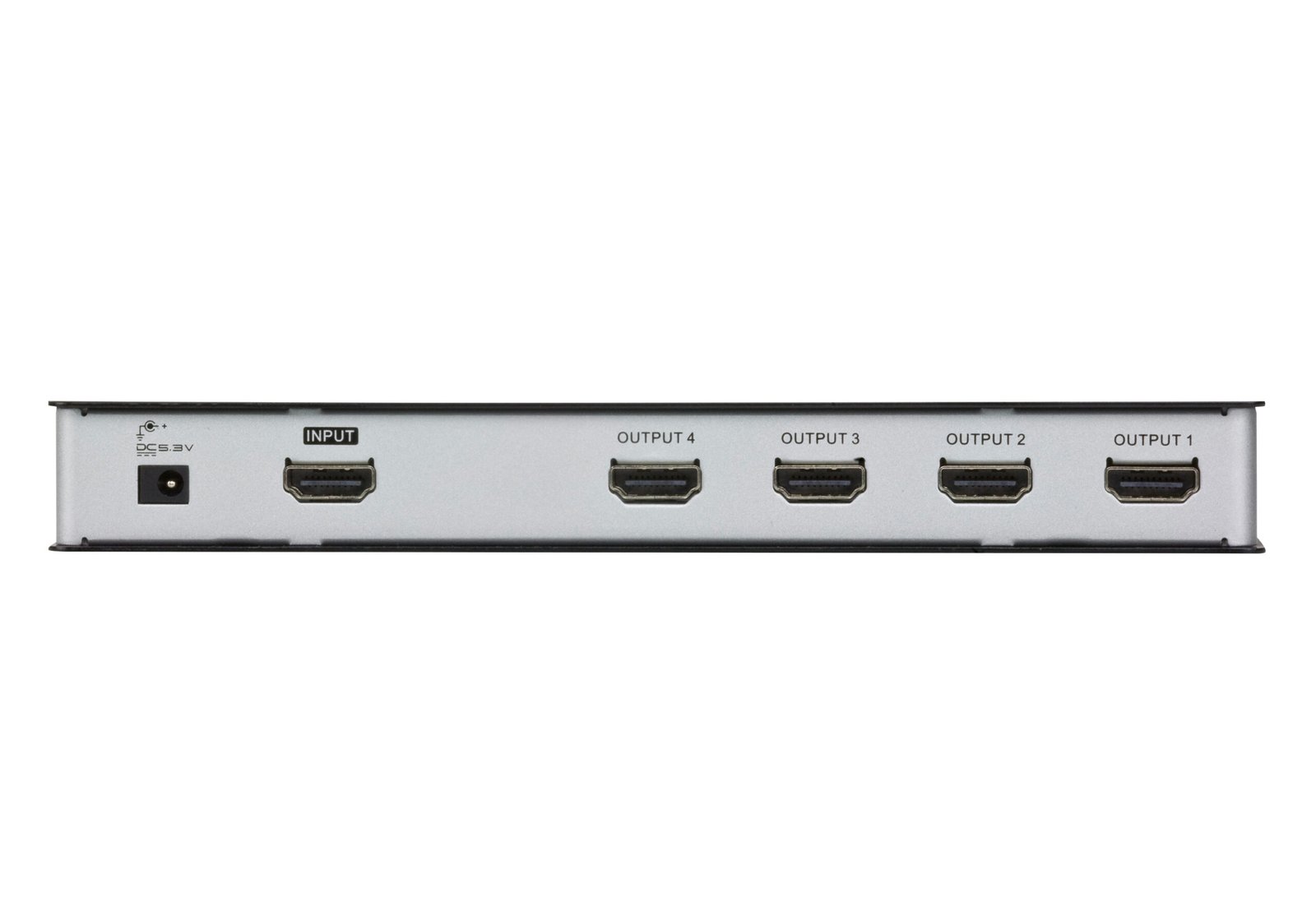

Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3m @3840×2160@30Hz (4:4:4)
VIDEO OUPUT
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15m @3840×2160@30Hz (4:4:4)
VIDEO
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K); HDCP Compatible
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
AUDIO
Input	1 x HDMI Type A Female (Black)
Output	4 x HDMI Type A Female (Black)
CONNECTORS
Power	1 x DC Jack
Power Consumption	DC5.3V:6.02W:28BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
ENVIRONMENTAL
Operating Temperature	0-50 °C
Storage Temperature	-20 – 60°C
Humidity	0 – 80% RH, Non-Condensing
PHYSICAL PROPERTIES
Housing	Metal
Weight	0.47 kg ( 1.04 lb )
Dimensions (L x W x H)	20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)
Carton Lot	20 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
