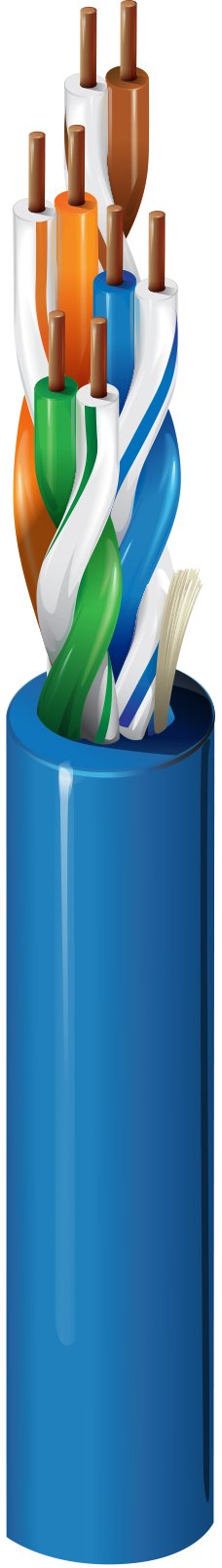

The Belden YJ75088 is a premium-grade 305-meter Cat 6A F/UTP network cable, engineered to support 10 Gigabit Ethernet with minimal interference. Its shielded twisted pair design, 23AWG solid copper conductors, and LSZH jacket ensure reliable high-speed data transmission, even in electrically noisy or industrial environments.
Encased in dual LSZH jackets and reinforced with SWA (Steel Wire Armouring), this cable offers superior durability and fire safetyperfect for backbone networks, server rooms, and long-run installations requiring top-tier performance and protection.
FEATURES
- 305m Factory Reel – Ideal for large-scale installations and structured cabling systems
- Cat 6A F/UTP Rated – Delivers up to 10Gbps data transfer over long distances
- 23AWG Solid Copper – Ensures low attenuation and strong signal quality
- Dual LSZH Jacket – Inner and outer LSZH layers for superior flame resistance and low smoke output
- Steel Wire Armouring (SWA) – Enhances mechanical protection in tough environments
- Shielded Twisted Pairs – Reduces EMI/RFI for cleaner transmission
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | YJ75088 |
| Cable Type | Cat 6A F/UTP (Foiled Twisted Pair) |
| Length | 305 meters (1000 feet) reel |
| Conductor | 4 Pair, 23 AWG Solid Bare Copper |
| Shielding | Overall Foil (F/UTP) |
| Jacket | LSZH Inner and Outer Jackets |
| Armour | Steel Wire Armoured (SWA) |
| Data Rate | 10 Gbps Ethernet |
| Bandwidth | Up to 500 MHz |
| Compliance | ISO/IEC 11801 Class EA, EN 50173, ANSI/TIA-568.2-D |
| Fire Rating | LSZH Low Smoke Zero Halogen |
| Outer Diameter | Approx. 9.0 mm |
| Color | Gray (standard) |
