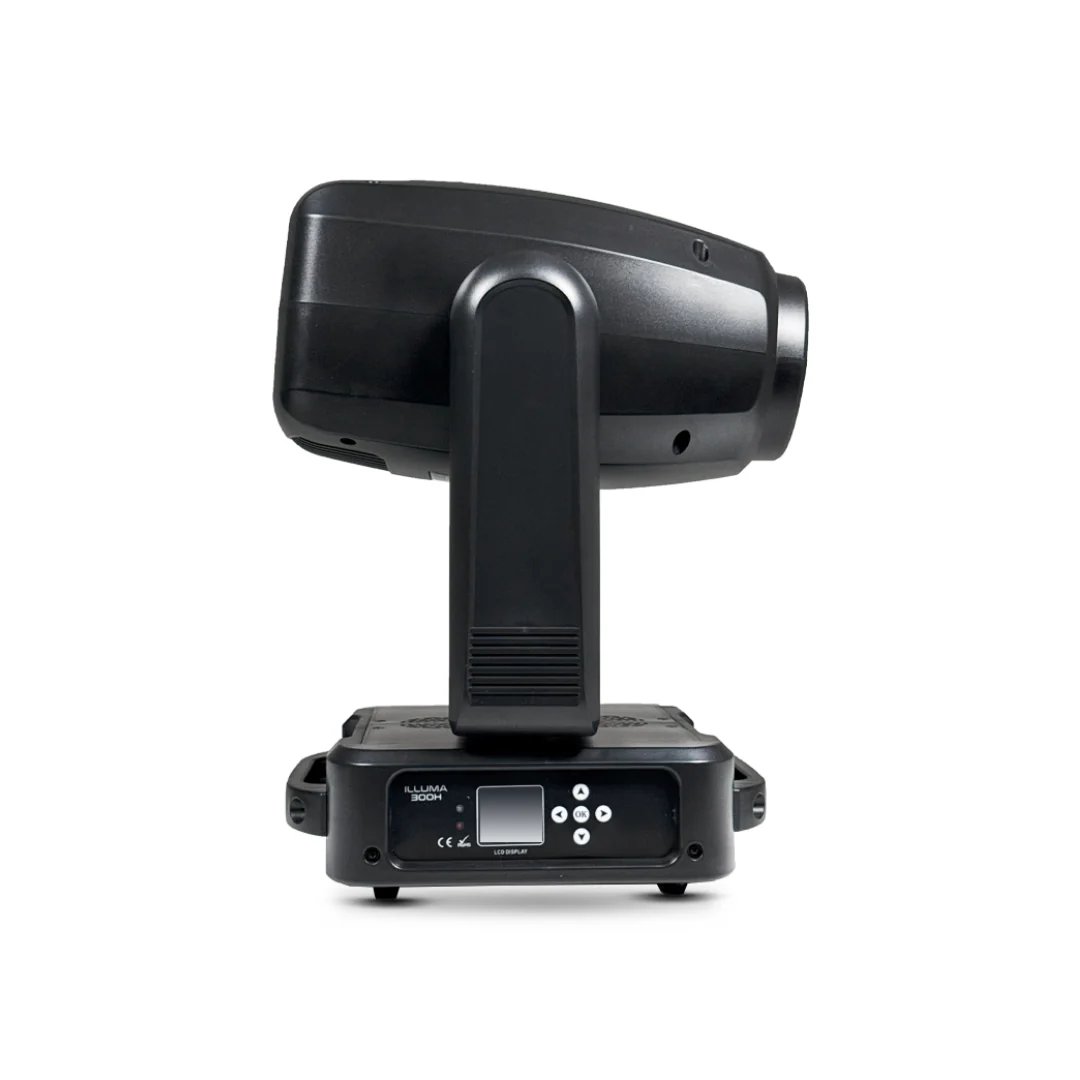

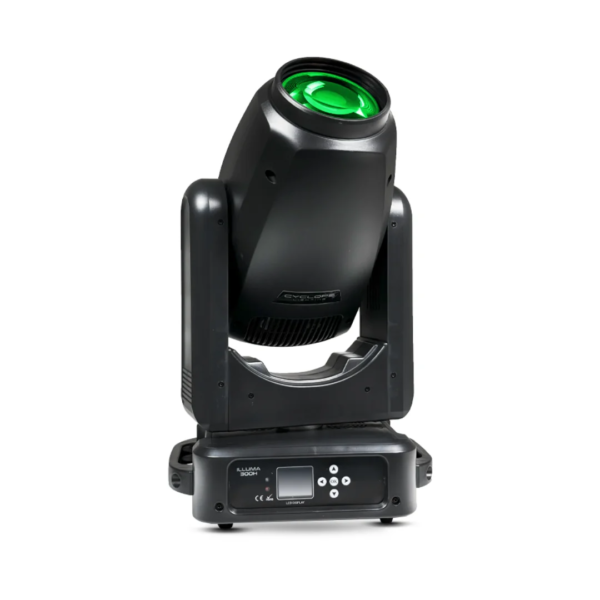

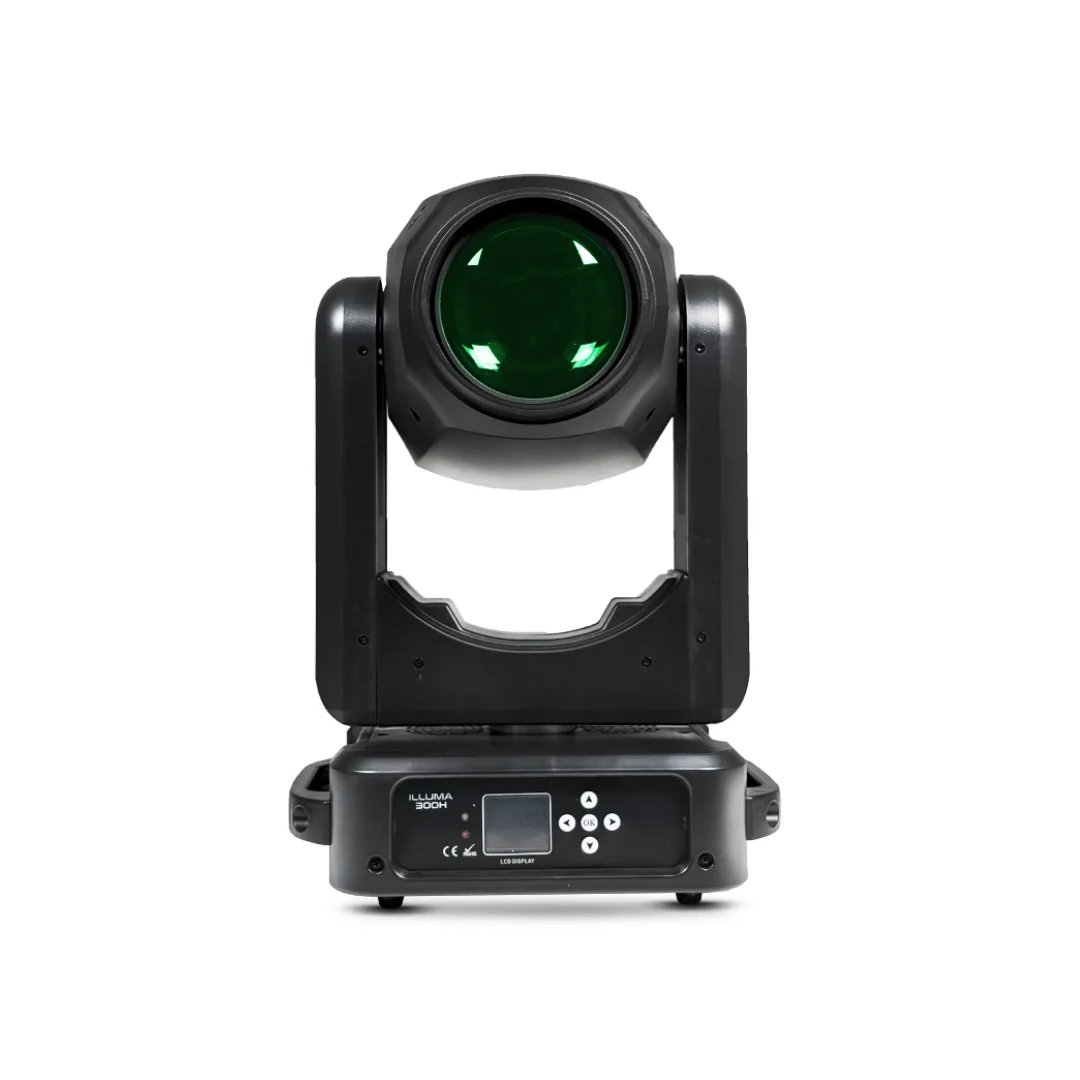

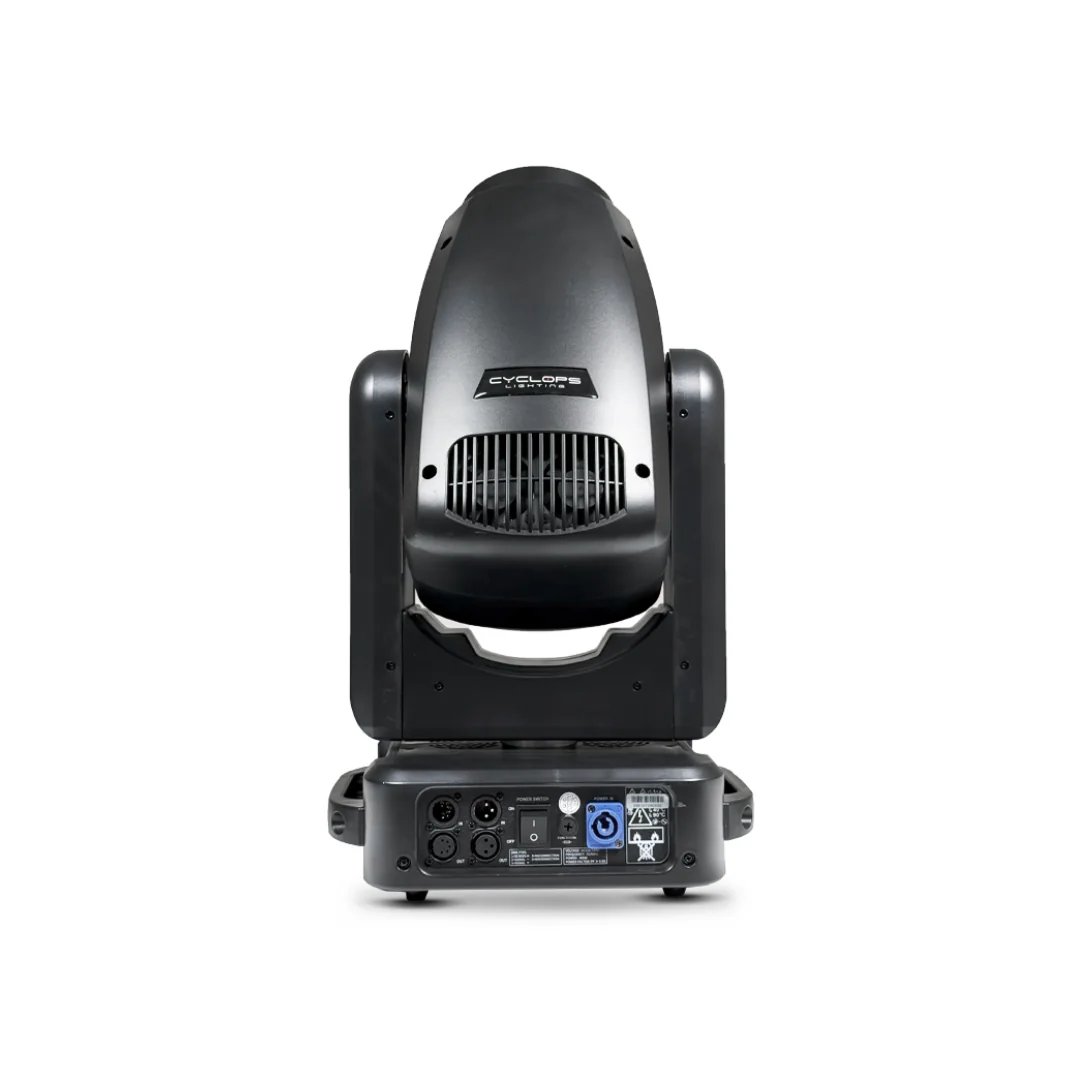

ILLUMA 300H is a versatile LED moving head profile with a 300W LED white light source, offering bright illumination, multiple color options, and effects. It’s ideal for various lighting applications, providing precise control and versatility.

FEATURES

• Light Source: 300W white LED module with an 8000K color temperature and a lifespan of 20,000 hours.

• Optical System:

  • Beam angle ranging from 3° to 39°.
  • Electronic focus for precise adjustments.

• Dynamic Effects:

  • CMY color mixing system.
  • Color wheel with 9 colors plus white.
  • 11 static gobos and 7 rotating gobos.
  • 5-facet rotating prism.
  • Frost filter for wash effects.
  • Electronic dimmer with 0–100% linear adjustment.
  • Electronic strobe function.

• Control & Programming:

  • DMX and Auto control protocols.
  • 16 or 24 channel modes.
  • 1.7-inch LCD display with 180° rotation.
  • Quiet fan mode for noise-sensitive environments.
• Movement:
  • Pan: 540°
  • Tilt: 270°
  • 16-bit resolution for smooth movement.

• Electrical:

  • Input voltage: AC 110–240V, 50/60Hz.
  • Power consumption: 400W.

• Physical:

  • IP20 rating (indoor use).
  • Dimensions: 325 × 240 × 570 mm.
  • Weight: 13.5 kg.

SPECIFICATIONS

SOURCE

• Light source: 300W LED white light module
• Color temperature: 8000K
• Output: 5000 lm
• Illuminance: at 10m illuminance 16700 lx/spot of 0.35m
• LED Life expectancy: 20,000 hours

OPTICAL SYSTEM

• Beam angle: 3° to 39°
• Electronic Focus

DYNAMIC EFFECTS

• Dimmer: 0-100% linear adjustment
• Electronic Strobe
• Color mixing: CMY
• Color wheel: 9 colors + white
• Static gobos: 11 gobos + open
• Rotating gobos: 7 gobos + open
• Rotating gobo size: OD= 23.9mm, ID=13mm
• Prism: 5 facets prism
• Frost
• High precision positioning system

CONTROL & PROGRAMMING

• Control Protocols: DMX, Auto
• Channel mode: 16, 24 channels
• Display: 1.7 inch screen display, can reverse 180°

MOVEMENT

• Pan: 540°
• Tilt: 270°
• Resolution: 16Bit

ELECTRICAL

• Input voltage: AC110-240V/50-60Hz
• Power consumption: 400W

PHYSICAL

• IP Rate: IP20
• Product size: 325x240x570 m m
• Weight: 13.5 kg
