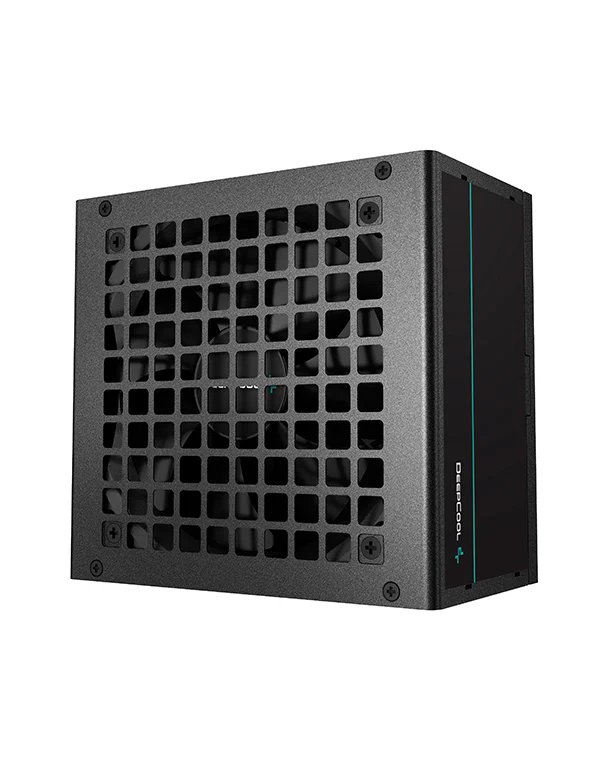

DeepCool PF750D 80 PLUS Standard Power Supply
The DeepCool PF750D is a 750W power supply unit designed to deliver reliable and efficient power for mid-range to high-end desktop PC builds. It is certified with the 80 PLUS Standard (230V EU White), ensuring at least 85% energy efficiency under typical 50% load conditions.
Features
-
80 PLUS Standard Certified: Achieves up to 85% energy efficiency under typical 50% load conditions, reducing energy consumption and heat generation.
-
Silent Operation: Equipped with a 120mm hydraulic bearing fan that minimizes noise and enhances durability.
-
Flat Black Cables: Features fixed flat black cables that are flexible and easy to manage, improving airflow and aesthetics.
-
Comprehensive Protections: Includes Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP) to safeguard your components.
-
High-Quality Components: Built with Taiwan-made bulk capacitors and an active PFC + double tube forward topology for stable and efficient power delivery.
-
Global Certifications: Complies with multiple regulatory standards including CB, CE, UKCA, EAC, RCM, and BIS.
Specifications
| Model | DeepCool PF750D |
| Form Factor | ATX12V V2.4 |
| Rated Power Output | 750W |
| Efficiency Certification | 80 PLUS Standard (230V EU White) |
| Fan Size | 120mm |
| Fan Bearing Type | Hydraulic Bearing (Hypro) |
| Topology | Active PFC + Double Tube Forward |
| Capacitors | Taiwan Bulk Capacitors |
| Hold-Up Time | ≥12ms at 75% load |
| Operating Temperature | 0–40°C |
| MTBF | ≥100,000 hours |
| Regulatory Approvals | CB, CE, UKCA, EAC, RCM, BIS |
| ErP Compliance | ErP 2010 |
| Dimensions (L×W×H) | 150 × 140 × 86 mm |
