Fractal Design Meshify 3 XL Ambience Pro RGB
Optimize the performance of your build with the Meshify 3 XL Ambience Pro RGB Full Tower Case from Fractal Design. Engineered for high-efficiency airflow, this premium steel and tempered glass chassis features a distinctive rockface-inspired mesh front panel, complemented by three Momentum 14 fans for powerful and silent cooling.
The case accommodates ATX, mATX, mini-ITX, E-ATX, EE-ATX, SSI-CEB, and SSI-EEB motherboards, with space for up to seven expansion slots and graphics cards up to 20.2″ long. Storage options include up to two 3.5″ drives or four 2.5″ drives mounted behind the motherboard tray, plus additional 2.5″ mounts at the bottom. An integrated cable management channel ensures a clean, professional build, while its tool-less design makes upgrading easy.
The Ambience Pro RGB edition enhances your setup with customizable ARGB lighting effects, controllable via software or the included Adjust Pro Hub. A light-tinted tempered glass panel showcases your hardware and lighting, while support for up to ten fans or multiple radiators (front/side up to 360mm, top up to 420mm, rear 140mm) ensures extreme cooling flexibility.
For connectivity, the top I/O panel features a 20 Gb/s USB-C port, dual 5 Gb/s USB-A 3.2 Gen 1 ports, and a 3.5mm audio jack for headsets. With its sleek design, robust build quality, and extensive cooling support, the Meshify 3 XL Ambience Pro RGB is an ideal choice for enthusiasts seeking both aesthetics and performance.
Features
-

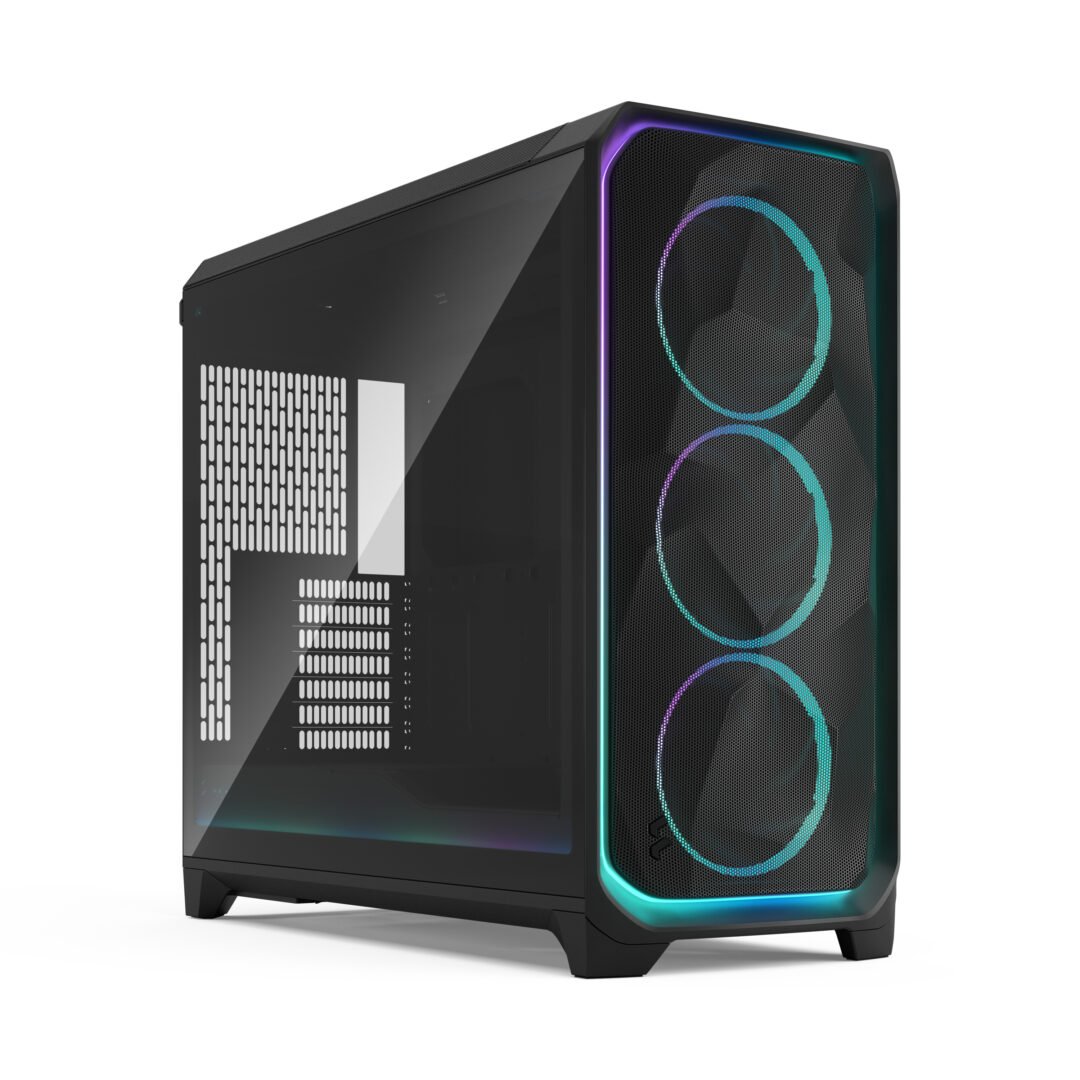

Full tower case with airflow-optimized rockface mesh design
-
Supports ATX, E-ATX, EE-ATX, SSI-CEB, SSI-EEB, mATX, and mini-ITX motherboards
-
Three included 140mm Momentum fans with fluid dynamic bearings
-
ARGB lighting with customizable startup effects and Adjust Pro Hub
-

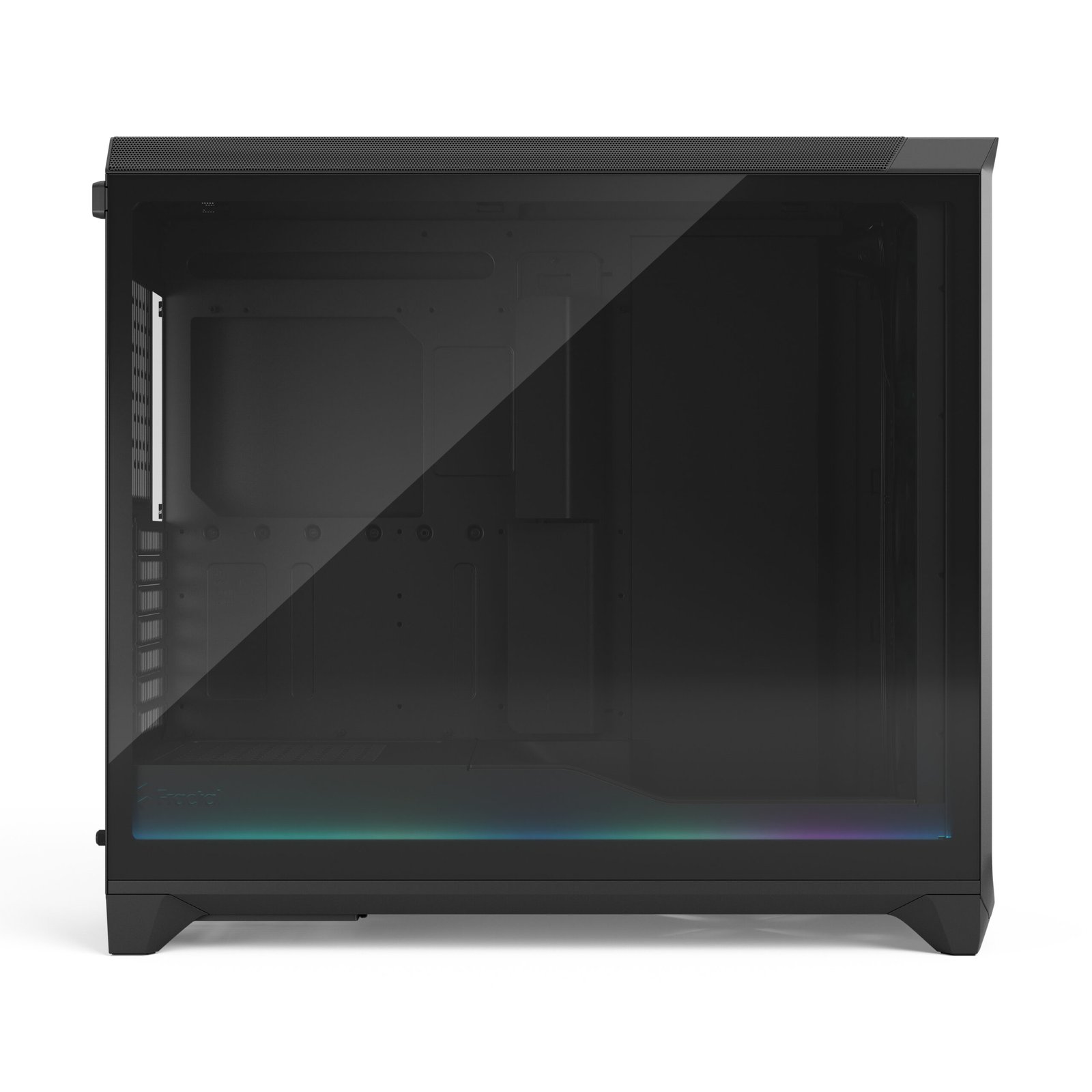

Light-tinted tempered glass side panel to display hardware
-
Tool-less design with thumbscrews for easy component swaps
-
Spacious cable management space (1.5″ / 37.5 mm) for neat builds
-
Support for GPUs up to 20.2″ / 512 mm and CPU coolers up to 182 mm tall
-
Radiator support: Front & Side 360mm, Top 420mm, Rear 140mm
-
High-speed I/O: 1x USB-C (20 Gb/s), 2x USB-A 3.2 Gen 1, 3.5mm audio
Specifications
| Categories | Details |
|---|---|
| Motherboard Support | ATX, E-ATX, EE-ATX, Mini-ATX, Mini-ITX, SSI-CEB, SSI-EEB |
| Expansion Slots | 7x Full Height |
| Maximum GPU Length | 20.2″ / 512 mm |
| CPU Cooler Height | 7.2″ / 182 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 9.1″ / 230 mm |
| Internal Drive Bays | 2x 3.5″ or 4x 2.5″ (Motherboard Tray), 2x 2.5″ (Bottom) |
| External Drive Bays | None |
| Fan Mounting (Front) | 3x 120/140 mm or 2x 180 mm |
| Fan Mounting (Top) | 3x 120/140 mm |
| Fan Mounting (Rear) | 1x 120/140 mm |
| Fan Mounting (Side) | 3x 140 mm |
| Fans Included | 3x 140 mm LED Momentum (Front) |
| Maximum Radiator Support | Front 360 mm, Top 420 mm, Rear 140 mm, Side 360 mm |
| Fan Controller Included | Yes |
| Filters Included | Yes (Bottom) |
| I/O Ports | 1x USB-C (USB 3.2 Gen 2×2), 2x USB-A (USB 3.2 Gen 1), 1x 3.5mm Audio |
| Windowed Panel | Yes (Light-Tinted Tempered Glass) |
| Material | Steel, Tempered Glass |
| Color | Black |
| Built-In Lighting | Yes (ARGB) |
| Tool-Less Design | Yes (Thumbscrews) |
| Cable Management Space | 1.5″ / 37.5 mm |
| Dimensions (W x H x D) | 9.6 x 20.3 x 22.6″ / 245 x 515 x 575 mm |
| Weight | 25.1 lb / 11.4 kg |
| Packaging Weight | 30 lb |
| Box Dimensions (L x W x H) | 26.5 x 23.5 x 13.5″ |
