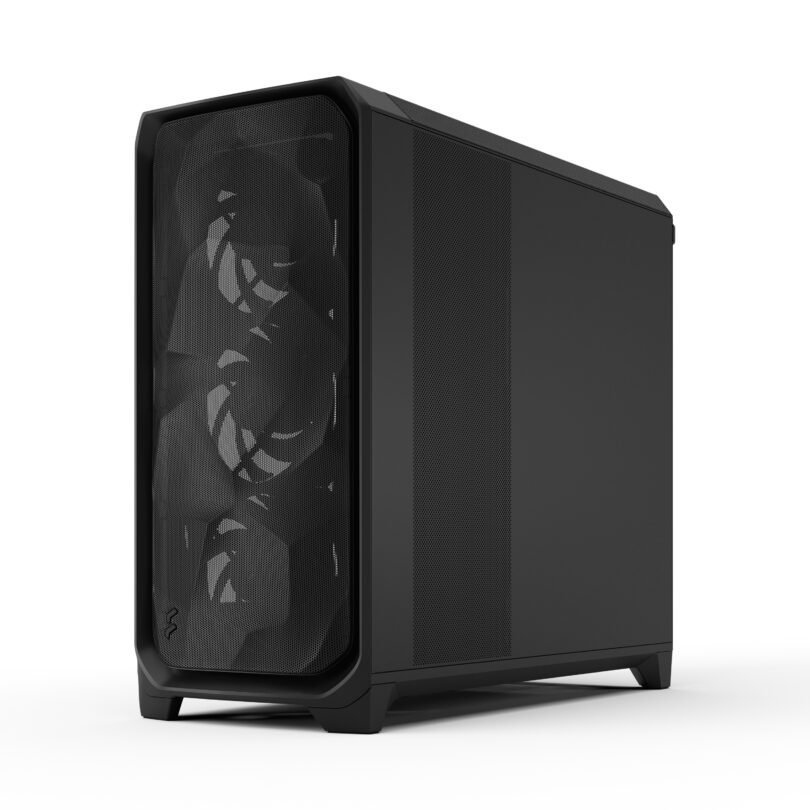

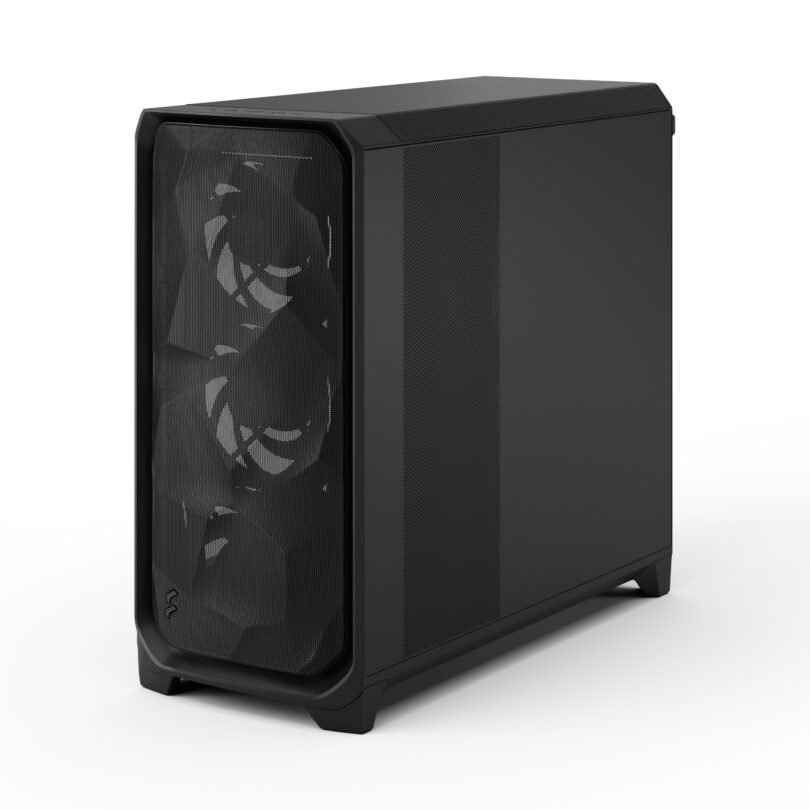

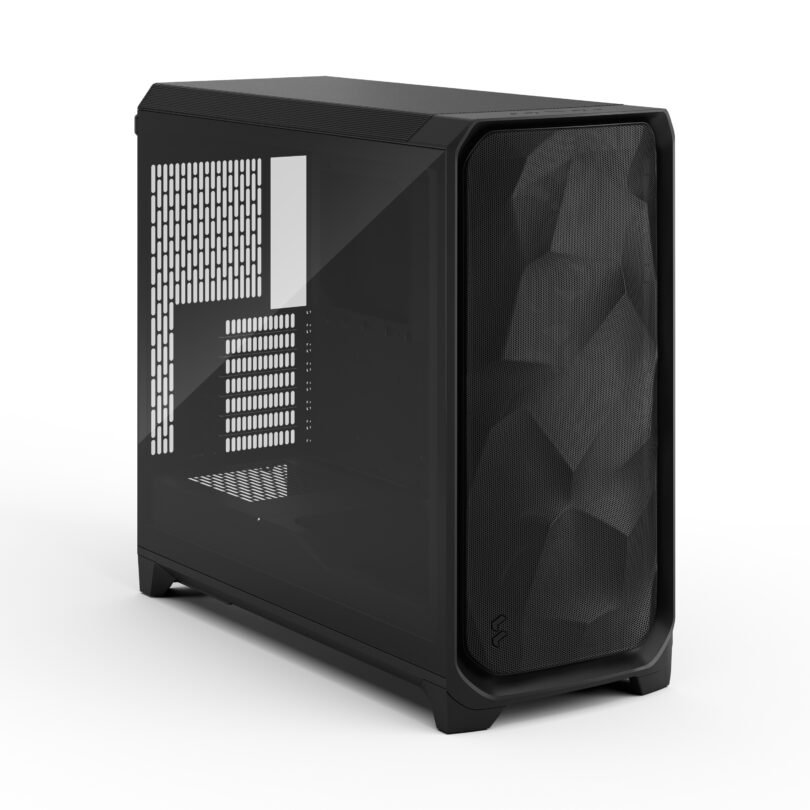

Fractal Design Meshify 3 XL Full Tower Case
The Fractal Design Meshify 3 XL delivers exceptional airflow and component compatibility in a sleek, modern design. Featuring a mesh front panel, tinted tempered glass side panel, and pre-installed Momentum 14 fans, it is optimized for both performance and aesthetics. With support for large motherboards, oversized graphics cards, and multiple liquid cooling radiators, the Meshify 3 XL is an ideal choice for high-end gaming and workstation builds.
Features
-
Mesh front panel optimized for maximum airflow
-
Tinted tempered glass side panel to showcase hardware
-
Includes 3 × 140 mm Momentum 14 fans with FDB bearings
-
Supports ATX, E-ATX, EE-ATX, SSI-CEB, and SSI-EEB motherboards
-
Maximum GPU length up to 512 mm
-
CPU cooler clearance up to 182 mm
-
Extensive radiator support: front, top, side, and rear
-
Multiple storage mounting options with tool-less design
-
USB-C and high-speed I/O connectivity
-
Integrated cable management channels for clean builds
Specifications
| Categories | Details |
|---|---|
| Brand | Fractal Design |
| Model | Meshify 3 XL Full Tower (Black, Tinted Glass) |
| Case Type | Full Tower |
| Material | Steel, Tempered Glass |
| Color | Black |
| Motherboard Compatibility | ATX, E-ATX, Mini-ITX, Micro-ATX, SSI-CEB, SSI-EEB, EE-ATX |
| Expansion Slots | 7 × Full-height |
| Maximum GPU Length | 512 mm |
| Maximum CPU Cooler Height | 182 mm |
| PSU Support | ATX, up to 230 mm |
| Drive Bays | 2 × 3.5″ or 4 × 2.5″ (behind tray), 2 × 2.5″ (bottom) |
| Fans Included | 3 × 140 mm Momentum 14 |
| Fan Support | Front: 3 × 120/140 mm or 2 × 180 mm; Top: 3 × 120/140 mm; Rear: 1 × 120/140 mm; Side: 3 × 140 mm |
| Radiator Support | Front: up to 360 mm; Top: up to 420 mm; Side: up to 360 mm; Rear: 140 mm |
| I/O Ports | 1 × USB-C 20 Gb/s, 2 × USB-A 5 Gb/s, 1 × 3.5 mm combo audio |
| Tool-less Design | Yes (thumbscrews) |
| Cable Management Clearance | 37.5 mm |
| Dimensions (W × H × D) | 245 × 515 × 575 mm |
| Weight | 10.9 kg |
