Description

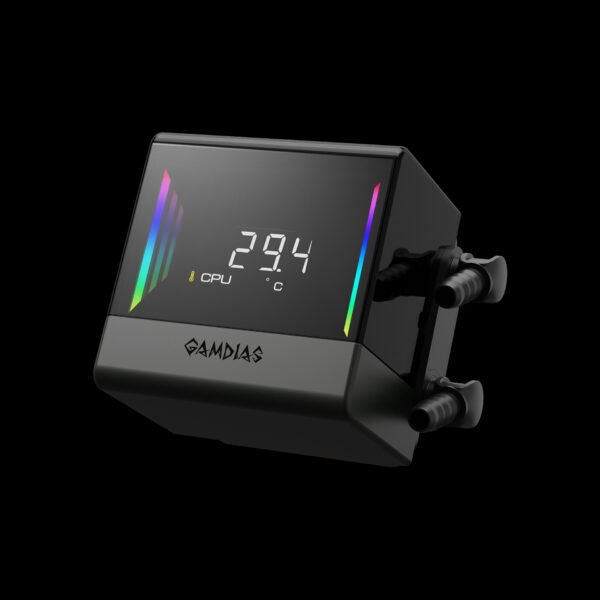

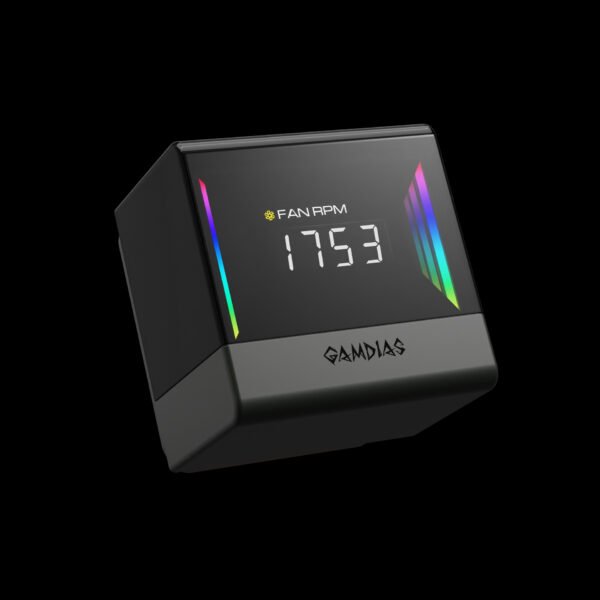

Engineered for both performance and style, the CHIONE E4-360 from GAMDIAS delivers elite digital cooling with modern aesthetics. At the heart of its design is a real-time digital display on the CPU block that showcases system vitals like CPU temperature and fan speed. Surrounded by dual infinity mirrors, the block brings an immersive lighting experience to your build. The upgraded fluid system and patented side-mounted PWM pump enhance durability and efficiency by reducing vibrations and improving circulation.

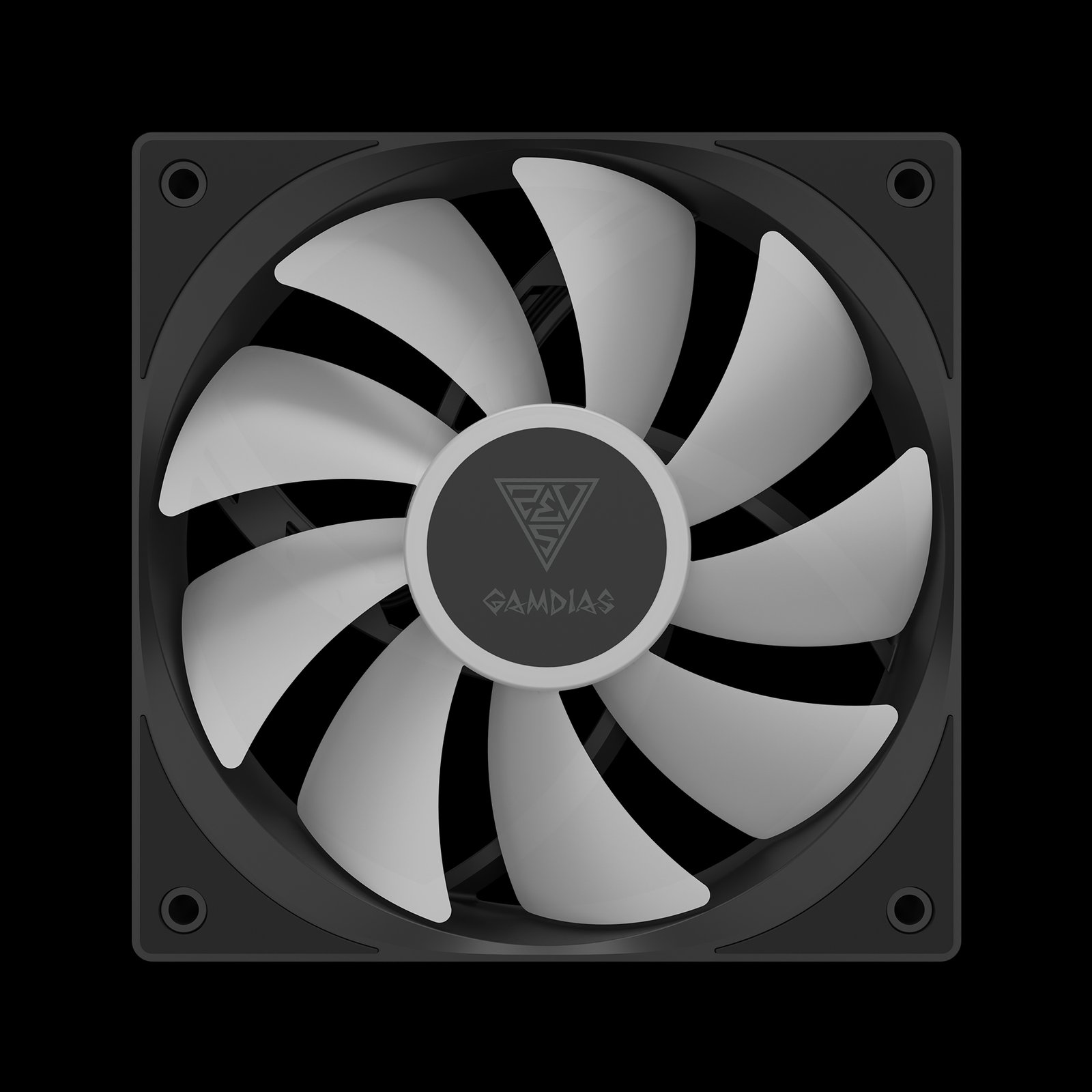

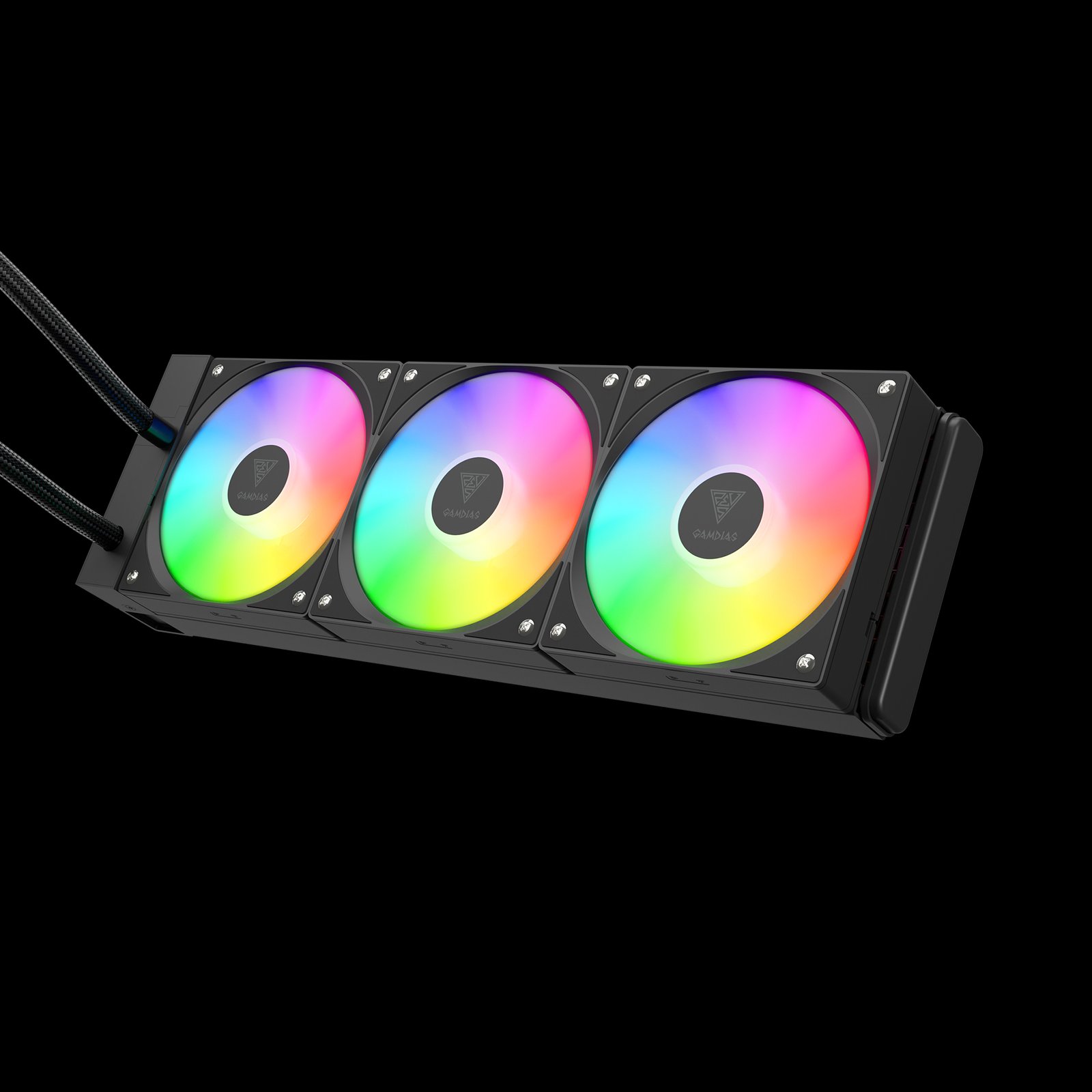

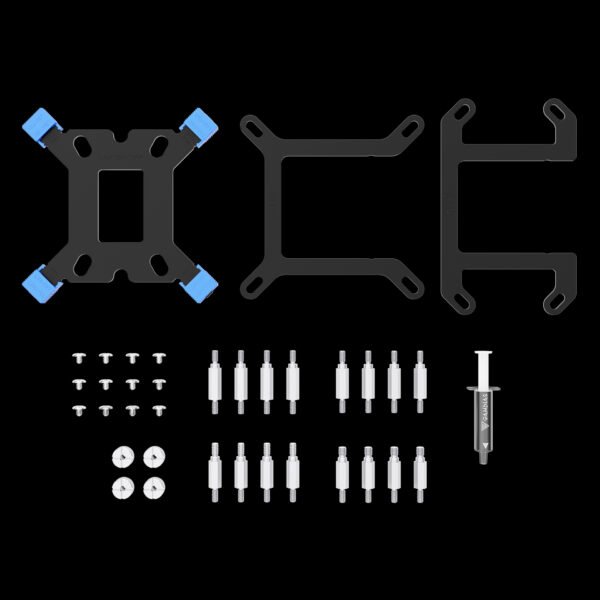

Equipped with three 120mm hydraulic PWM fans, this cooler delivers airflow up to 73.36 CFM with minimal noise levels. Hidden cable routing simplifies the build process, while support for motherboard ARGB sync allows full customization of lighting through compatible 5V 3-pin headers. The CHIONE E4-360 offers universal mounting hardware, making it compatible with a broad range of Intel and AMD sockets including LGA 1700 and AM5.



Features



  • Stylish dual infinity mirror design with digital status display

  • Real-time CPU temperature and fan speed via ZEUS CAST software

  • Patented PWM pump mounted on the radiator for better stability

  • Three high-pressure hydraulic fans with speeds up to 1800 RPM

  • Outstanding airflow of 73.36 CFM and 2.12 mmH2O static pressure

  • Discreet cable management with hidden routing channels

  • Syncs lighting with motherboard via 5V 3-pin ARGB header

  • 30 built-in lighting modes and customizable effects

  • Compatible with latest Intel and AMD sockets including LGA 1700 and AM5



Specifications



ModelCHIONE E4-360
ColorWhite
Fan Dimensions120 x 120 x 25 mm
Fan Speed800 – 1800 RPM ±10%
Fan Airflow73.36 CFM
Fan Static Pressure2.12 mmH2O
Noise Level11 – 33.8 dBA
Fan Bearing TypeHydraulic
Fan Voltage12V (Fan) / 5V (LED)
Number of Fans3 Fans
Radiator Size360mm
Radiator Dimensions396 x 120 x 27 mm
Radiator MaterialAluminum

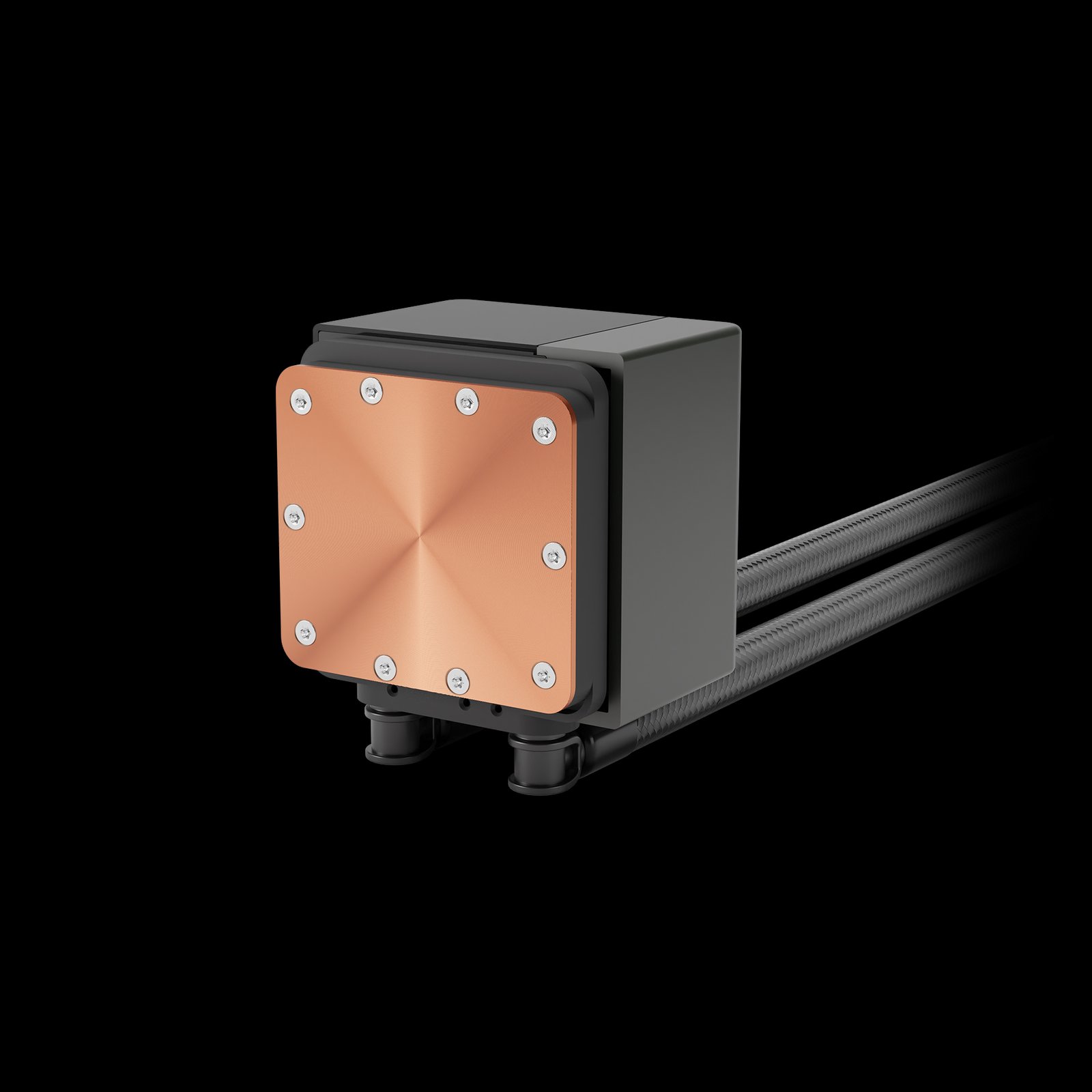

Base Plate MaterialCopper
Tube MaterialEPDM with sleeving
Pump Voltage12V
Connector TypePWM & 5V ARGB Sync
RGB Sync Compatibility5V 3-pin addressable headers only
Intel Socket SupportLGA 2066 / 2011-v3 / 2011 / 1700 / 1200 / 115x
AMD Socket SupportAM5 / AM4 / AM3+ / AM3 / AM2 / FM2+ / FM2 / FM1
Product Weight2.00 Kg
Product Dimensions18.00 cm x 32.00 cm x 12.00 cm
