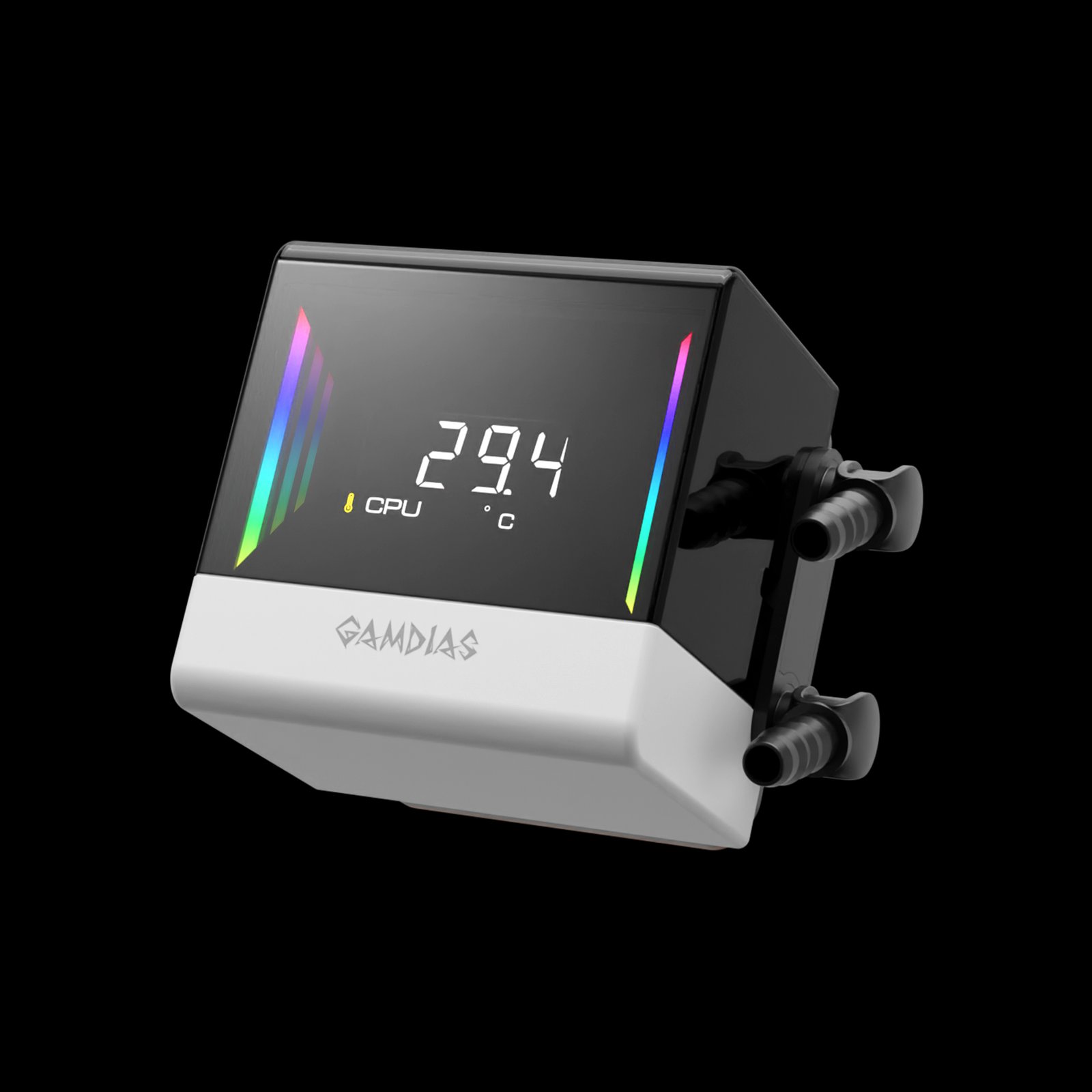

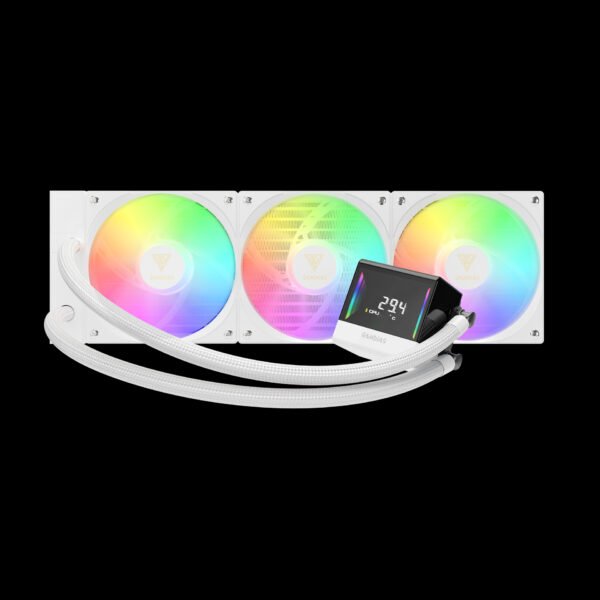

Designed for enthusiasts seeking both functionality and style, the GAMDIAS CHIONE E4-360 offers cutting-edge cooling with modern visual flair. The integrated digital screen on the water block provides live system data such as CPU temperature and fan speed, while the surrounding dual infinity mirrors create a stunning visual effect.

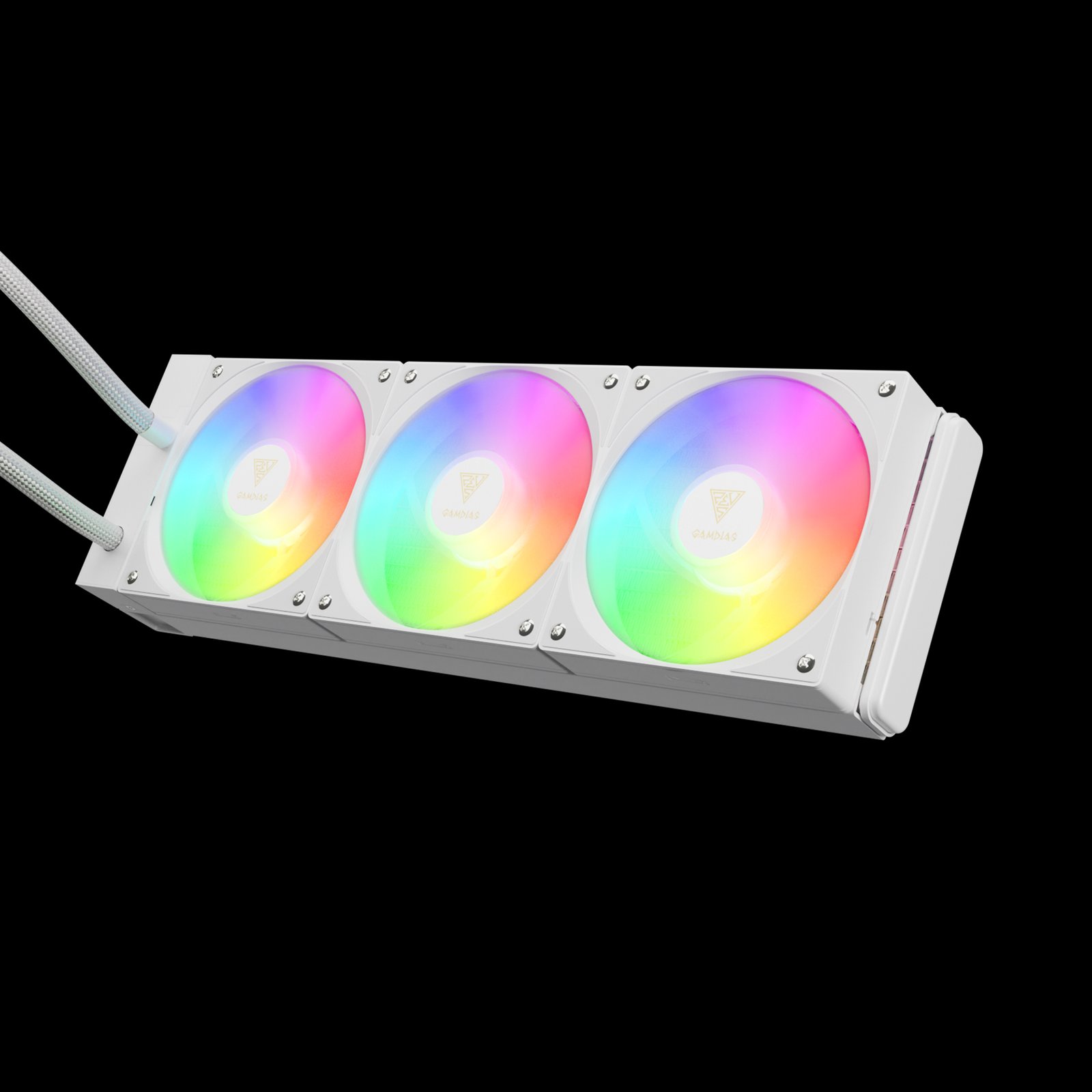

An upgraded cooling system, featuring a patented PWM pump mounted on the radiator, reduces vibrations and improves longevity. The setup includes three 120mm PWM hydraulic fans that offer high airflow with low noise levels, ensuring optimal thermal performance without disrupting your system’s acoustics.

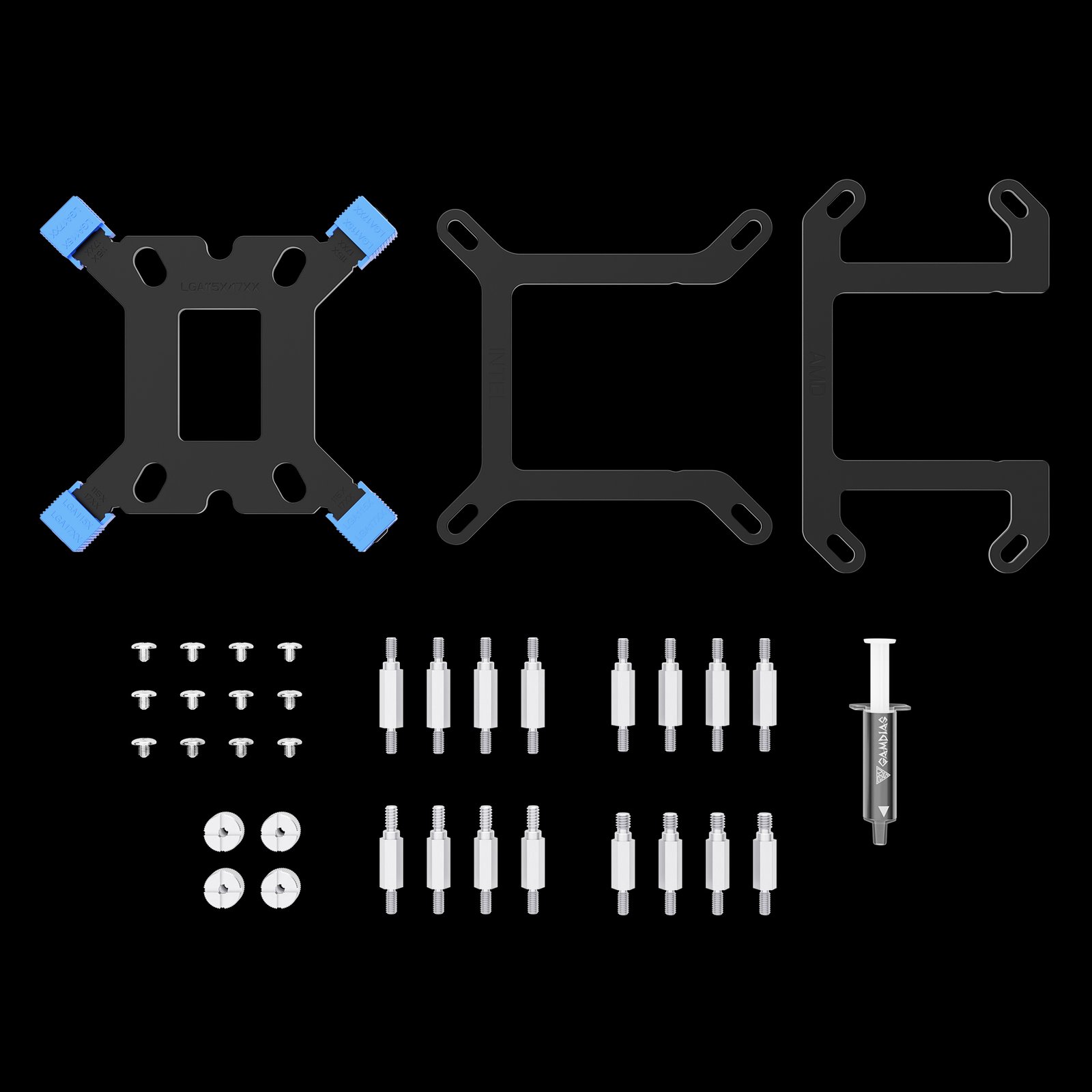

The cooler also features hidden cable routing for a clean installation and supports addressable RGB lighting synchronization with compatible motherboards via a 5V 3-pin header. With universal mounting hardware, the CHIONE E4-360 is compatible with a wide range of Intel and AMD sockets including the latest LGA 1700 and AM5.



Features

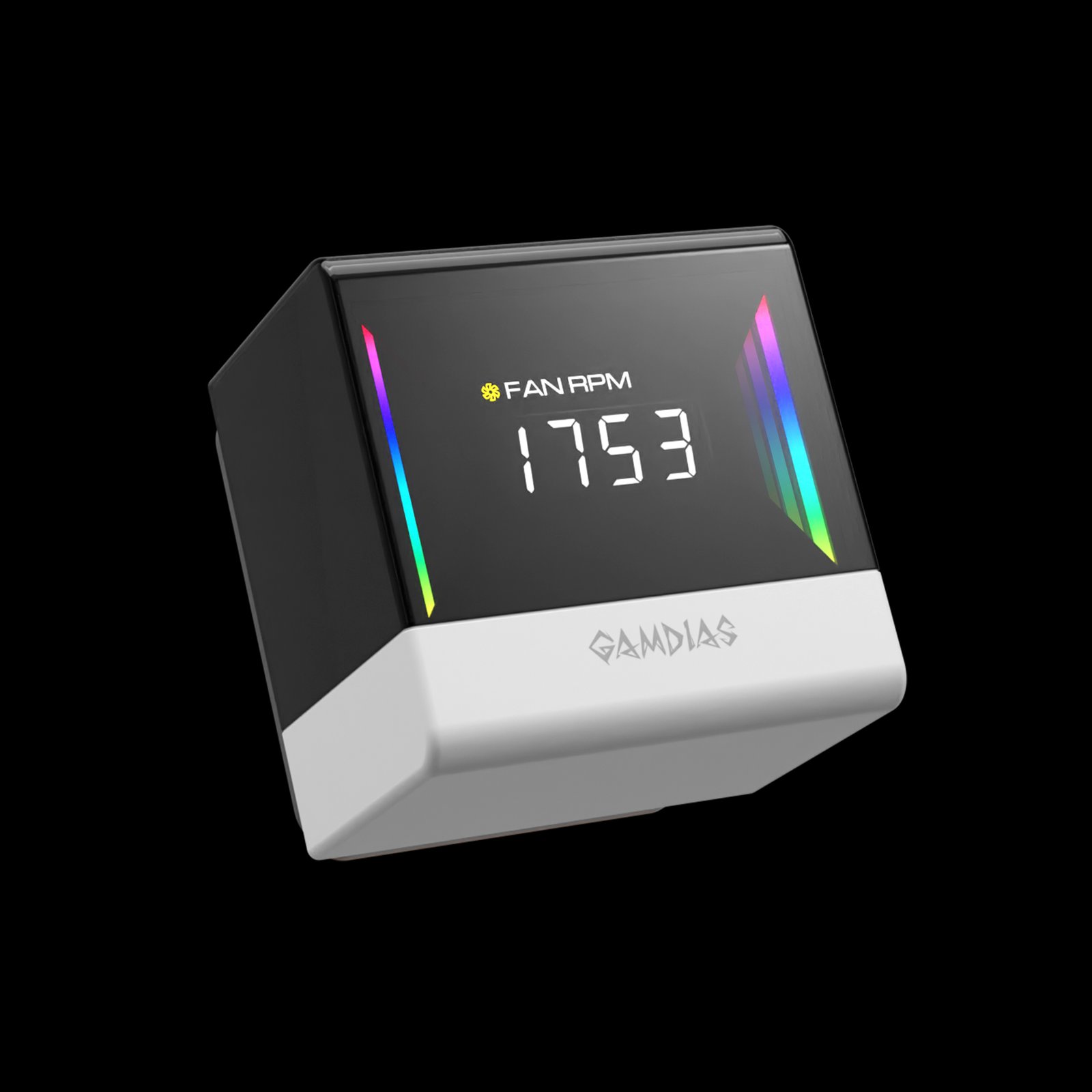

  • Eye-catching dual infinity mirror with integrated digital temperature and fan speed display

  • Live monitoring via ZEUS CAST software

  • Patented side-mounted PWM pump for better performance and reduced vibration

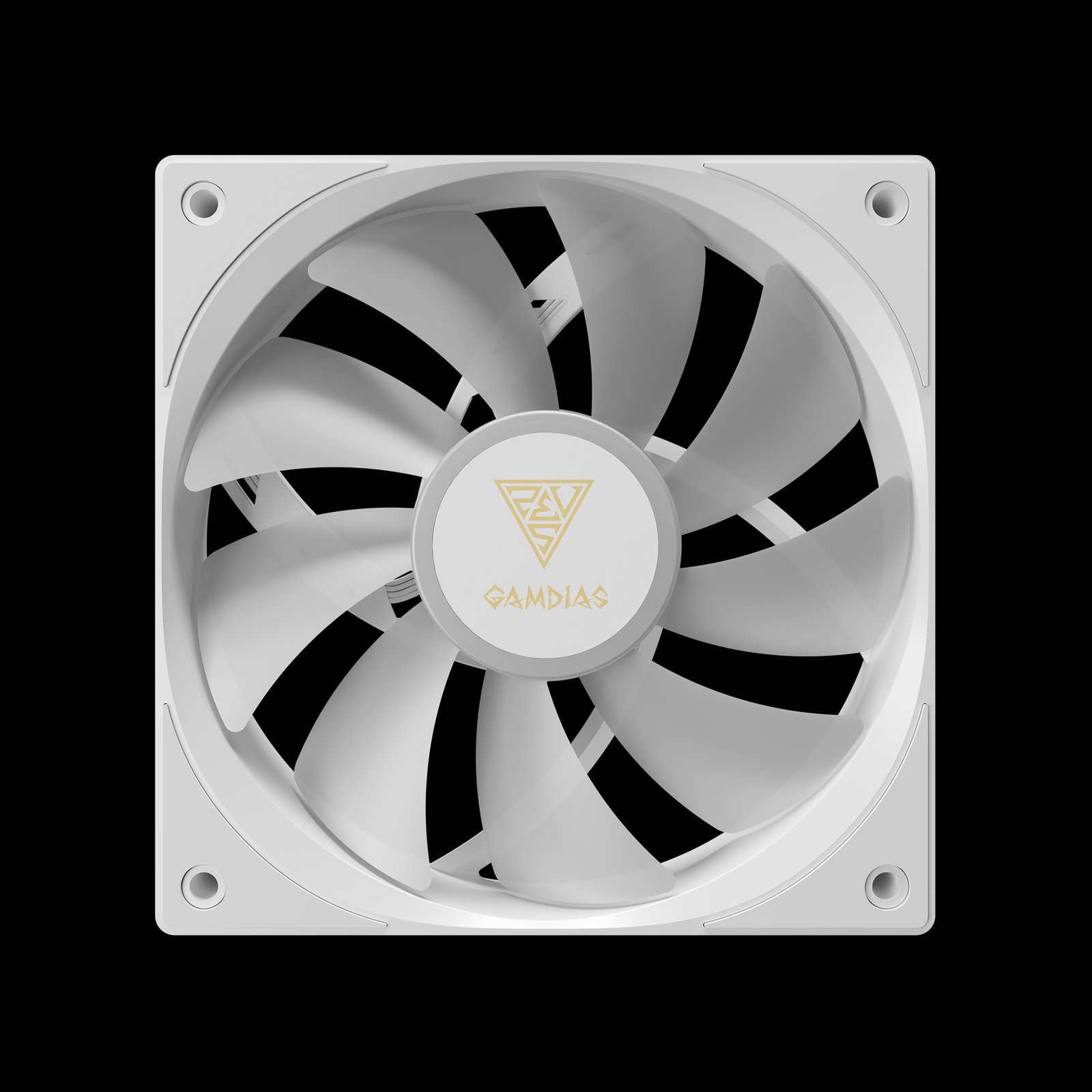

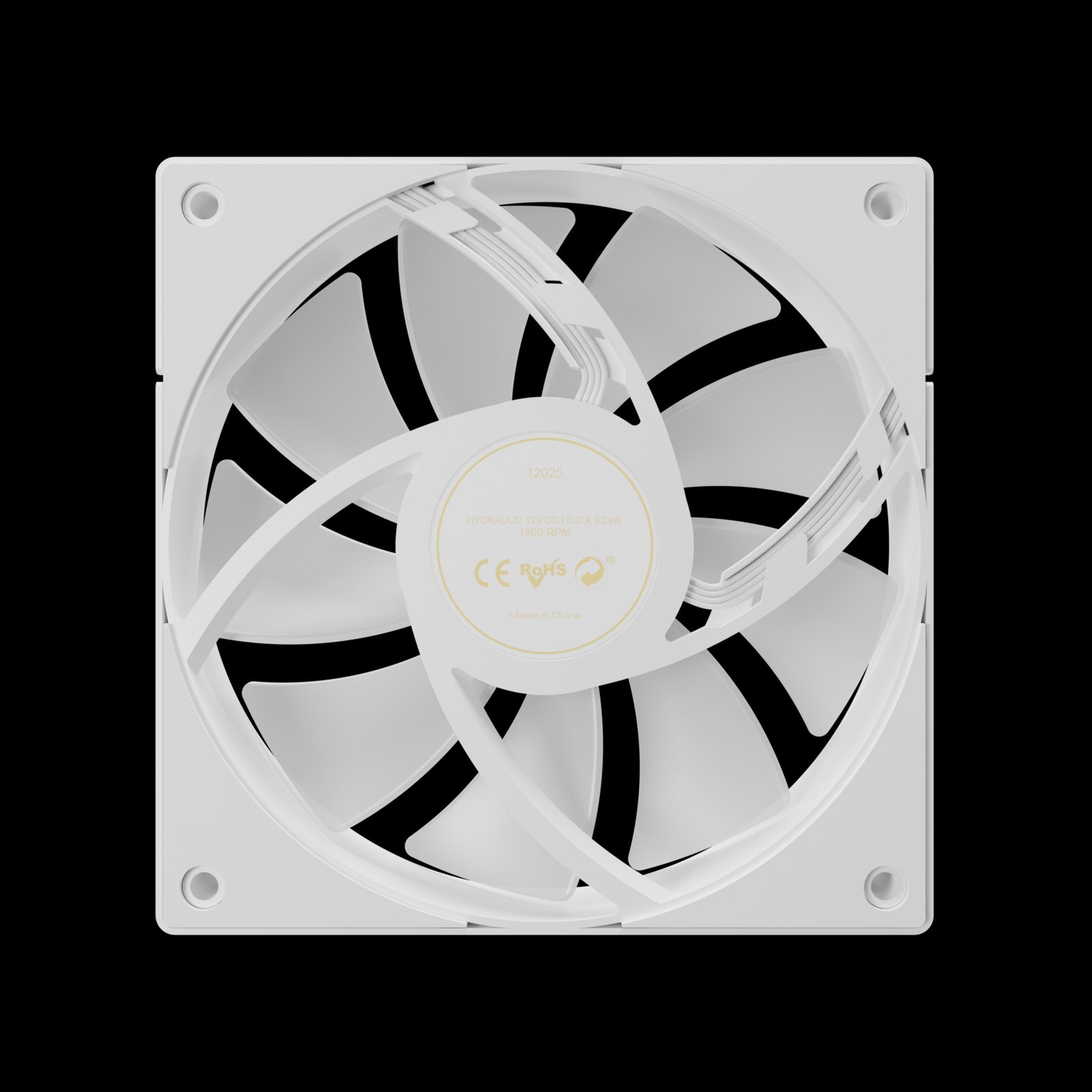

  • Three quiet yet powerful 120mm fans with 73.36 CFM airflow

  • Static pressure of 2.12 mmH?O for efficient heat dissipation

  • Clean and tidy cable management with concealed routing design

  • ARGB lighting sync with motherboard via 5V 3-pin header

  • 30 pre-set lighting modes with customization options

  • Wide CPU socket compatibility for both Intel and AMD platforms



Specifications



ModelCHIONE E4-360
ColorWhite
Fan Dimensions120 x 120 x 25 mm
Fan Speed800 – 1800 RPM ±10%
Airflow73.36 CFM
Static Pressure2.12 mmH?O
Noise Levels11 – 33.8 dBA
Fan Bearing TypeHydraulic
Rated Voltage12V (Fan) / 5V (LED)
Number of Fans3
Radiator Size360mm
Radiator Dimensions396 x 120 x 27 mm
Radiator MaterialAluminum

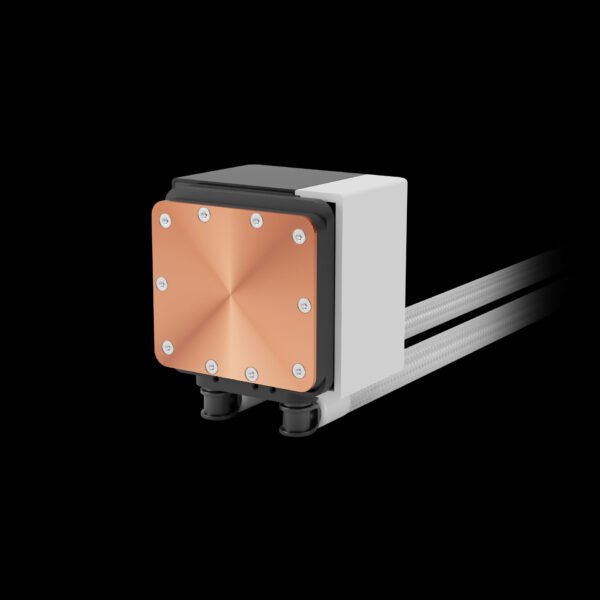

Base PlateCopper
TubingSleeved EPDM
Pump Voltage12V
Connector TypePWM + 5V ARGB
RGB Header Compatibility5V 3-pin addressable only
Supported Intel SocketsLGA 2066 / 2011-v3 / 2011 / 1700 / 1200 / 115x
Supported AMD SocketsAM5 / AM4 / AM3+ / AM3 / AM2 / FM2+ / FM2 / FM1
Product Weight2.00 kg
Product Dimensions18 cm x 32 cm x 12 cm
