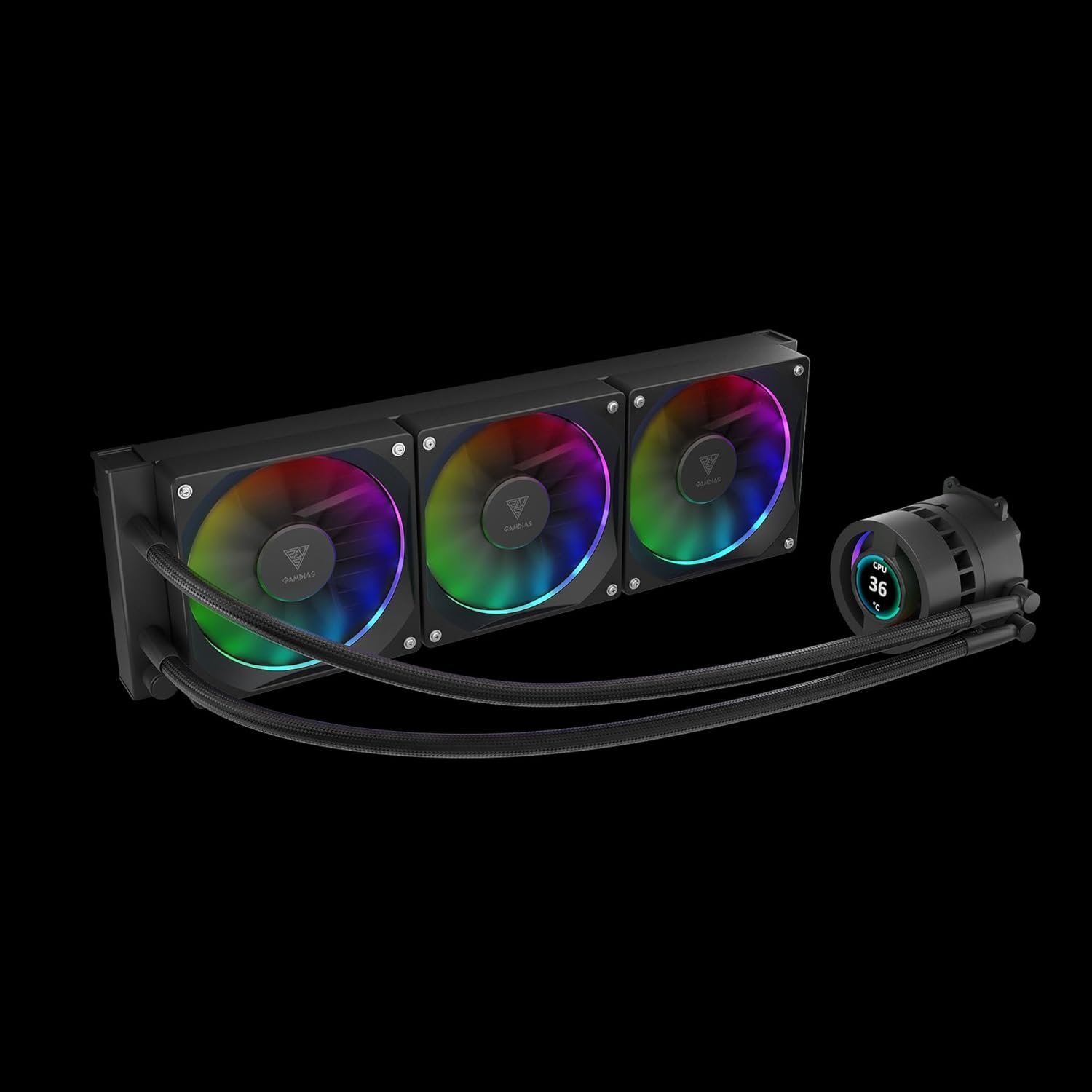

The Gamdias Chione P3-360U AIO Liquid Cooler brings high-end thermal management and visual customization to your PC build. Equipped with a 360mm radiator and three AEOLUS M3 hydraulic bearing fans, it delivers exceptional airflow (69.01 CFM) and fan speed up to 2000 RPM, while operating quietly. The centerpiece is a customizable IPS LCD screen that supports PNG, JPG, and GIF formats—allowing you to display real-time system stats or your own animated graphics.
This cooler features a micro-embedded fan in the pump head for added VRM cooling, along with a high-performance three-phase pump motor and a high-density copper base cold plate for maximum heat transfer. The CHIONE CAST software gives users full control over display orientation, ARGB lighting effects, fan speed, and brightness. The included USB AEOLUS Box can handle up to 3 fans and 1 LED strip, and supports daisy-chaining up to 8 additional fans and 2 LED strips.
Constructed with durable Teflon tubes and nylon-braided sleeves, the Chione P3-360U ensures long-lasting performance and sleek aesthetics. Its wide socket compatibility (LGA 1700, AM5, TR4, and more) makes it ideal for high-end desktops and gaming rigs.
Features
Customizable IPS LCD screen (PNG, JPG, GIF support)
Real-time system monitoring with personalized image display
CHIONE CAST Software for control over lighting, speed, and screen orientation

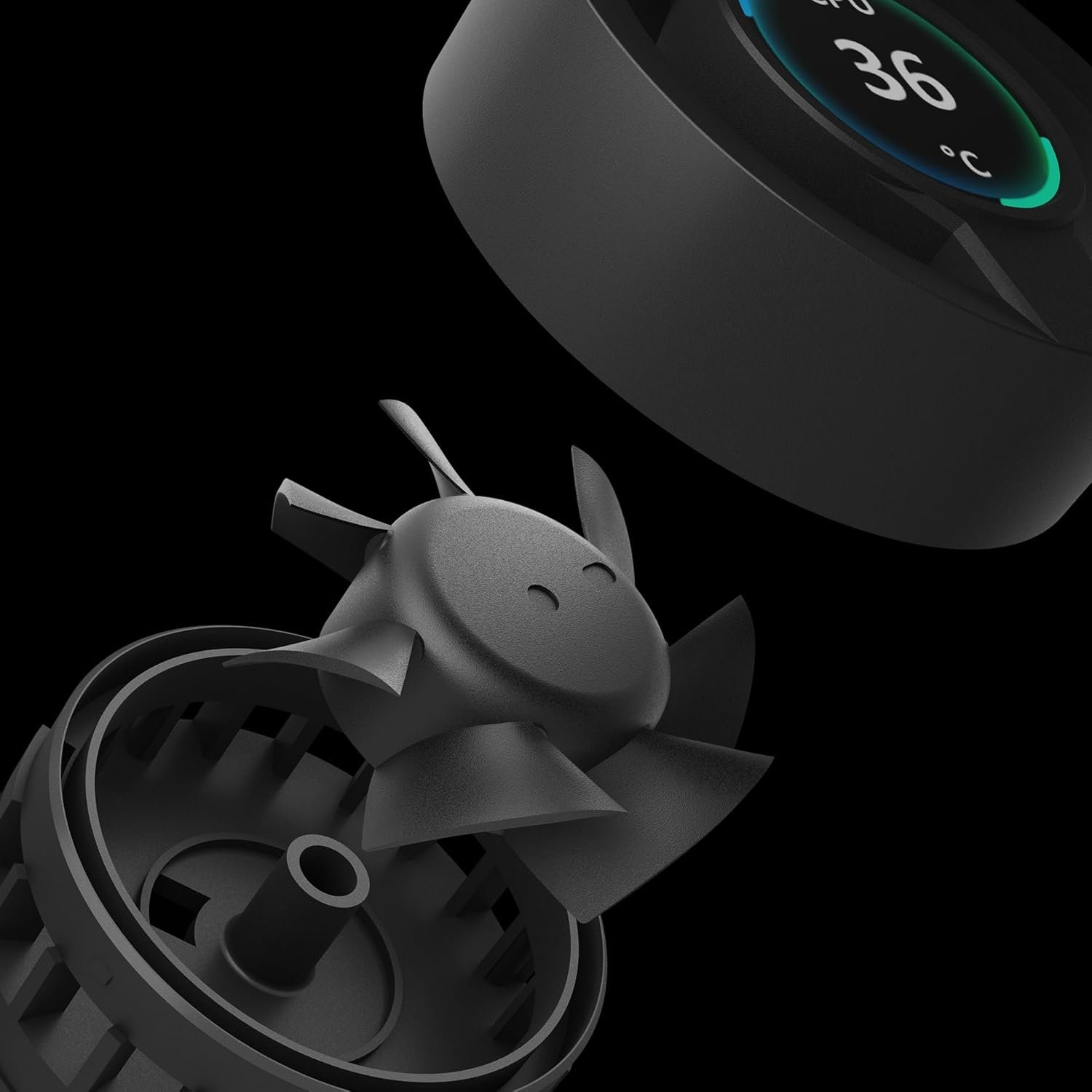

Micro-embedded fan for VRM and surrounding heat dissipation
Triple AEOLUS M3 fans (69.01 CFM, 2000 RPM, hydraulic bearing)
High-density copper cold plate for superior thermal conduction
25% thicker radiator with high fin density
ARGB lighting effects (software or motherboard sync)
Teflon tubing with braided sleeves for durability
USB AEOLUS Box with daisy-chain support
Supports LGA 1700, AM5, TR4, and other major CPU sockets
Specifications
Model | CHIONE P3-360U |
Microless SKU | 123816 |
Date First Available | 21 July, 2023 |
Color | Black |
LED Color | Addressable RGB |
Number of Fans | 3 |
Radiator Size | 360mm (394 x 119 x 27 mm) |
Fan Size | 120 x 120 x 25 mm |
Fan Speed | 800 – 2000 RPM ±10% |
Fan Airflow | 69.01 CFM |
Air Pressure | 2.37 mmH?O |
Noise Level | 10 – 31 dBA |
Bearing Type | Hydraulic |
Fan Voltage | 12V (Fan), 5V (LED) |
Fan Connector | 8-pin, PWM supported |
Pump Rated Voltage | 12V (Pump), 5V (LED) |
Pump Connector | 3-pin |
Tube Material | Teflon with nylon-braided sleeves |
Base Plate | Copper |
Radiator Material | Aluminum |
TDP | 290W ±10% |
Software | CHIONE CAST |
Display Type | IPS LCD (Customizable with PNG, JPG, GIF) |
Control Box Model | USB AEOLUS Box |
Control Box Dimensions | 83 x 59 x 14 mm |
Power Connector | SATA |
LED Type Supported | 5V 3-pin Addressable (Digital) LED |
Daisy Chain Support | Yes (up to 8 fans, 2 LED strips) |
Mounting Compatibility | Intel: LGA 2066, 2011(-v3), 1700, 1200, 115x, 1366; AMD: AM5, AM4, TR4, etc. |
Motherboard Sync | 5V 3-pin ARGB |
