Description

The Gamdias KRATOS P2-1000G is engineered to deliver spectacular performance and aesthetics, making it ideal for modern high-performance gaming PCs. Featuring 80 PLUS Gold efficiency, ATX 3.0 readiness, and PCIe Gen 5.0 compatibility, this 1000W PSU ensures up to 90% power efficiency under typical loads. It supports native 12VHPWR output for next-gen GPUs and includes 100% industrial-grade Japanese capacitors for exceptional stability and reliability. The unit also comes with 30 addressable RGB lighting effects, a silent 120mm hydraulic bearing fan, full DC-DC design, and complete protection mechanisms (OVP, UVP, OPP, SCP, OCP, OTP), offering superior thermal management, longevity, and safety.



Features



  • 1000W fully modular ATX power supply

  • 80 PLUS Gold certified for up to 90% efficiency

  • ATX 3.0 & PCIe Gen 5.0 ready with native 12VHPWR support

  • 100% high-quality Japanese capacitors for reliability

  • 30 built-in addressable RGB lighting effects

  • 120mm hydraulic bearing fan with silent mode

  • Full DC-DC design and LLC resonant circuit for stability

  • Heavy-duty protection: OVP, UVP, OPP, SCP, OCP, OTP

  • Flat cables for cleaner installation and airflow

  • Syncs with motherboard RGB software (5V 3-pin ARGB)



Specifications



ModelKRATOS P2-1000G
BrandGAMDIAS
Form FactorATX12V v3.0
Total Power1000W
Peak Power1300W
Efficiency80 PLUS Gold (up to 90%)
Power Factor CorrectionAPFC with PF value of 0.99
ModularFully Modular
Flat CableYes
DC to DCYes
Japanese Capacitors100% Industrial-grade
Lighting Effects30 Neon-Flex RGB
RGB Sync Support5V 3-pin Addressable RGB Header

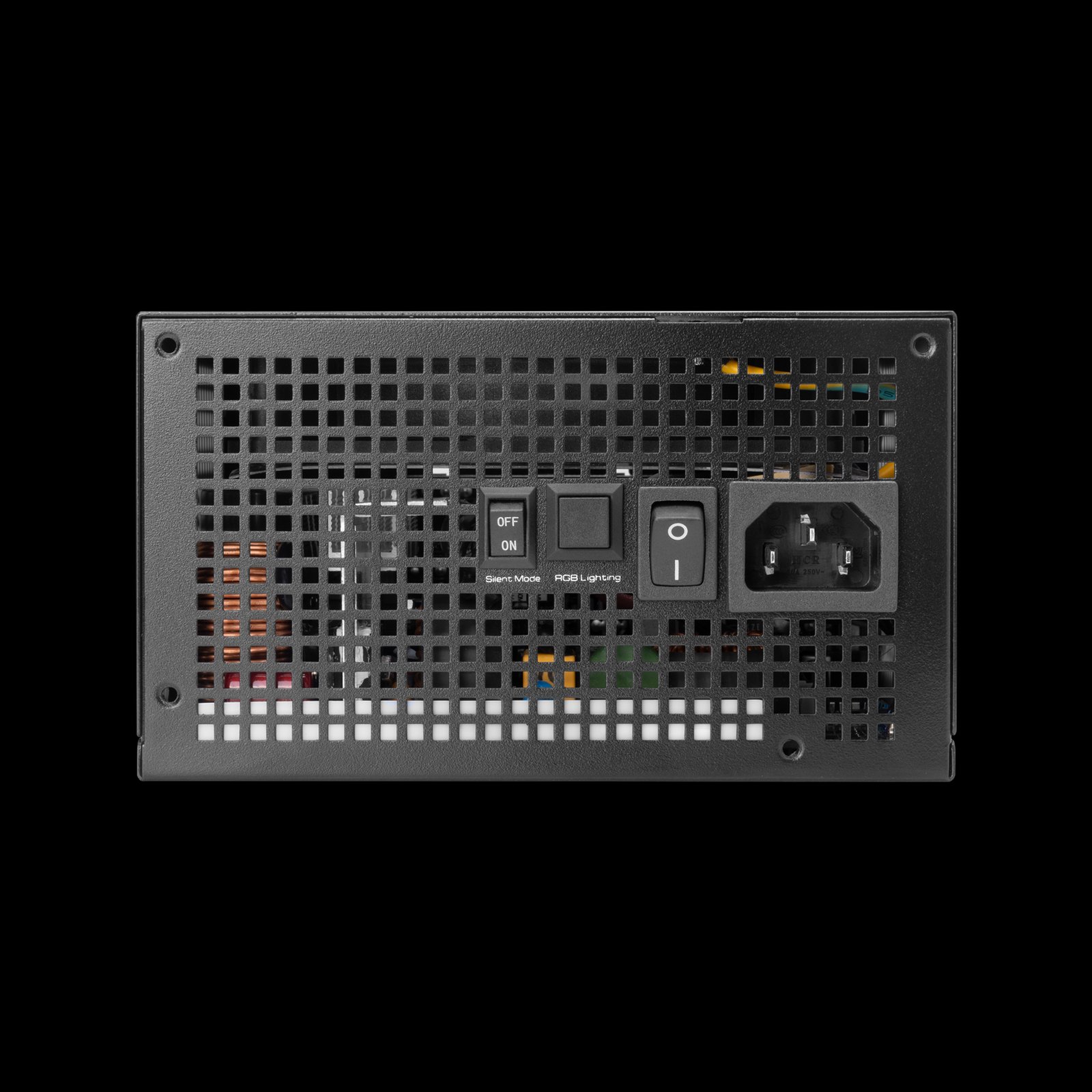

Silent ModeYes
Cooling System120mm Hydraulic Bearing Fan
Support C6/C7 Power StateYes
Dimensions (L x W x H)140 x 150 x 86 mm

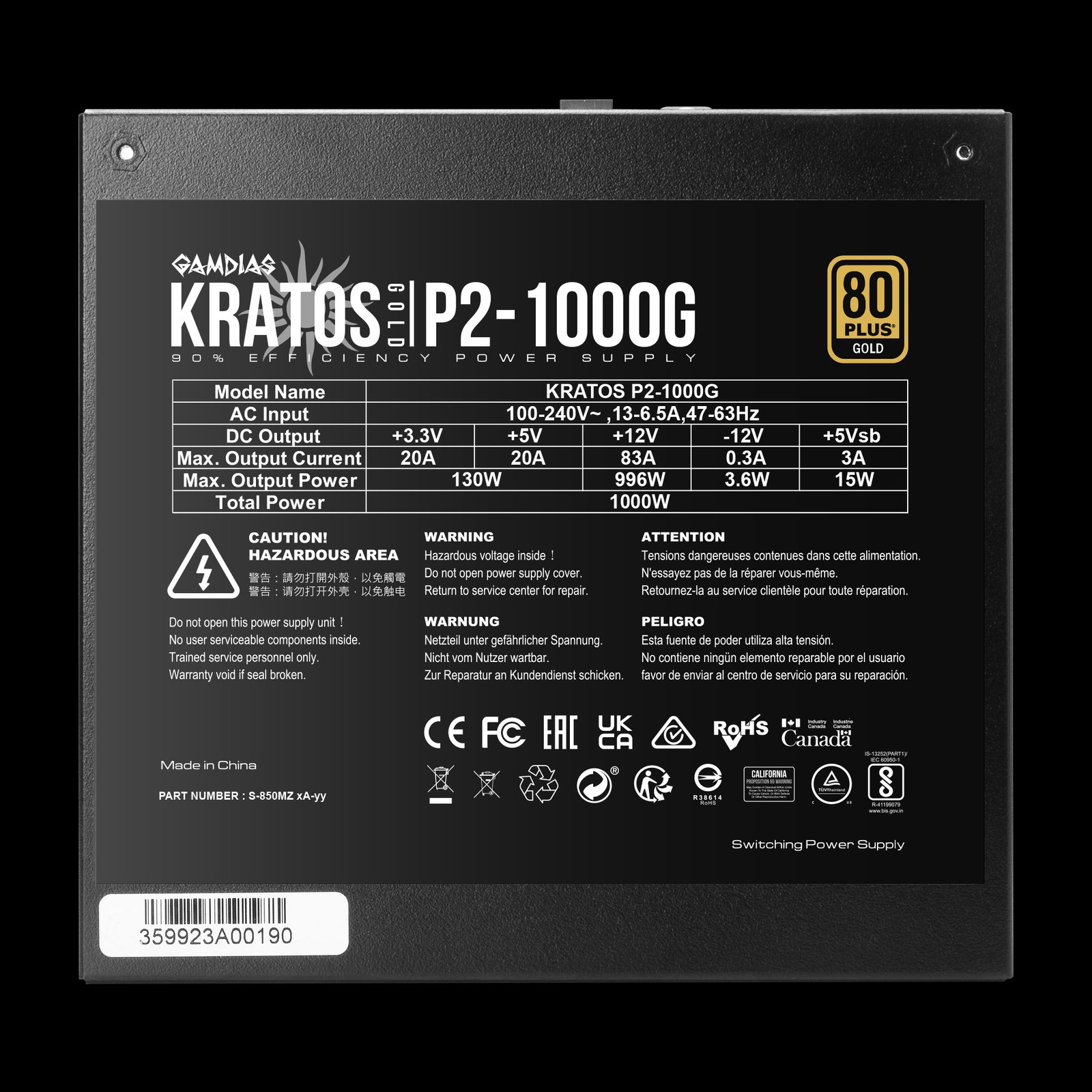

AC Input100–240V / 13–6.5A / 47–63Hz
DC Output Rails+3.3V, +5V, +12V, –12V, +5Vsb
Max Output Current20A / 20A / 83A / 0.3A / 3A
Max Output Power130W / 996W / 3.6W / 15W

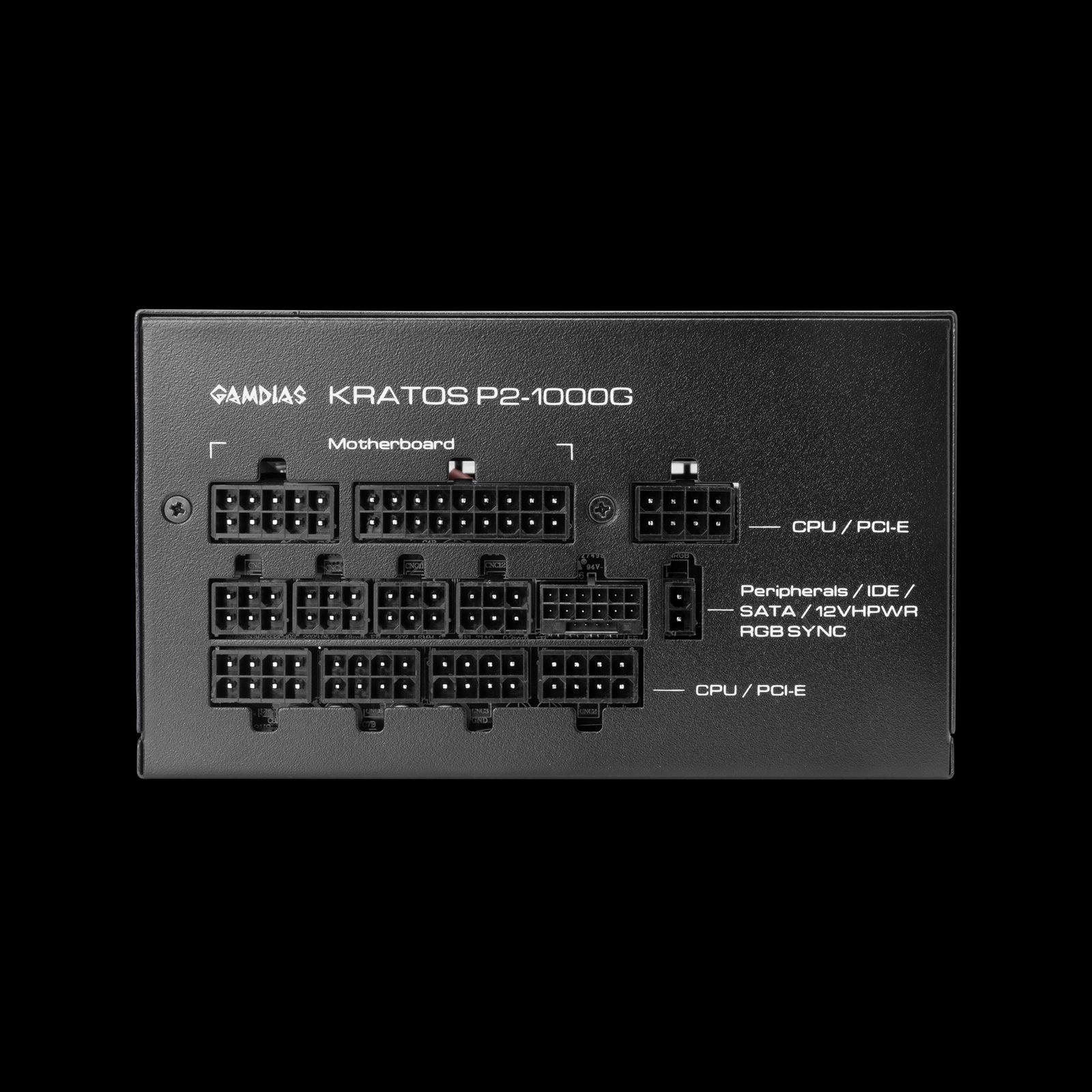

Main Power Connector1 x 24 Pin
CPU Connectors2 x 4+4 Pin
PCI-E Connectors4 x 6+2 Pin
12VHPWR Connector1 x 12+4 Pin
SATA Connectors8
Molex Connectors4
Protection FeaturesOVP / UVP / OPP / SCP / OCP / OTP
Environmental ComplianceErP Lot 6
Country of Origin
ManufacturerGAMDIAS
