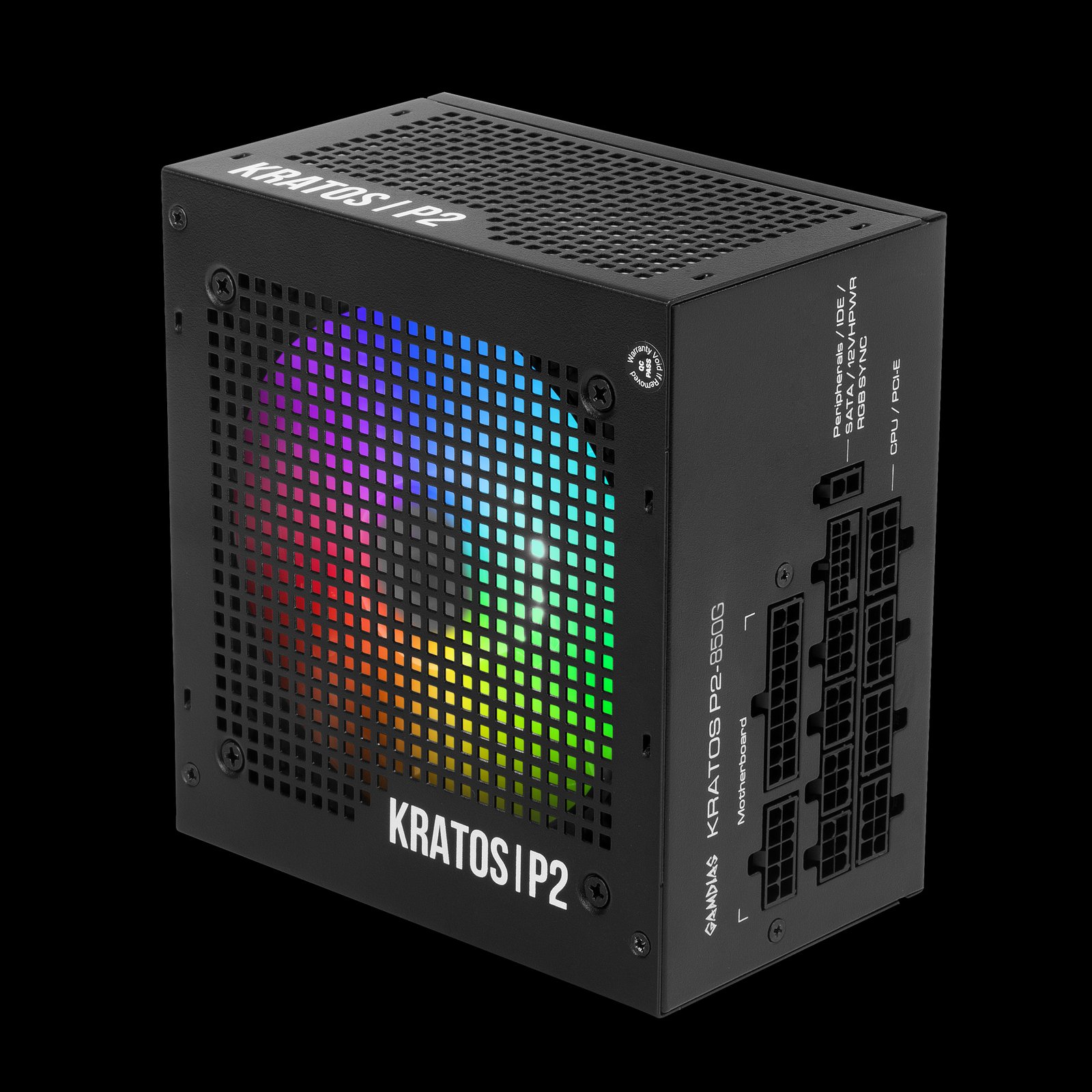

The Gamdias KRATOS P2-850G offers powerful and efficient energy delivery in a compact, fully modular design. With 80 PLUS Gold certification, it ensures up to 90% efficiency, while supporting the latest ATX 3.0 and PCIe Gen 5.0 standards. It comes equipped with a native 12VHPWR cable to power next-gen GPUs and features 100% Japanese industrial-grade capacitors for exceptional durability. The 120mm hydraulic bearing fan runs quietly and efficiently, while 30 built-in addressable RGB lighting effects add visual appeal. Advanced safety protections (OVP, UVP, OPP, SCP, OCP, OTP), DC-to-DC conversion, and LLC resonant design make this PSU a top-tier choice for performance builds.
Features
850W fully modular power supply with high efficiency
80 PLUS Gold certified for superior energy savings
ATX 3.0 and PCIe 5.0 ready with native 12VHPWR support
Equipped with 100% Japanese capacitors for stability

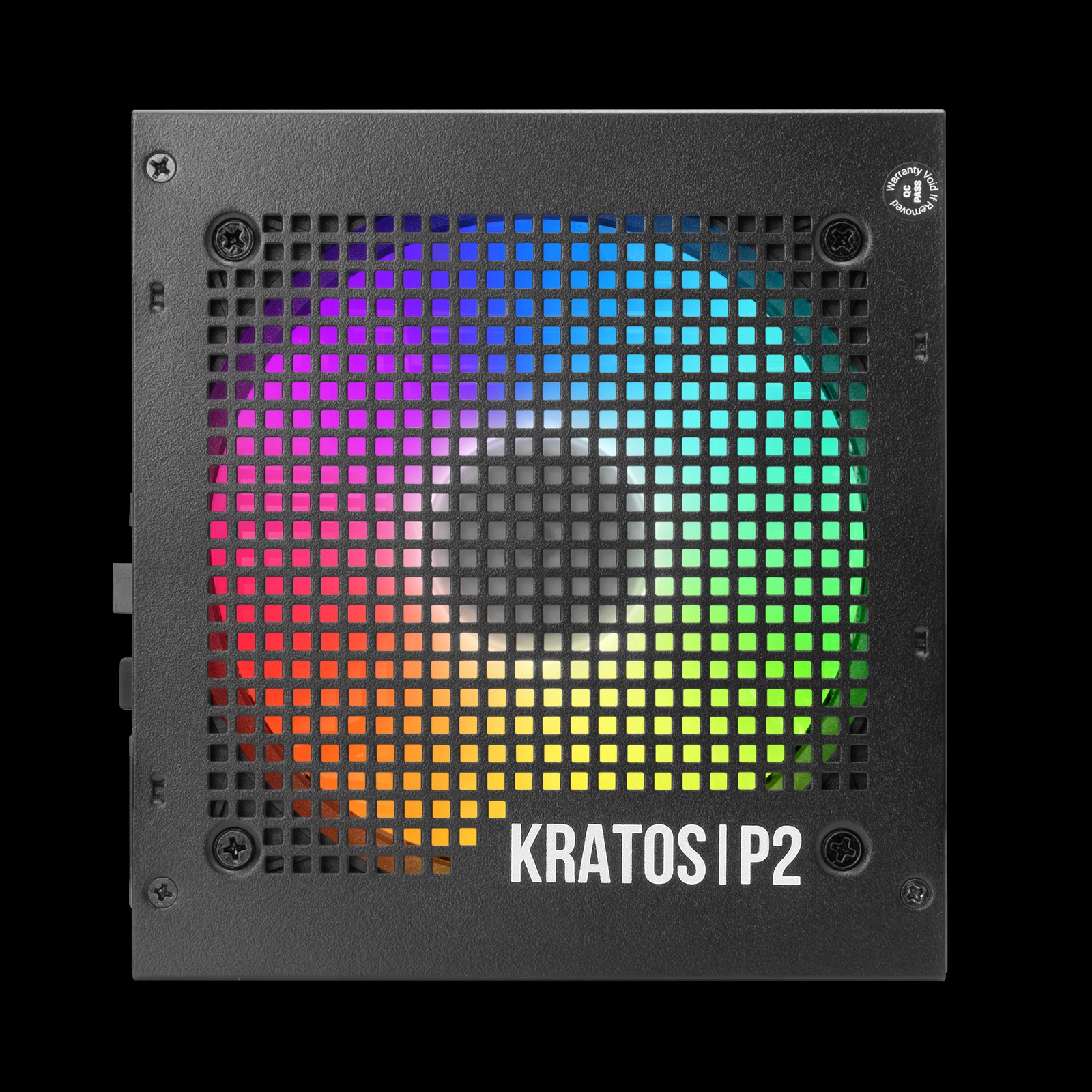

30 built-in Neon-Flex ARGB lighting effects
120mm hydraulic bearing fan ensures silent cooling
DC-to-DC and LLC resonant circuit design for safe, consistent power
Multiple protections: OVP, UVP, OPP, SCP, OCP, OTP
Supports motherboard RGB sync via 5V 3-pin ARGB header
Sleek flat cables for clean and efficient cable routing
Specifications
Model | KRATOS P2-850G |
Brand | GAMDIAS |
Form Factor | ATX12V v3.0 |
Total Power | 850W |
Peak Power | 1105W |
Efficiency | 80 PLUS Gold (up to 90%) |
Power Factor Correction | APFC with PF value of 0.99 |
Modular | Fully Modular |
Flat Cable | Yes |
DC to DC | Yes |
Japanese Capacitors | 100% Industrial-grade |
Lighting Effects | 30 Neon-Flex RGB |
RGB Sync Support | 5V 3-pin Addressable RGB Header |

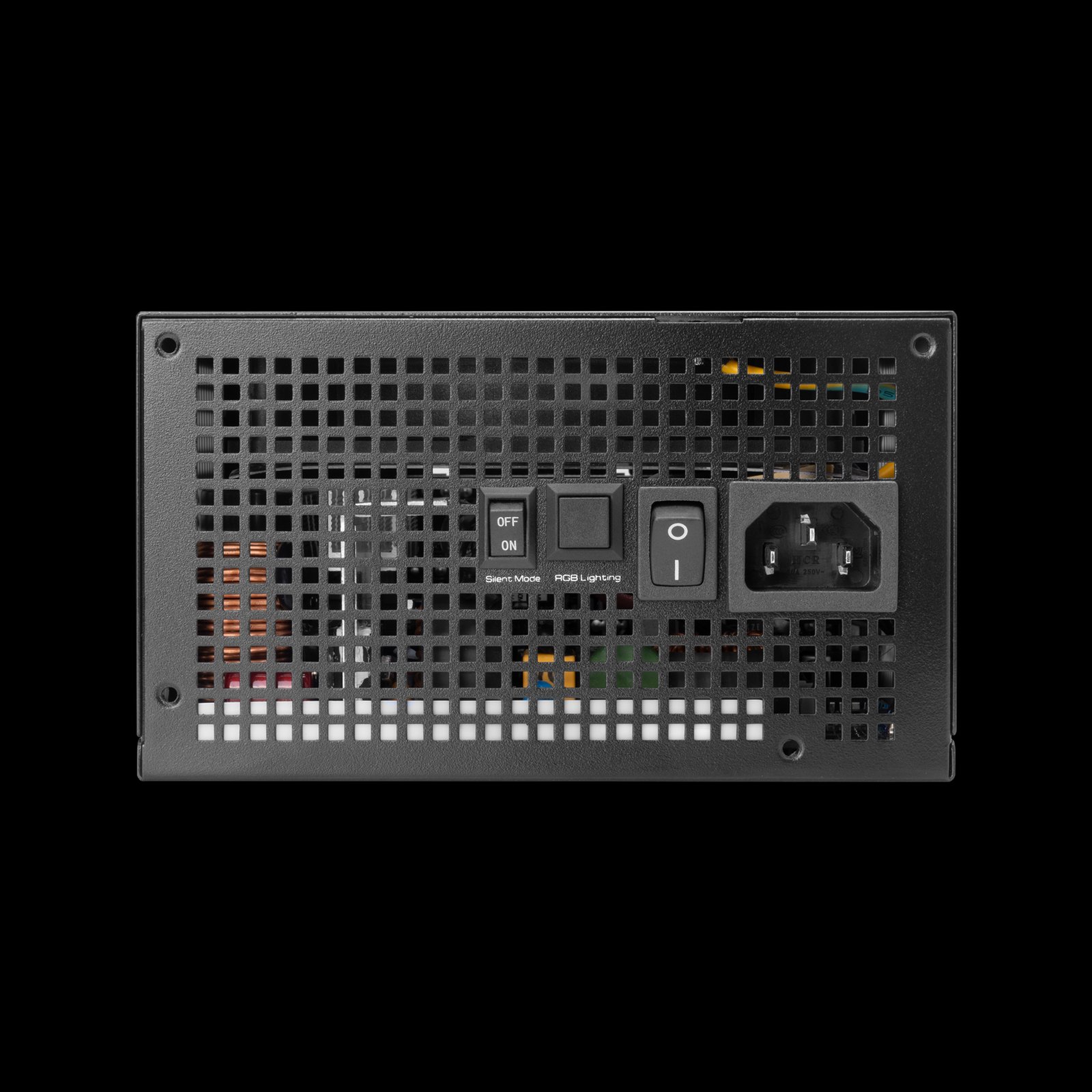

Silent Mode | Yes |
Cooling System | 120mm Hydraulic Bearing Fan |
Support C6/C7 Power State | Yes |
Dimensions (L x W x H) | 140 x 150 x 86 mm |

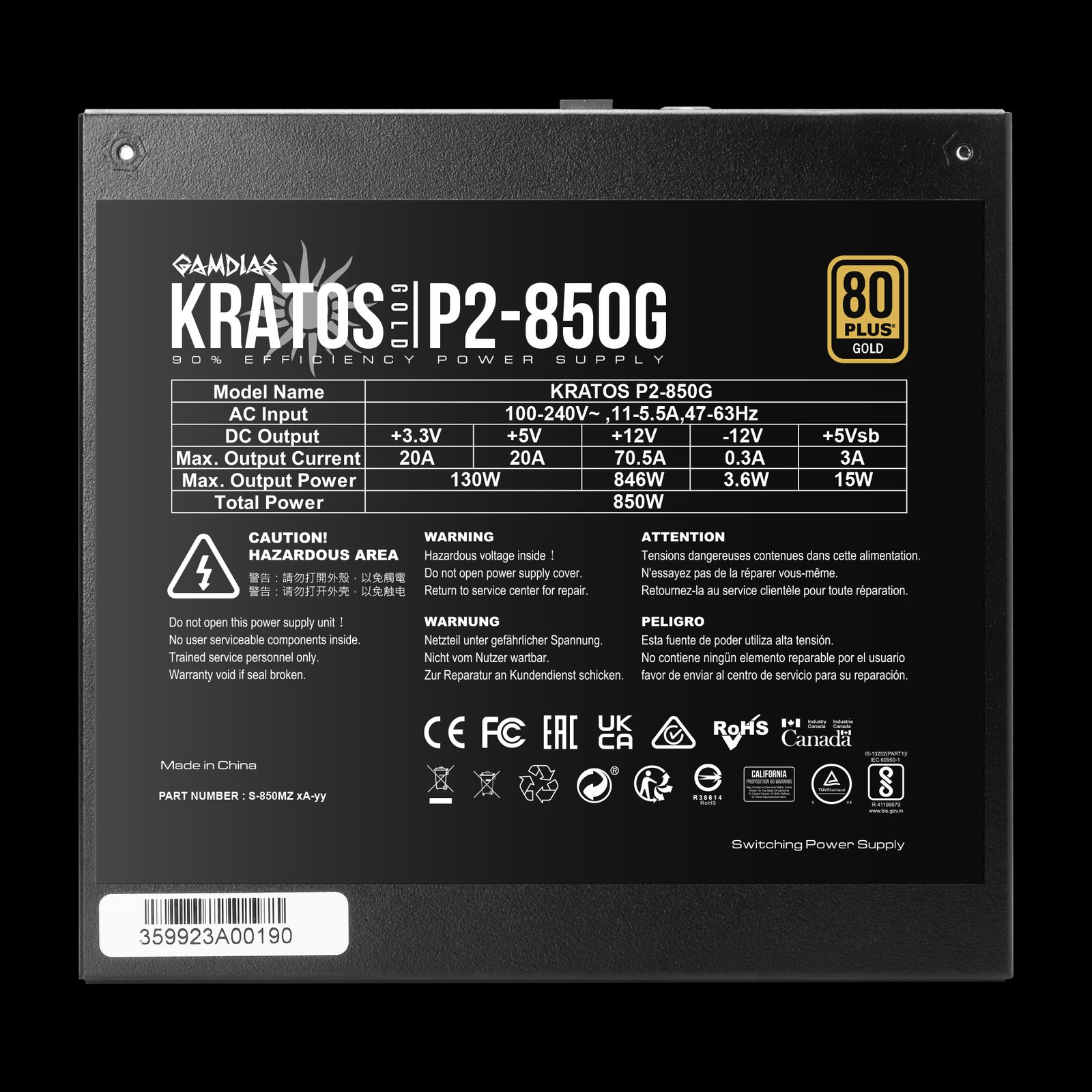

AC Input | 100–240V / 11–5.5A / 47–63Hz |
DC Output Rails | +3.3V, +5V, +12V, –12V, +5Vsb |
Max Output Current | 20A / 20A / 70.5A / 0.3A / 3A |
Max Output Power | 130W / 846W / 3.6W / 15W |

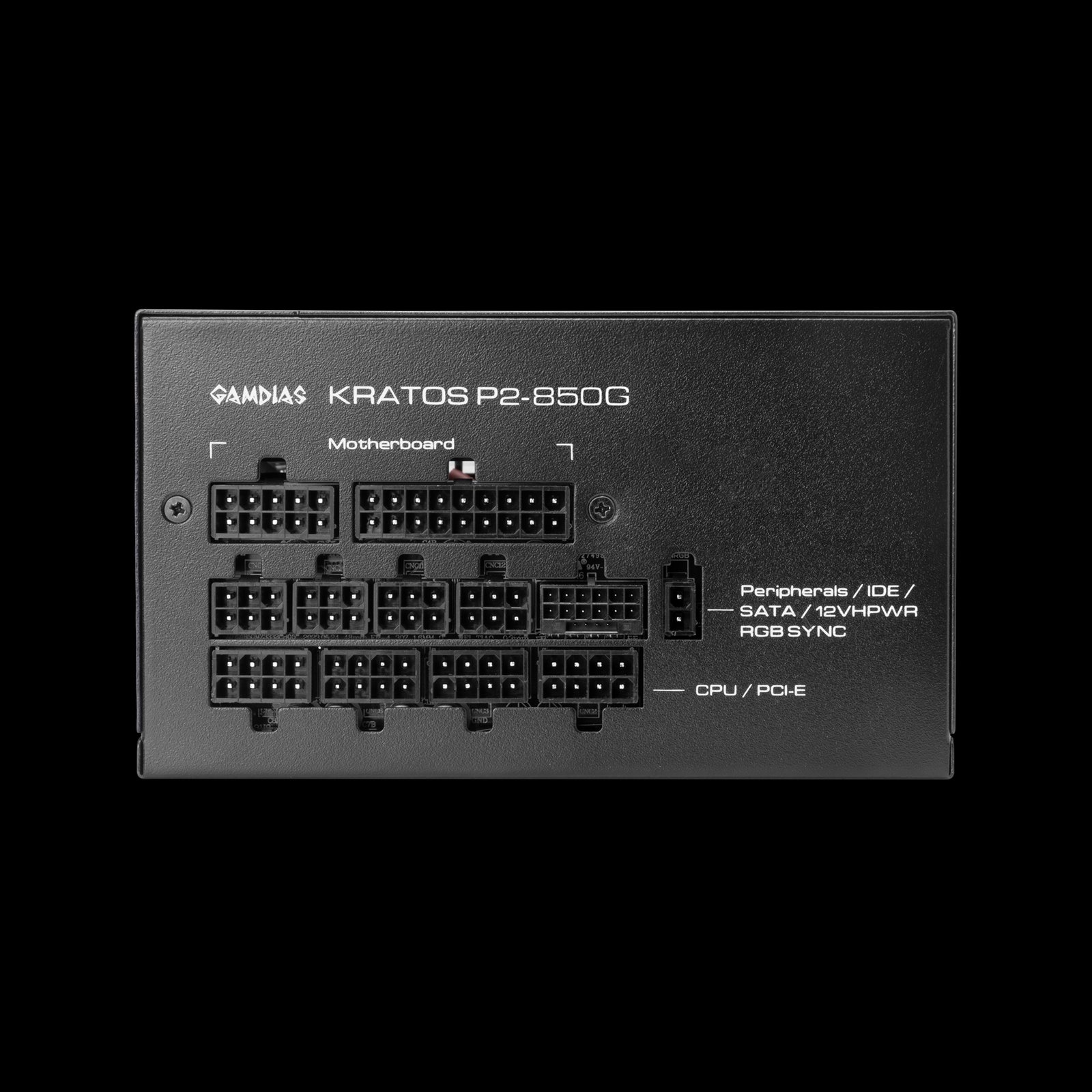

Main Power Connector | 1 x 24 Pin |
CPU Connectors | 2 x 4+4 Pin |
PCI-E Connectors | 4 x 6+2 Pin |
12VHPWR Connector | 1 x 12+4 Pin |
SATA Connectors | 6 |
Molex Connectors | 3 |
Protection Features | OVP / UVP / OPP / SCP / OCP / OTP |
Environmental Compliance | ErP Lot 6 |
Country of Origin | — |
Manufacturer | GAMDIAS |
