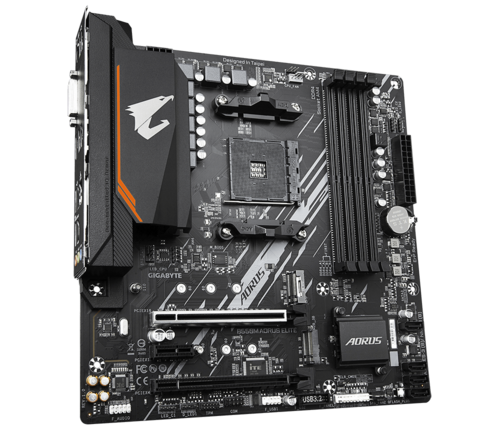

AORUS B550M AORUS Elite
a high-performance micro ATX motherboard designed for 3rd Gen AMD Ryzen processors. Featuring AMD’s B550 chipset, this board supports up to 128GB DDR4 memory and offers PCIe 4.0 support for enhanced bandwidth and faster connectivity. It includes dual M.2 connectors, multiple USB 3.2 ports, and Realtek GbE LAN for stable networking. Onboard HDMI and DVI-D ports enable display connectivity for integrated graphics, while Smart Fan 5 ensures thermal efficiency through advanced fan and sensor management. Designed for gaming and productivity, it also supports RGB Fusion, Q-Flash Plus, and other user-friendly utilities via GIGABYTE’s APP Center.
Features
Supports 3rd Gen AMD Ryzen processors
Dual M.2 connectors for NVMe SSDs
DDR4 memory support up to 128GB
PCIe 4.0 and PCIe 3.0 compatibility
HDMI and DVI-D display outputs
Realtek ALC887 audio codec with 7.1-channel support
Gigabit Ethernet LAN
Smart Fan 5 with hybrid fan headers
RGB Fusion and addressable LED support
Q-Flash Plus BIOS update feature
Robust power design with 5+3 phase digital VRM
Specifications
| Brand | AORUS |
| Model | B550M AORUS Elite |
| CPU Support | AMD Socket AM4; 3rd Gen Ryzen / Ryzen with Radeon Graphics |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM, up to 128GB, Dual Channel, ECC/Non-ECC Unbuffered |
| Memory Speed | Up to 4733 MHz (OC) |
| Graphics Output | 1 x HDMI (4096×2160 @60Hz), 1 x DVI-D (1920×1200 @60Hz) |
| Audio | Realtek ALC887, 2/4/5.1/7.1-channel HD audio |
| LAN | Realtek GbE LAN (10/100/1000 Mbps) |
| Expansion Slots | 1 x PCIe x16 (4.0 or 3.0), 1 x PCIe x16 (x4), 1 x PCIe x1 |
| Storage Interface | 2 x M.2 (PCIe/SATA), 4 x SATA 6Gb/s (RAID 0/1/10 support) |
| USB Ports | Rear: 4 x USB 3.2 Gen 1, 4 x USB 2.0; Internal: 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Internal Headers | RGB/ARGB, Fan, TPM, Audio, Serial, USB, SATA |
| BIOS | 256 Mbit flash, UEFI AMI BIOS |
| Unique Features | Q-Flash Plus, APP Center, Smart Fan 5, RGB Fusion |
| Operating System | Windows 10 64-bit |
| Form Factor | Micro ATX (9.5″” x 9.5″”) |
