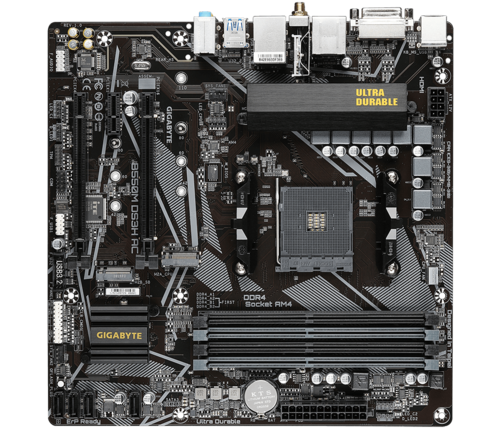

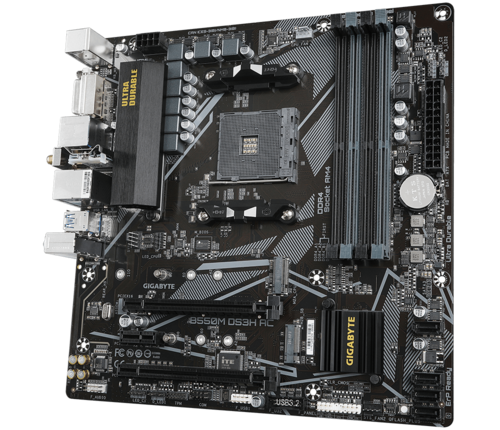

GIGABYTE B550M DS3H AC

A micro-ATX motherboard built to support AMD Ryzen 5000 series and 3rd Gen Ryzen processors, including models with Radeon graphics. Equipped with a 5+3 phase pure digital VRM and Low RDS(on) MOSFETs, it ensures stable power delivery and system reliability. It supports up to 128GB DDR4 memory across four dual-channel DIMM slots. For storage and speed, it features dual NVMe PCIe 4.0/3.0 M.2 connectors and a PCIe 4.0 ready x16 slot. With onboard Intel Dual Band 802.11ac Wi-Fi, Bluetooth 4.2, RGB Fusion 2.0 lighting, and Smart Fan 5 cooling technology, it offers great connectivity, aesthetics, and thermal management for modern gaming or workstation builds.

Features

• Supports AMD Ryzen 5000 Series and 3rd Gen Ryzen Processors (with Radeon Graphics)

• Dual Channel ECC/Non-ECC Unbuffered DDR4, 4 DIMMs

• 5+3 Phases Digital VRM Solution with Low RDS(on) MOSFETs

• Ultra Durable PCIe 4.0 Ready x16 Slot

• Dual NVMe PCIe 4.0/3.0 M.2 Connectors

• Intel Dual Band 802.11ac Wi-Fi and Bluetooth 4.2

• Realtek 8118 Gaming LAN with Bandwidth Management

• RGB Fusion 2.0 with Addressable and RGB LED Strip Support

• Smart Fan 5 with Multiple Temperature Sensors and Hybrid Fan Headers

• Q-Flash Plus: Update BIOS Without CPU, Memory, or GPU

• Anti-Sulfur Resistor Design

• High Quality Audio Capacitors and Audio Noise Guard
