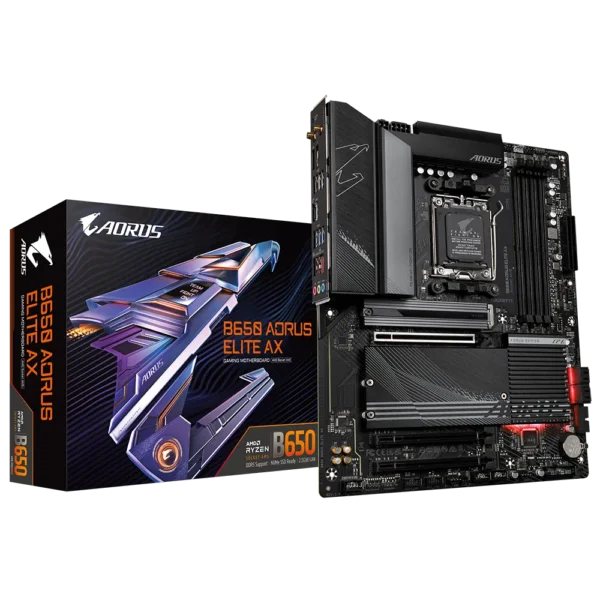

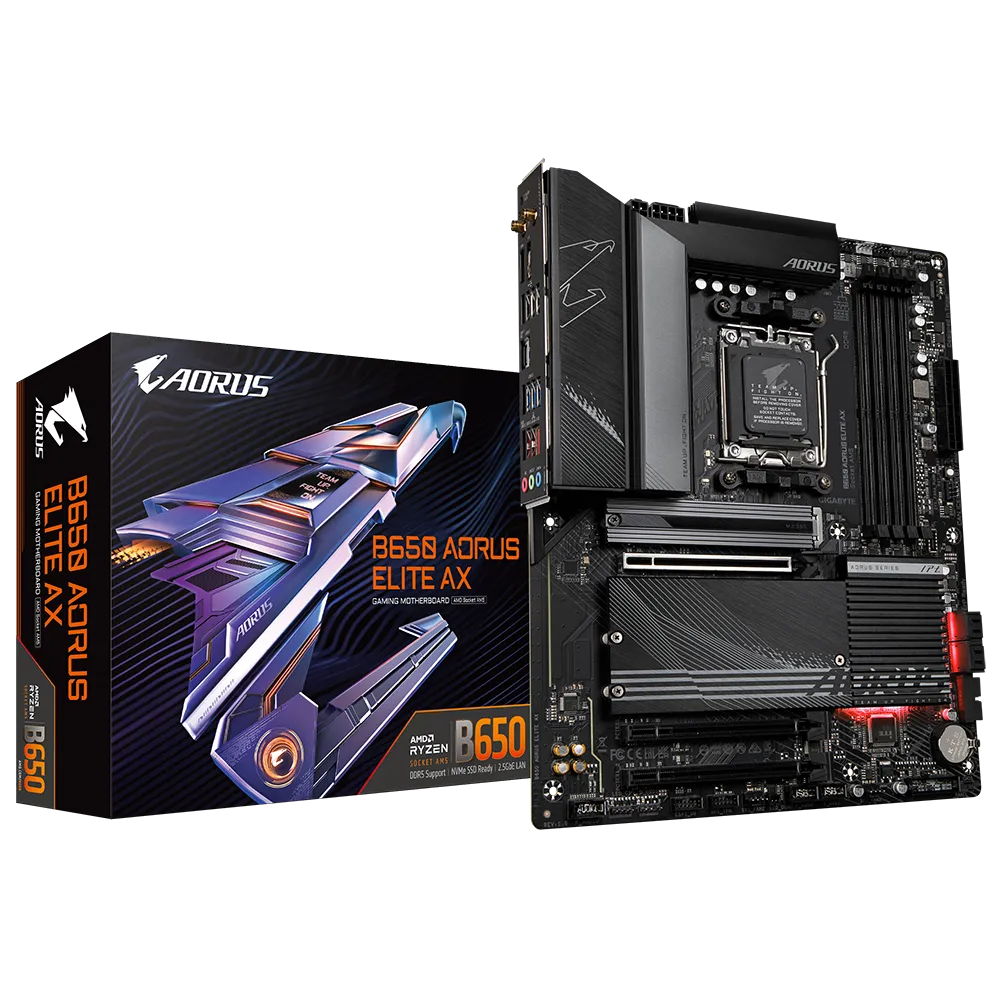

GIGABYTE B650 AORUS ELITE AX
A feature-rich ATX motherboard engineered for AMD Ryzen 7000 Series processors on the AM5 platform. It supports blazing-fast DDR5 memory up to 6666 MHz with AMD EXPO and Intel XMP profiles. Designed for demanding tasks and gaming, it boasts a powerful 14+2+1 phase digital VRM with 70A power stages and an 8-layer 2X copper PCB for stable performance. Thermal efficiency is maintained with a 6mm heatpipe, full MOSFET heatsinks, and M.2 Thermal Guards. Connectivity includes PCIe 5.0, dual USB-C (front and rear), Wi-Fi 6E, Bluetooth 5.0, and 2.5GbE LAN. User-friendly features like EZ-Latch for tool-less upgrades, Smart Fan 6, RGB Fusion, and Q-Flash Plus for BIOS updates make it a top-tier choice for PC enthusiasts and creators.
Features
Supports AMD Ryzen 7000 Series Processors on Socket AM5
4x DDR5 DIMM slots with AMD EXPO & Intel XMP support
Twin 14+2+1 Phase VRM with 70A power stages for superior power delivery
PCIe 5.0 x16 GPU slot and PCIe 5.0 NVMe M.2 support
M.2 Thermal Guard, 6mm heatpipe, full MOSFET heatsinks for optimal cooling
EZ-Latch for screwless PCIe and M.2 installation
2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.0
Dual USB-C (front and rear), USB 2.0 x2
RGB FUSION: Addressable & standard RGB LED headers
Smart Fan 6 with multiple hybrid fan headers and temp sensors
Q-Flash Plus: Update BIOS without installing CPU, RAM, or GPU
5-Year Warranty
Specifications
| Brand | GIGABYTE |
| Series | B650 AORUS ELITE AX |
| Model Number | B650 AORUS ELITE AX |
| CPU Socket | AM5 |
| Chipset Type | AMD B650 |
| Compatible Processors | AMD Ryzen 7000 Series |
| CPU Model (Listed) | Athlon (Note: likely an error; only Ryzen 7000 is officially supported) |
| RAM Memory Technology | DDR5 |
| Memory Clock Speed | 6666 MHz |
| Memory Slots | 4 x DDR5 DIMM slots |
| Max Memory Capacity | Not officially listed (typically 128 GB) |
| Platform | Windows |
| PCIe Support | PCIe 5.0 x16 (GPU), PCIe 5.0 NVMe x4 M.2 |
| M.2 Slots | Yes, with M.2 Thermal Guards |
| SATA Ports | Yes (Exact number not listed) |
| USB Ports | USB 2.0 x2, Front and Rear USB-C, others not listed |
| LAN | 2.5GbE Ethernet |
| Wireless Standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Bluetooth 5.0 |
| Audio | Hi-Fi Audio with premium capacitors |
| RGB Support | RGB Fusion with addressable & standard RGB LED headers |
| Cooling | Smart Fan 6, 6mm heatpipe, full MOSFET heatsinks |
| BIOS | Q-Flash Plus, UEFI BIOS |
| Expansion Features | EZ-Latch for PCIe & M.2 slots |
| Form Factor | ATX |
| Dimensions (LxWxH) | 10.62 x 3.14 x 13.18 inches |
| Weight | 4.35 pounds |
| Warranty | 5 Years |
| Country of Origin | China |
| ASIN | B0BH7GTY9C |
| Date First Available | October 10, 2022 |
