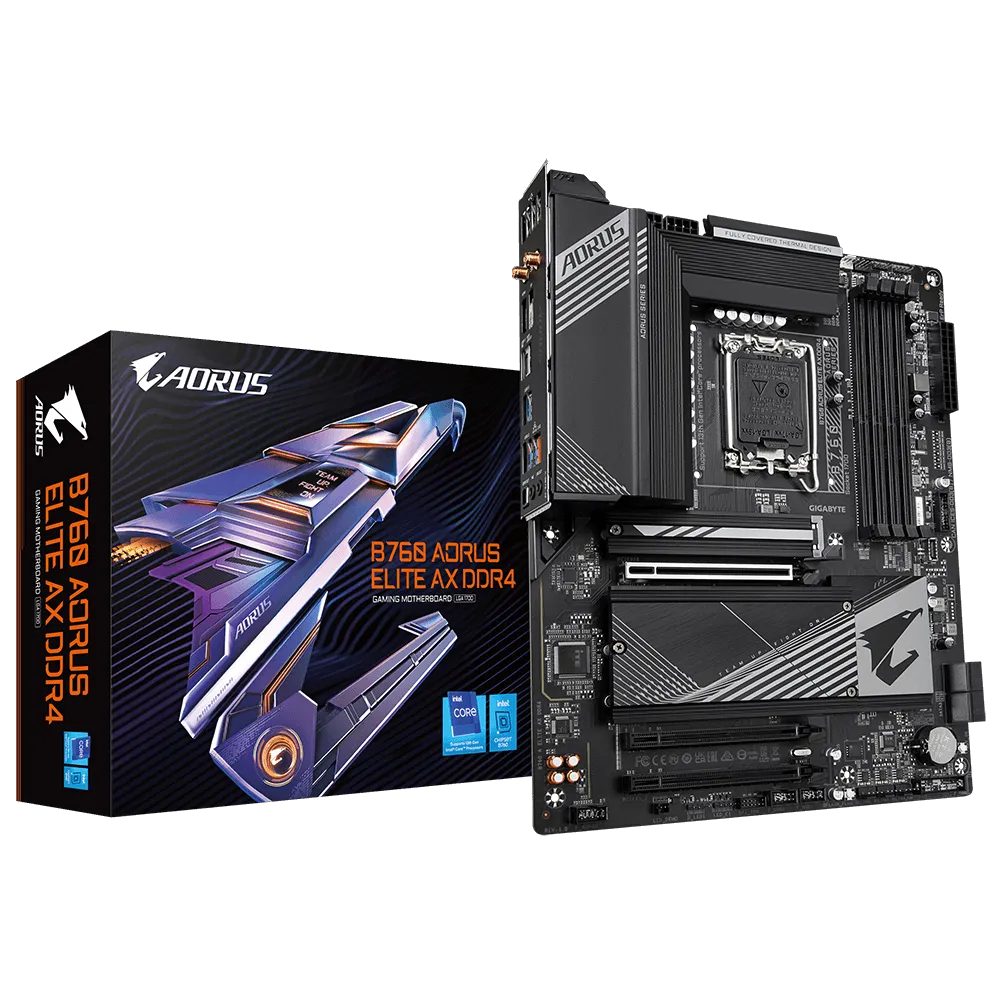

GIGABYTE B760 A ELITE AX DDR4 Motherboard

This ATX motherboard is built to support the latest 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors on the LGA1700 socket. Featuring a 12+1+1 Twin Hybrid Digital VRM power phase design, it ensures unparalleled performance and power efficiency. The board supports high-speed DDR4 memory up to 5333 MHz (OC), dual-channel architecture, and 4 DIMM slots with XMP support.

With three PCIe 4.0 x4 M.2 connectors and four SATA 6Gb/s ports, it offers flexible and next-gen storage capabilities. Its advanced thermal design, including fully covered MOSFET heatsinks, M.2 Thermal Guards, and Smart Fan 6 technology, ensures reliable performance under high loads. Connectivity is future-ready with USB-C® 10Gb/s (rear and front), DisplayPort, HDMI, 2.5GbE LAN, and Wi-Fi 6E.

It also boasts DIY-friendly features like Q-Flash Plus for BIOS updates without a CPU and EZ-Latch Plus for tool-free M.2 installation. Designed for gamers and power users, it includes integrated I/O shield, reinforced PCIe slots, and GIGABYTE Control Center for easy system tuning.

Features

• Supports Intel® Core™ 14th, 13th & 12th Gen processors (LGA1700)

• 12+1+1 Twin Hybrid Phases Digital VRM for stable power delivery

• Dual Channel DDR4, up to 5333 MHz (OC), 4 DIMM slots with XMP support

• 3 x PCIe 4.0 x4 M.2 slots with EZ-Latch Plus and Thermal Guard

• Realtek® 2.5GbE LAN and Intel® Wi-Fi 6E with Bluetooth 5.3

• USB-C® 10Gb/s ports (rear and front), HDMI 2.1, and DisplayPort 1.2

• Advanced cooling: Fully covered heatsinks, 2X copper PCB, Smart Fan 6

• PCIe 4.0 x16 reinforced slot with Ultra Durable Armor

• DIY features: Q-Flash Plus, pre-installed I/O shield, reset jumper

• GIGABYTE Control Center software for full customization

Specifications
