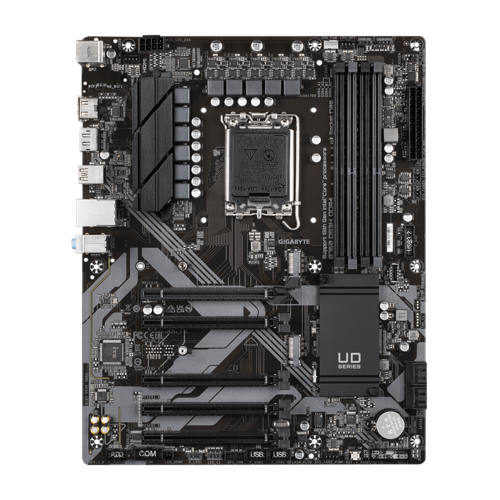

GIGABYTE B760 DS3H DDR4
The GIGABYTE B760 DS3H DDR4 is an ATX motherboard designed to deliver powerful and stable performance with support for the latest 14th, 13th, and 12th Gen Intel Core processors. With a hybrid 8+2+1 phase digital VRM solution, dual PCIe 4.0 M.2 slots, and dual-channel DDR4 memory support, it’s tailored for gamers and PC builders seeking speed and reliability. The board also offers extended connectivity with USB-C 20Gb/s, HDMI, DisplayPort, and Realtek GbE LAN. Additional features include Smart Fan 6, Q-Flash Plus for BIOS updates without a CPU, and GIGABYTE Control Center for easy system management.
Features
-
Supports Intel 14th/13th/12th Gen processors (LGA1700)
-
Dual PCIe 4.0 x4 M.2 slots for next-gen storage
-
8+2+1 Hybrid Digital VRM design for stable power delivery
-
DDR4 5333(O.C.) memory support up to 128 GB
-
Rear USB-C 20Gb/s, HDMI, DisplayPort
-
Realtek GbE LAN for fast and reliable networking
-
Smart Fan 6 with temperature sensors and hybrid headers
-
Q-Flash Plus allows BIOS update without CPU/RAM/GPU
-
Integrated RGB and addressable LED headers
-
Enhanced audio with high-end capacitors and noise guard
Specifications
| CPU Support | Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron (LGA1700 socket) |
| Chipset | Intel B760 Express Chipset |
| Memory | 4x DDR4 DIMM sockets, up to 128GB, 5333(O.C.) MHz max |
| Storage | 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s, RAID 0/1/5/10 |
| Expansion Slots | 1x PCIe 4.0 x16, 4x PCIe 3.0 x1 |
| Graphics Outputs | 1x HDMI 2.1, 1x DisplayPort 1.2 |
| Audio | Realtek HD Audio, 2/4/5.1/7.1 channel, S/PDIF Out support |
| LAN | Realtek GbE LAN (1 Gbps) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2×2, 1x USB 3.2 Gen 2 Type-A, 4x USB 2.0, HDMI, DP |
| Internal Connectors | USB-C, USB 3.2 Gen 1, USB 2.0, RGB/ARGB headers, M.2, SATA |
| Cooling Support | CPU fan, pump headers, 3x system fans, Smart Fan 6 |
| BIOS | 128Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus |
| Software | GIGABYTE Control Center, Norton Security (OEM), LAN software |
| OS Support | Windows 11/10 64-bit |
| Form Factor | ATX, 30.5 cm x 24.4 cm |
