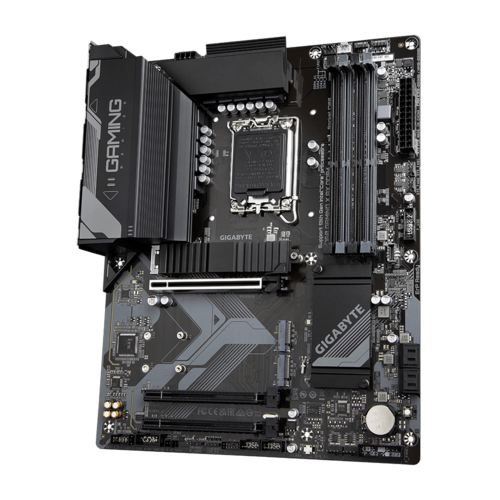

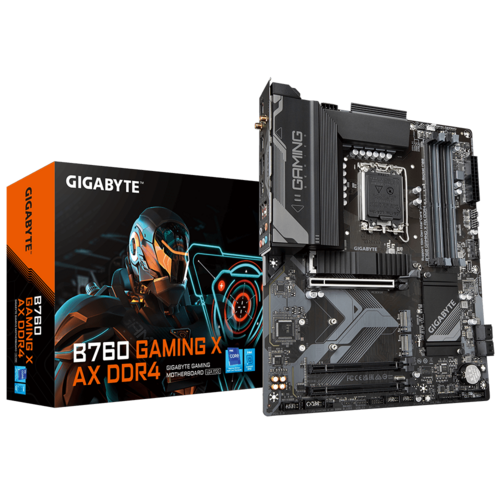

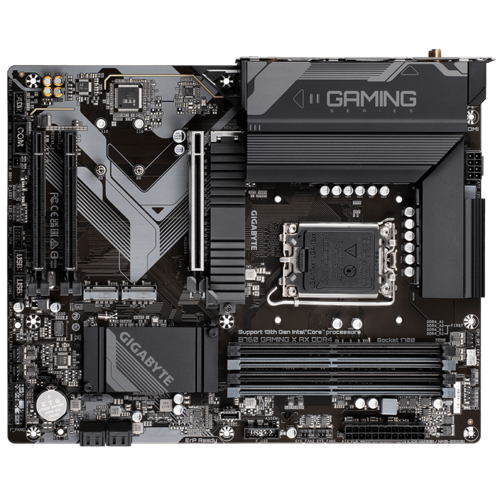

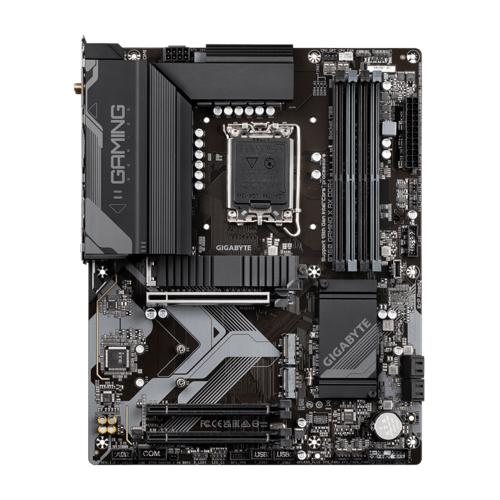

The GIGABYTE B760 GAMING X AX DDR4
An ATX motherboard built for gamers and performance enthusiasts. It supports Intel® Core™, Pentium® Gold, and Celeron® processors from the 14th, 13th, and 12th generations on the LGA1700 socket, paired with DDR4 memory up to 5333 MHz (OC). The board features robust graphics output through HDMI 2.1 and DisplayPort, Realtek® 2.5GbE LAN, and integrated Wi-Fi 6E for ultra-fast connectivity. With triple M.2 slots, PCIe 4.0 support, customizable RGB headers, and comprehensive fan/water pump controls, it ensures optimal performance and thermal management. Ideal for builders looking for reliability, speed, and expandability.
Features
-
LGA1700 socket supports latest Intel® processors
-
DDR4 memory up to 5333 MHz (OC), dual-channel up to 128 GB
-
HDMI 2.1 & DisplayPort video outputs with 4K support
-
Realtek® 2.5GbE LAN + Wi-Fi 6E + Bluetooth 5.2
-
Triple M.2 slots with PCIe 4.0 x4/x2 SSD support
-
10 USB ports on rear panel including USB 3.2 Gen 2 Type-A
-
RGB and ARGB headers for lighting customization
-
Full fan control with support for water cooling
-
Q-Flash & Q-Flash Plus BIOS update support
-
ATX form factor with multiple expansion options
Specifications
| CPU | LGA1700 socket, supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron® processors |
| Chipset | Intel® B760 Express |
| Memory | 4 x DDR4 DIMM, up to 128 GB, supports XMP and ECC/non-ECC un-buffered modules |
| Onboard Graphics | 1 x HDMI 2.1, 1 x DisplayPort 1.2 (resolution up to 4096×2160@60Hz) |
| Audio | Realtek® Audio CODEC, 7.1-channel, HD Audio, S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN |
| Wireless Communication | AMD Wi-Fi 6E RZ608 (802.11ax), Bluetooth 5.2 |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 2 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 3 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s, RAID 0/1/5/10 support |
| USB | 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 5 x USB 2.0 (Rear), 1 x USB 3.2 Gen 2 Type-C (Front) |
| Internal I/O | USB headers (3.2 Gen 1, Gen 2, 2.0), M.2, SATA, RGB/ARGB, CPU/system fan headers, TPM, audio, etc. |
| Back Panel Connectors | 1 x DisplayPort, 1 x HDMI, 6 x Audio jacks, 2 x SMA antenna, RJ-45, USB ports |
| I/O Controller | iTE® I/O Controller |
| H/W Monitoring | Voltage, temperature, fan speed, flow rate, fail warning, fan/pump control |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, Q-Flash, Q-Flash Plus |
| Unique Features | GIGABYTE Control Center, RGB Fusion, Smart Fan 6, Reset/CMOS/Flash Buttons |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth manager |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
