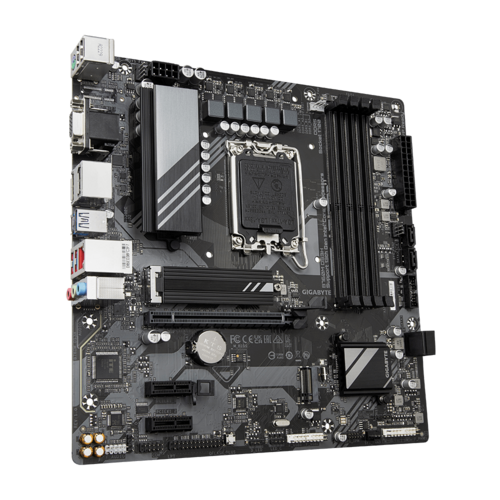

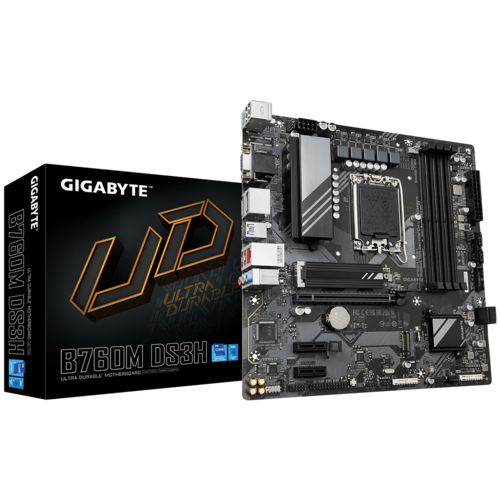

The GIGABYTE B760M DS3H

Engineered for Intel’s latest 14th, 13th, and 12th Gen Core processors and offers exceptional performance with its hybrid 6+2+1 phase VRM design. It features dual-channel DDR5 support, full PCIe 4.0 compatibility, and dual PCIe 4.0 x4 M.2 connectors with a thermal guard for optimal SSD performance. Its enhanced thermal design, 2.5GbE LAN, and rear USB-C 10Gb/s port provide high-speed connectivity and stability. Built for durability, personalization, and modern needs, it includes Smart Fan 6, Q-Flash Plus BIOS update, and support for up to four displays.

Features

• Supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors

• 6+2+1 phase hybrid digital VRM with low RDS(on) MOSFETs

• Dual-channel DDR5 memory, up to 7600 MT/s (OC), 4 DIMMs, 256GB max

• 2 x PCIe 4.0 x4 M.2 connectors with M.2 Thermal Guard

• PCIe 4.0 x16 slot with EZ-Latch quick release

• Intel® B760 Express chipset

• Realtek® 2.5GbE LAN

• Rear USB Type-C® 10Gb/s, HDMI 2.1, DP 1.2

• Integrated Intel HD graphics support (up to 4 displays)

• Smart Fan 6 with hybrid fan headers & FAN STOP

• Q-Flash Plus for BIOS update without CPU/GPU/RAM

• Micro ATX form factor (24.4cm x 24.4cm)

Specifications
