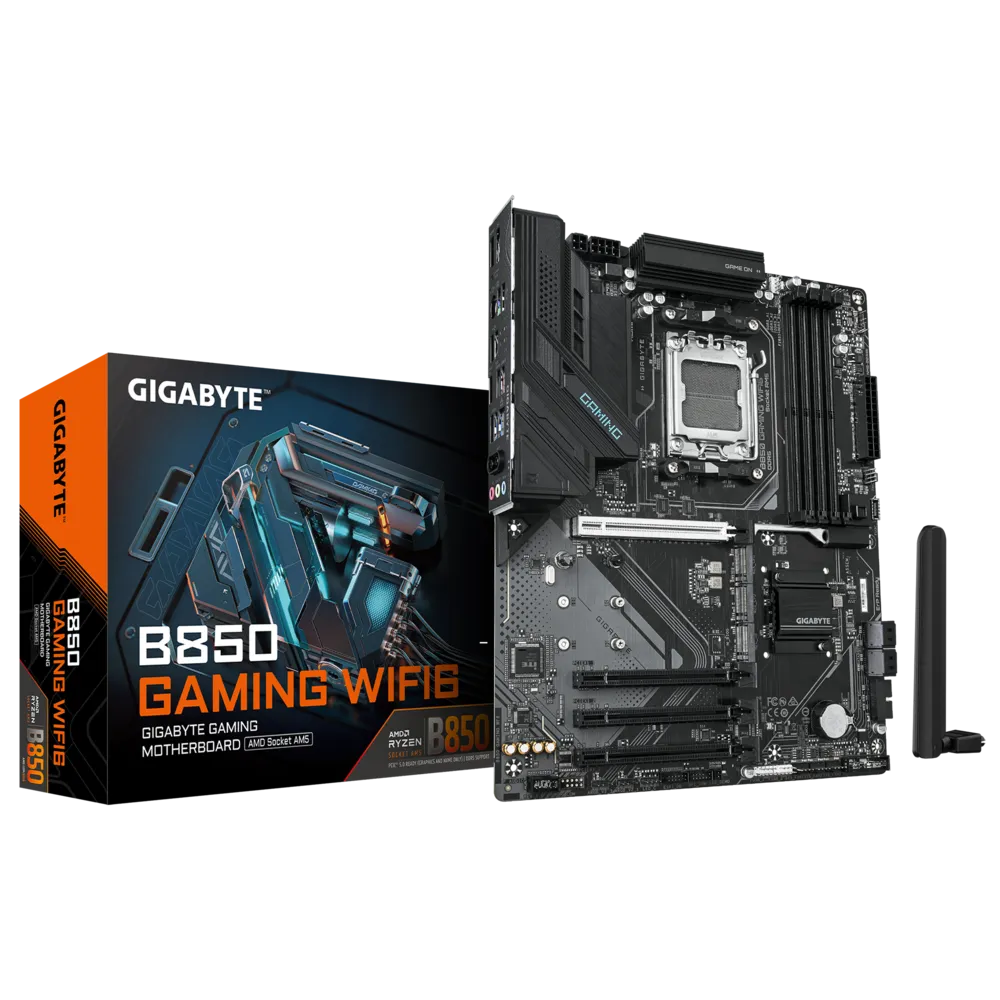

GIGABYTE B850 Gaming WIFI6

B850 GAMING WIFI6 sets the bar for high-performance gaming motherboards. Designed for AMD Ryzen™ 9000/8000/7000 Series processors, it features a 6+2+2 Digital VRM design, a 6-layer mid-loss PCB, and premium components for rock-solid power delivery. With support for up to DDR5 8200 MT/s memory and advanced AI-driven D5 Bionic Corsa overclocking, it pushes the limits of memory performance.

Gaming is redefined with X3D Turbo Mode, offering one-click optimization for Ryzen X3D-like performance, even on non-X3D CPUs. Thermals are managed by full-metal heatsinks, 5W/mK thermal pads, and Smart Fan 6 technology. DIY users will appreciate tool-free M.2 EZ-Latch Plus, PCIe EZ-Latch Plus, and a robust debug zone with Q-FLASH support.

The board also includes blazing-fast connectivity options: Wi-Fi 6, Realtek 2.5 GbE LAN, three PCIe M.2 slots (including one PCIe 5.0), USB 3.2 Gen 2 Type-A & Type-C ports, and Realtek HD Audio with premium capacitors. Built on GIGABYTE’s Ultra Durable™ platform, it ensures long-lasting reliability and gaming-grade endurance.

Features

• Supports AMD Ryzen™ 9000/8000/7000 Series processors

• DDR5 memory support up to 8200 MT/s with D5 Bionic Corsa AI overclocking

• 6+2+2 phase digital VRM design with 60A DrMOS

• X3D Turbo Mode: One-click FPS performance boost

• 3x M.2 slots including 1x PCIe 5.0 x4

• Full-length PCIe 5.0 x16 slot with PCIe UD reinforcement

• Comprehensive thermal design with large heatsinks and 5 W/mK pads

• Wi-Fi 6 + Bluetooth 5.3 + Realtek 2.5 GbE LAN

• DIY-friendly: EZ-Latch Plus, debug LEDs, Q-Flash, and more

• RGB Fusion, GIGABYTE Control Center, and UEFI BIOS with grayscale mode

Specifications
