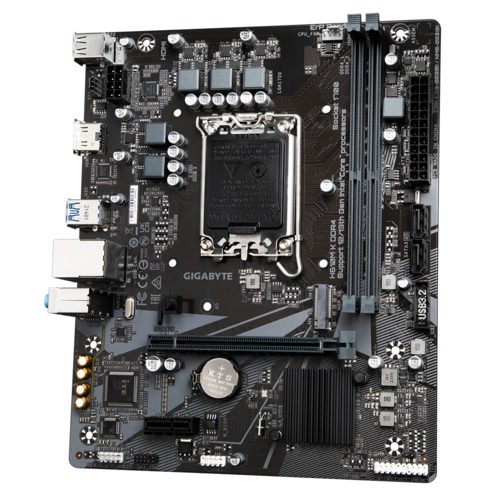

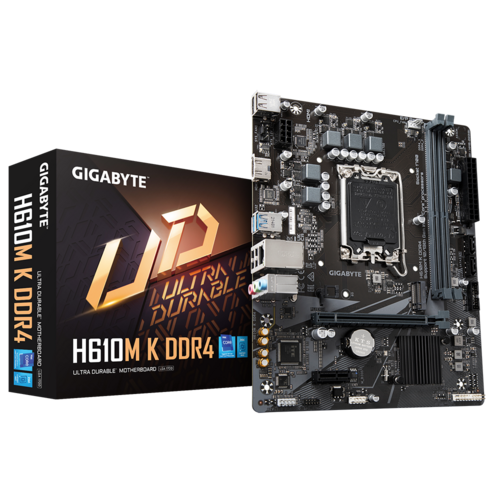

The GIGABYTE H610 motherboard is built for stable performance and durability, supporting Intel’s latest 14th, 13th, and 12th generation processors on the LGA1700 socket. With support for PCIe 4.0 graphics, PCIe 3.0 M.2 storage, and dual-channel DDR4 memory up to 64GB, this board provides a strong foundation for both everyday use and advanced computing. The inclusion of Smart Fan 6 ensures intelligent cooling with hybrid fan headers and temperature sensors. Audio is enhanced by high-quality capacitors and an Audio Noise Guard, while the Anti-Sulfur resistor design adds longevity to your components. The GIGABYTE APP Center and EasyTune software make system customization and performance optimization simple for any user.
Features
-
Supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors
-
Dual Channel DDR4, 2 DIMMs, up to 64GB
-
1 x PCIe 4.0 x16 slot and 1 x PCIe 3.0 x1 slot
-
1 x PCIe 3.0 x4 M.2 slot and 2 x SATA 6Gb/s ports
-
Smart Fan 6 with multiple temp sensors and FAN STOP
-
Realtek GbE LAN with bandwidth management software
-
High-end audio capacitors and Audio Noise Guard
-
Solid Pin 8-pin ATX 12V power connector
-
Anti-Sulfur resistors for enhanced durability
-
GIGABYTE APP Center, EasyTune, Q-Flash, and System Viewer
-
Micro ATX form factor (22.6cm x 18.5cm)
Specifications
| CPU Support | Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron® (LGA1700) |
| Chipset | Intel® H610 Express |
| Memory | 2 x DDR4 DIMMs, up to 64GB (supports 3200/3000/2933/2666/2400/2133 MT/s) |
| Memory Architecture | Dual-channel, Non-ECC/Unbuffered, XMP Support |
| Graphics | Integrated GPU (via CPU), HDMI (4096×2160@60Hz) |
| Audio | Realtek® Audio CODEC, 8-channel HD Audio, Audio Noise Guard |
| LAN | Realtek® GbE LAN, 1 Gbps with bandwidth management |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage Interfaces | 1 x M.2 (PCIe 3.0 x4/x2), 2 x SATA 6Gb/s |
| USB Ports | 4 x USB 3.2 Gen1 (2 rear, 2 internal), 6 x USB 2.0/1.1 (4 rear, 2 internal) |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V (Solid Pin) |
| Cooling Features | Smart Fan 6, 1 x CPU fan header, 1 x system fan header |
| Internal I/O | Front panel, audio header, USB headers, TPM header, Clear CMOS jumper |
| Back Panel I/O | 1 x HDMI, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45, 3 x audio jacks |
| BIOS | AMI UEFI BIOS, 128 Mbit flash, Q-Flash, ACPI 5.0 |
| Software | APP Center, EasyTune, Smart Backup, System Viewer, @BIOS |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth manager |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (22.6cm x 18.5cm) |
