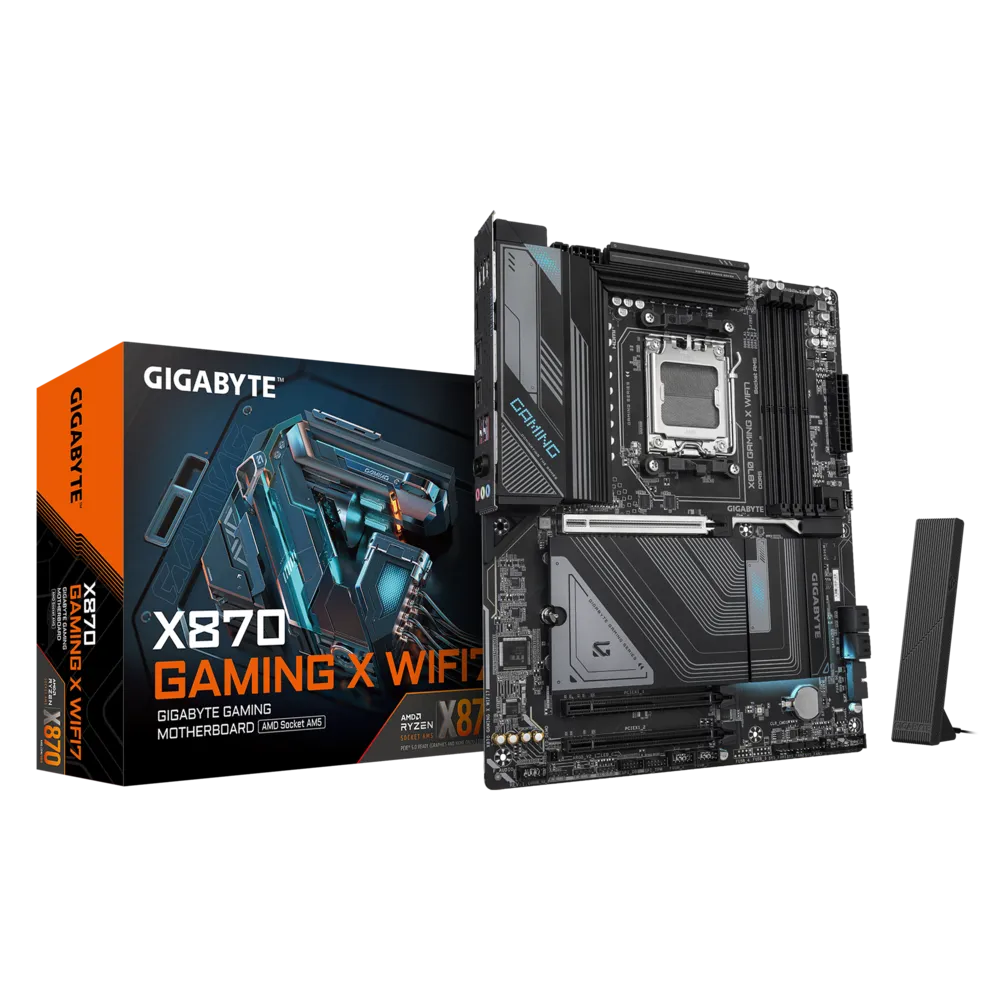

GIGABYTE X870 Gaming X WIFI7

Built for AMD Ryzen™ 9000, 8000, and 7000 series processors, this advanced AMD Socket AM5 motherboard delivers elite performance with a robust 16+2+2 phase twin digital VRM and superior thermal solutions like VRM Thermal Armor Advanced. With DDR5 memory support up to 8200 MT/s, triple M.2 slots (including one PCIe 5.0), and dual-channel architecture, it ensures rapid data access and multitasking capabilities.

The board stands out with Wi-Fi 7, 2.5GbE LAN, dual USB4 Type-C ports with DisplayPort-Alt Mode, and intuitive software features like GIGABYTE Control Center, RGB Fusion, and UC BIOS. Innovative build tools like PCIe EZ-Latch Plus and M.2 EZ-Latch Click make setup effortless. With features like AORUS AI Snatch, Auto DDR5 Boost, and advanced debug zones, it caters to enthusiasts, gamers, and creators alike.

Features

• Supports AMD Ryzen™ 9000/8000/7000 Series CPUs (Socket AM5)

• Twin Digital VRM Design with 16+2+2 phases for stable overclocking

• DDR5 support up to 8200 MT/s (OC), 4 DIMMs, 256GB max

• 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0), 4x SATA 6Gb/s

• 1x PCIe 5.0 x16 slot for graphics, 2x PCIe 3.0 x1

• Wi-Fi 7 and Realtek® 2.5GbE LAN for ultra-fast networking

• Dual USB4 Type-C ports with DisplayPort Alt Mode

• EZ-Latch Plus and M.2 EZ-Latch Click for tool-less assembly

• AORUS AI Snatch: One-click DDR5 memory performance boost

• Comprehensive thermal design with VRM Thermal Armor Advanced

• UC BIOS with Q-Flash Auto Scan and Q-Flash Plus

• Hi-Fi audio with Realtek® codec, high-end capacitors, and audio guard

• RGB Fusion, Debug LEDs, Power/Reset Buttons, and TPM header

• GIGABYTE Control Center for unified system management

Specifications
