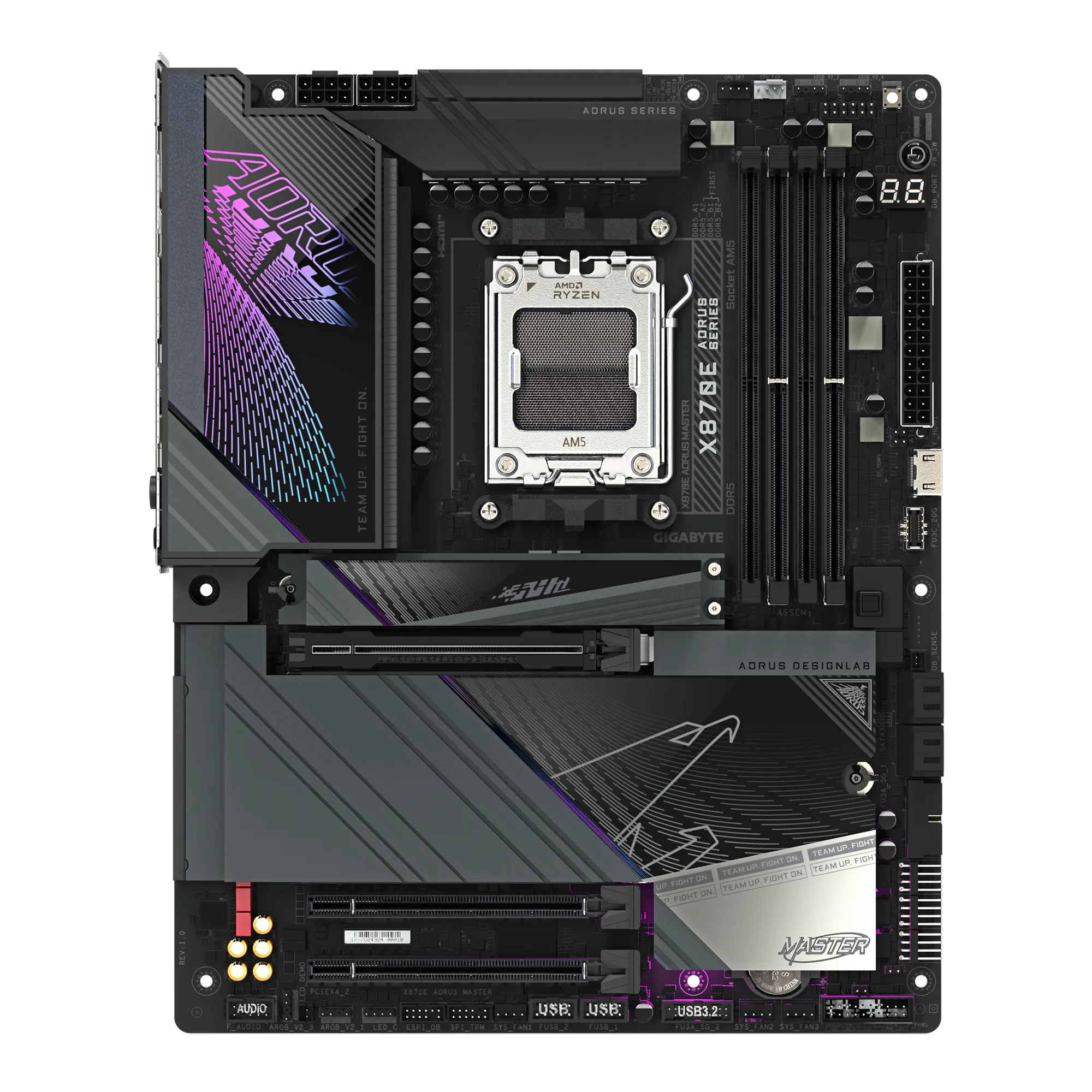

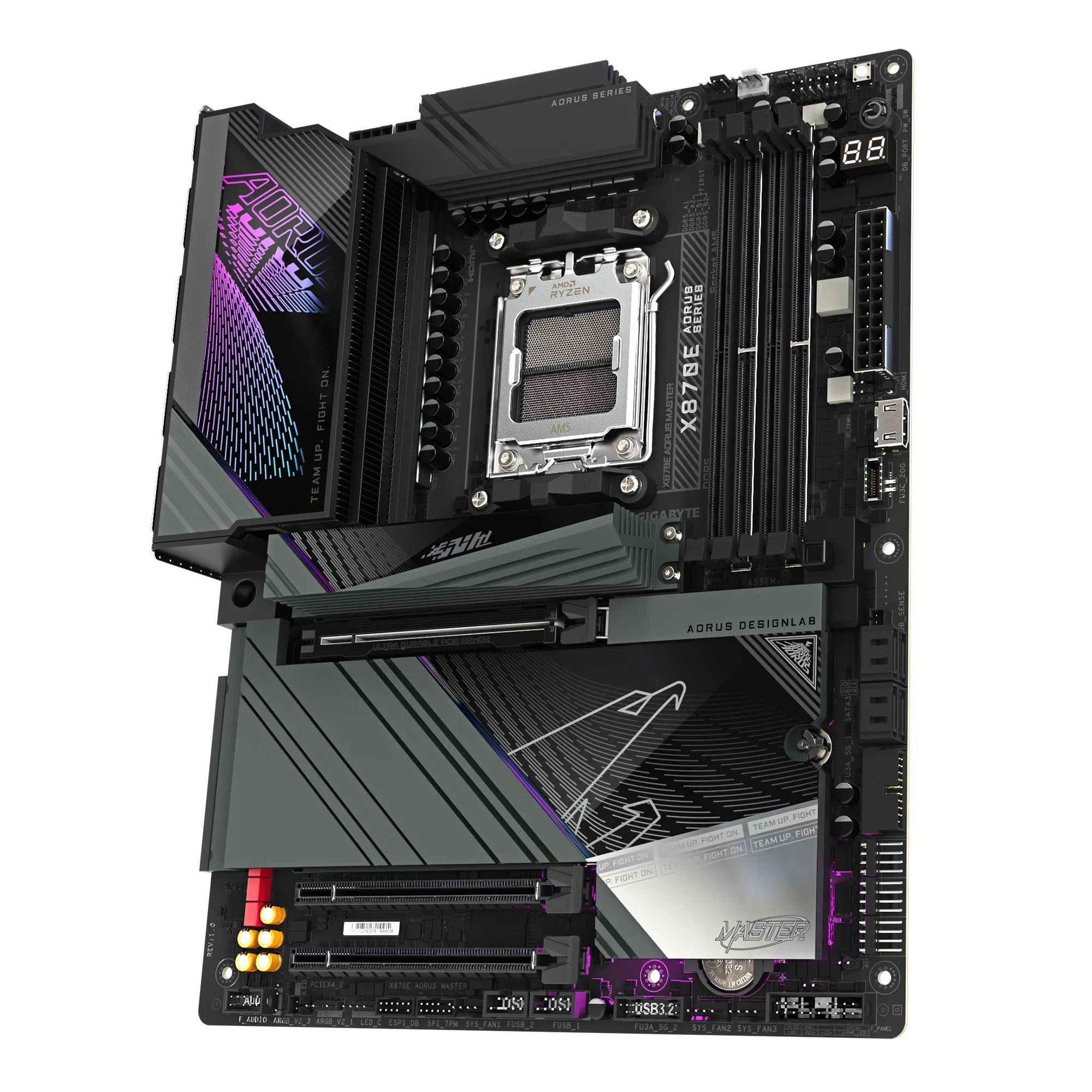

GIGABYTE X870E AORUS Master Motherboard
Engineered for enthusiasts who demand cutting-edge performance, supreme reliability, and seamless connectivity. Supporting the latest AMD Ryzen™ 9000/8000/7000 Series processors via Socket AM5, this board is built with a twin digital 16+2+2 phase VRM design to deliver stable power under extreme loads. It supports DDR5 memory up to a staggering 8600MT/s (OC), complemented by DDR Wind Blade active cooling for memory modules.
DIY-friendly innovations like EZ-Latch Click for screwless M.2 installation and Sensor Panel Link for onboard display connectivity make building easier and cleaner. With 4x M.2 slots including 3x PCIe 5.0, ultra-fast USB4 Type-C, Realtek ALC1220 HD audio, and blazing-fast 5GbE LAN + Wi-Fi 7, this board caters to creators, gamers, and overclockers alike. Designed for intuitive performance tuning, the AORUS AI SNATCH software enables real-time AI tuning and one-click DDR5 memory boost. Enhanced with immersive AORUS lighting, this motherboard elevates both form and function for high-end PC builds.
Features
-
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (AM5)
-
DDR5 memory OC up to 8600MT/s with AMD EXPO™ support
-
16+2+2 Twin Digital VRM with 110A Smart Power Stages
-
4 x DIMMs supporting up to 256GB Dual Channel DDR5
-
Enhanced M.2 design: 4 slots (3x PCIe 5.0, 1x PCIe 4.0)
-
EZ-Latch Plus & Click: Quick-release PCIe and screwless M.2 slots
-
DDR Wind Blade: Active cooling solution for memory stability
-
AORUS AI SNATCH: One-click DDR5 boost and real-time tuning
-
Sensor Panel Link: Onboard video port for internal display setup
-
Wi-Fi 7 + 5GbE LAN for next-gen networking speeds
-
Dual USB4 Type-C with DisplayPort Alt Mode
-
Realtek ALC1220 HD audio with WIMA capacitors
-
Full RGB Gen2 header support and AORUS Lighting for customization
-
Ultra-durable PCIe 5.0 x16 UD Slot with 10X retention strength
-
Hardware monitoring with new power phase analytics in HWInfo
-
BIOS features Q-Flash, Q-Flash Plus, and Multi-Theme UI
Specifications
| CPU Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870E |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Memory | 4 x DDR5 DIMM slots, up to 256GB, OC up to 8600MT/s, Dual Channel, AMD EXPO™ & XMP supported |
| Graphics Support | HDMI 2.1, Front HDMI (1.4), 2 x USB4 Type-C with DP output (via ASMedia controller) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x4 |
| Storage Interfaces | 4 x M.2 (3x PCIe 5.0, 1x PCIe 4.0), 4 x SATA 6Gb/s, RAID 0/1/5/10 for NVMe, RAID 0/1/10 for SATA |
| USB Ports | 2 x USB4 Type-C, 4 x USB 3.2 Gen 2, 5 x USB 3.2 Gen 1, 6 x USB 2.0/1.1 |
| Audio | Realtek ALC1220, DTS:X Ultra, S/PDIF Out, WIMA capacitors |
| Networking | Realtek 5GbE LAN, Qualcomm Wi-Fi 7 (2.4/5/6 GHz) + Bluetooth 5.3 |
| Internal Headers | 4 x M.2, 4 x SATA, 4 x ARGB Gen2, USB-C 3.2 Gen 2×2, 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Special Features | AORUS AI SNATCH, EZ-Latch Plus/Click, Sensor Panel Link, DDR Wind Blade Cooling, Q-Flash |
| Monitoring | Voltage, Fan, Flow, Noise Detection, HWInfo power phase tracking |
| Software Bundle | GIGABYTE Control Center, Norton Internet Security (OEM), LAN bandwidth manager |
| Operating System | Windows 11 64-bit |
