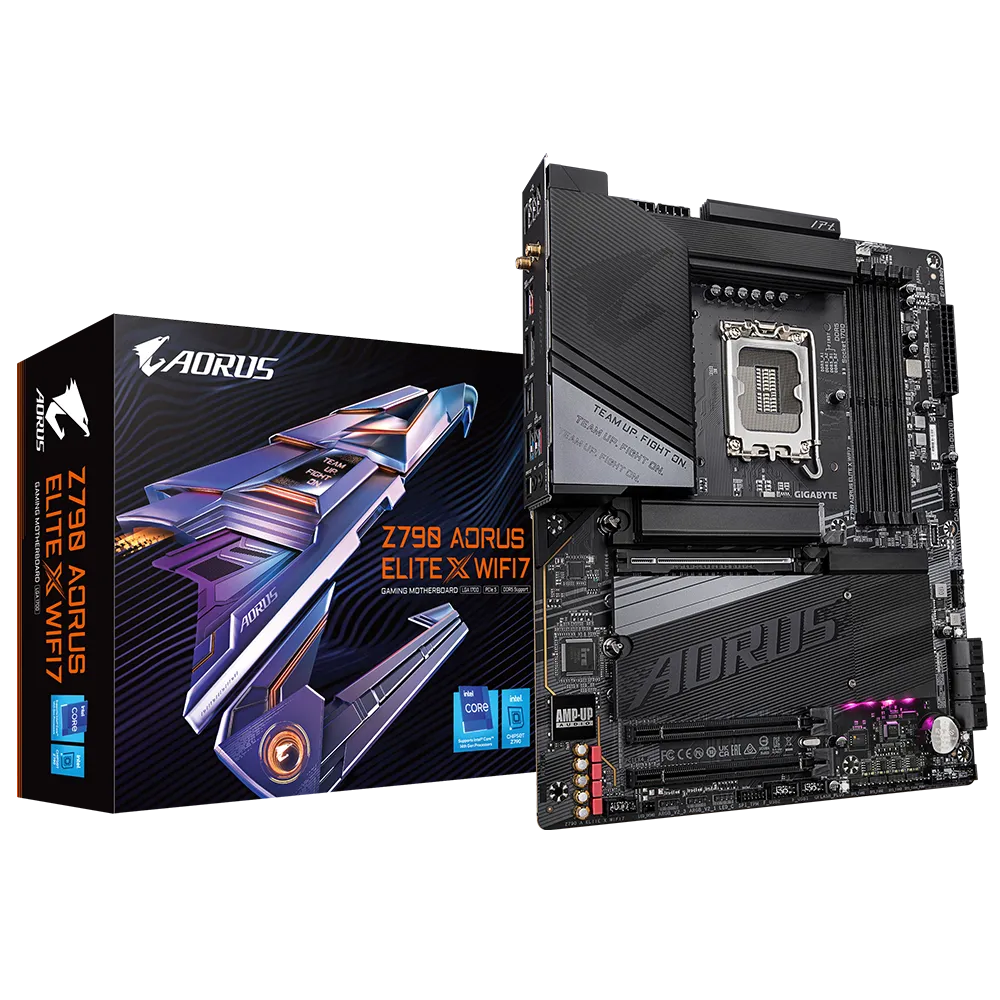

GIGABYTE Z790 AORUS Elite X WIFI7
The AORUS Z790 AORUS ELITE X WIFI7 motherboard is designed for unmatched performance and seamless compatibility with Intel® Core™ 14th and 13th Gen processors. Featuring a powerful 16+1+2 digital twin VRM phase design and support for DDR5 memory up to 8266 MT/s, it ensures both high-speed computing and stable overclocking. Four PCIe 4.0 x4 M.2 slots and a PCIe 5.0 x16 GPU slot offer future-ready expandability, while full-metal heatsinks and advanced cooling keep thermal performance in check. Connectivity is enhanced with 2.5GbE LAN, Wi-Fi 7, USB-C 20Gb/s, HDMI, and DisplayPort. DIY-friendly features like EZ-Latch designs simplify the build process. Combined with UC BIOS for intuitive tuning and durability-focused construction, this motherboard is built for serious performance and long-term reliability.
Features
-
Supports Intel® Core™ 14th and 13th Gen processors
-
Twin 16+1+2 digital phases VRM for stable overclocking
-
DDR5 memory support up to 8266 MT/s with XMP 3.0
-
PCIe UD Slot X with PCIe 5.0 x16 support
-
4x PCIe 4.0 x4 M.2 slots with Thermal Guard
-
M.2 EZ-Latch Click and EZ-Latch Plus for screwless design
-
UC BIOS with DDR5 Auto/XMP Booster and Quick Access
-
Wi-Fi 7 and Intel 2.5GbE LAN for high-speed networking
-
Realtek ALC1220-VB Audio with audiophile-grade capacitors
-
8-layer low-loss PCB with 2X copper and advanced signal routing
-
Ultra Durable design with solid pin connectors and optimized thermal dissipation
-
Integrated HDMI and DisplayPort video outputs
Specifications
| CPU Socket | LGA1700 (Supports 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron®) |
| Chipset | Intel® Z790 Express |
| Memory | 4x DDR5 DIMM, up to 256 GB, supports ECC/non-ECC, up to 8266 MT/s (OC), Dual Channel |
| Graphics | 1x HDMI (4096×2160@60Hz), 1x DisplayPort (4096×2304@60Hz), CPU dependent |
| Audio | Realtek ALC1220-VB, 7.1-channel, DSD, S/PDIF Out supported |
| LAN | Intel® 2.5GbE LAN chip |
| Wireless (varies by rev) | Wi-Fi 7, Bluetooth 5.3 (MediaTek/Intel/Qualcomm chipsets depending on revision) |
| Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x4 |
| M.2 Slots | 4x PCIe 4.0 x4 M.2 (1x CPU, 3x Chipset; supports 22110/2280) |
| SATA | 6x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (NVMe and SATA) |
| USB Ports | Rear: 1x USB-C 20Gb/s, 2x USB 3.2 Gen2, 3x USB 3.2 Gen1, 4x USB 2.0; Front: USB-C 10Gb/s, more |
| Cooling Headers | 1x CPU fan, 1x CPU/water pump, 3x system fans, 1x sys fan/water pump |
| RGB Headers | 3x ARGB Gen2, 1x RGB LED strip |
| Internal I/O | 24-pin ATX, 2x 8-pin CPU, USB headers, Q-Flash, TPM, front panel/audio, Thunderbolt AIC |
| BIOS Features | UC BIOS, DDR5 XMP Booster, Auto Booster, High Bandwidth, Low Latency, User Profile |
| DIY Features | M.2 EZ-Latch Click/Plus, PCIe EZ-Latch, 8-layer PCB, 2X copper |
| Form Factor | ATX |
