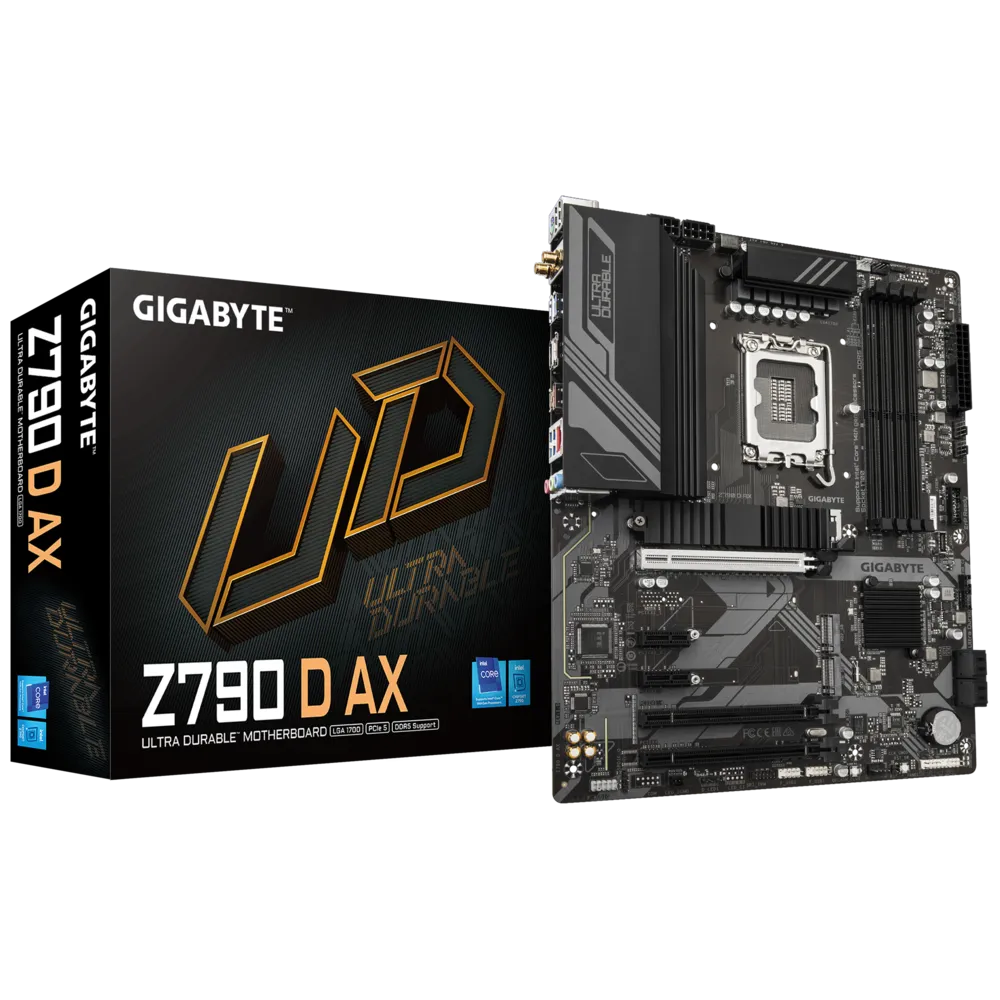

Z790-D-AX

The Z790 D AX is engineered for users seeking exceptional performance and stability for gaming, content creation, and overclocking. Featuring a Twin 12+1+1 Phases Digital VRM and 6-layer PCB with 2X copper, this motherboard ensures stable power delivery to the latest Intel® Core™ processors. It supports high-speed DDR5 memory up to 7600 MHz (OC), optimized through advanced memory routing, impedance tuning, and low-signal-loss PCB materials.

Three PCIe 4.0 x4 M.2 slots, protected by M.2 Thermal Guards, provide blazing-fast storage and thermal throttling prevention. A PCIe 5.0 x16 slot with EZ-Latch and ultra-durable armor ensures strong GPU support. The Smart Fan 6 system and enlarged MOSFET heatsinks efficiently manage thermals under high workloads.

Connectivity is future-proof with Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2 Type-C®, HDMI, DisplayPort, and front USB-C® support. Additional features like Q-Flash Plus, Multi-Key functions (BIOS, Safe Mode, RGB), RGB Fusion headers, and advanced audio components make this board a versatile centerpiece for any build.

Features

• Supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold & Celeron® CPUs

• Twin 12+1+1 Digital VRM design with Low RDS(on) MOSFETs

• DDR5 memory support with XMP 3.0 and up to 7600 MHz (OC)

• Triple PCIe 4.0 x4 M.2 slots with Thermal Guard

• PCIe 5.0 x16 slot with EZ-Latch and Armor

• 2.5GbE LAN & Wi-Fi 6E with Bluetooth 5.3

• DisplayPort, HDMI, USB 3.2 Gen 2 Type-C®, and USB 3.2 Gen 1

• Enlarged MOSFET Heatsinks and Smart Fan 6 for advanced cooling

• Multi-Key (Reset/RGB/Safe Mode/Direct BIOS)

• Q-Flash Plus for BIOS update without CPU, RAM, or GPU
