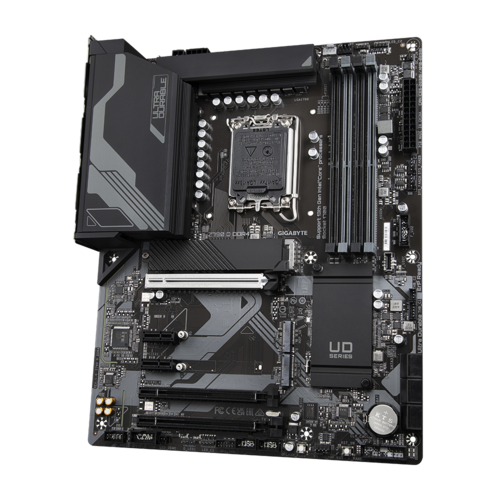

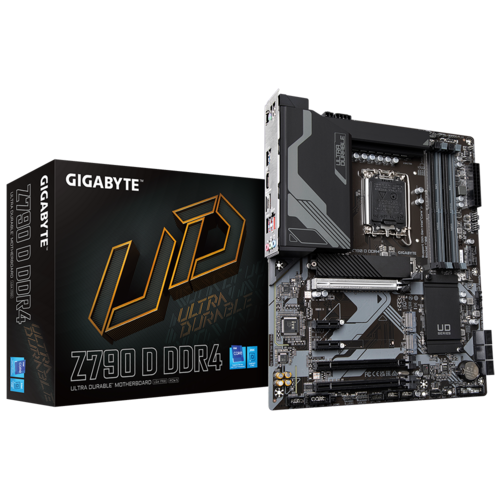

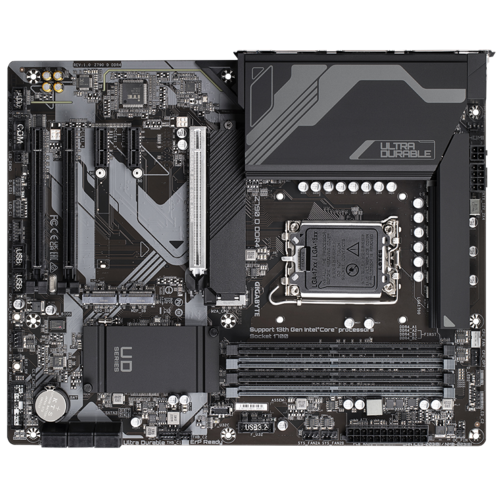

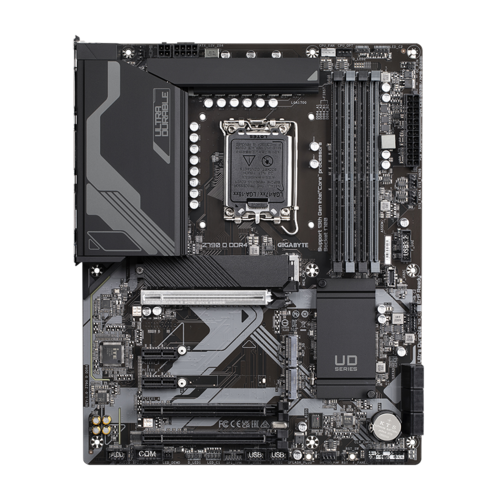

The Gigabyte Z790 D DDR4

Engineered to deliver exceptional performance and durability for modern computing needs. Built to support Intel® 14th, 13th, and 12th Gen Core™ processors, it combines powerful digital VRM with advanced thermal solutions and fast PCIe and M.2 storage options. With a 16+1+1 phase Twin Hybrid VRM, reinforced PCIe 5.0 x16 slot with EZ-Latch, and three PCIe 4.0 M.2 connectors including one with a dedicated thermal guard, this motherboard ensures stability and ultra-fast data throughput. The Smart Fan 6 system features multiple sensors and hybrid headers, allowing precise control and cooling customization. Connectivity is top-tier with 2.5GbE LAN, high-speed USB-C® ports, and onboard HDMI. Personalization is enhanced via GIGABYTE Control Center and RGB headers. Ideal for gamers, creators, and power users looking for robust, feature-rich performance.

Features

• Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® processors

• Twin 16+1+1 Phases Digital VRM with 60A DrMOS

• 4 x DDR4 DIMM slots (up to 128 GB), XMP 3.0 support

• Triple M.2 PCIe 4.0 x4 slots with M.2 Thermal Guard

• Reinforced PCIe 5.0 x16 slot with EZ-Latch quick-release design

• Smart Fan 6: multiple sensors & hybrid fan headers with FAN STOP

• 2.5GbE LAN for high-speed network connectivity

• Rear USB-C® 20Gb/s, front USB-C® 5Gb/s

• Realtek® 8-Channel HD Audio with noise guard

• Q-Flash Plus: BIOS update without CPU, RAM, or GPU

• ATX Form Factor – 30.5cm x 24.4cm
