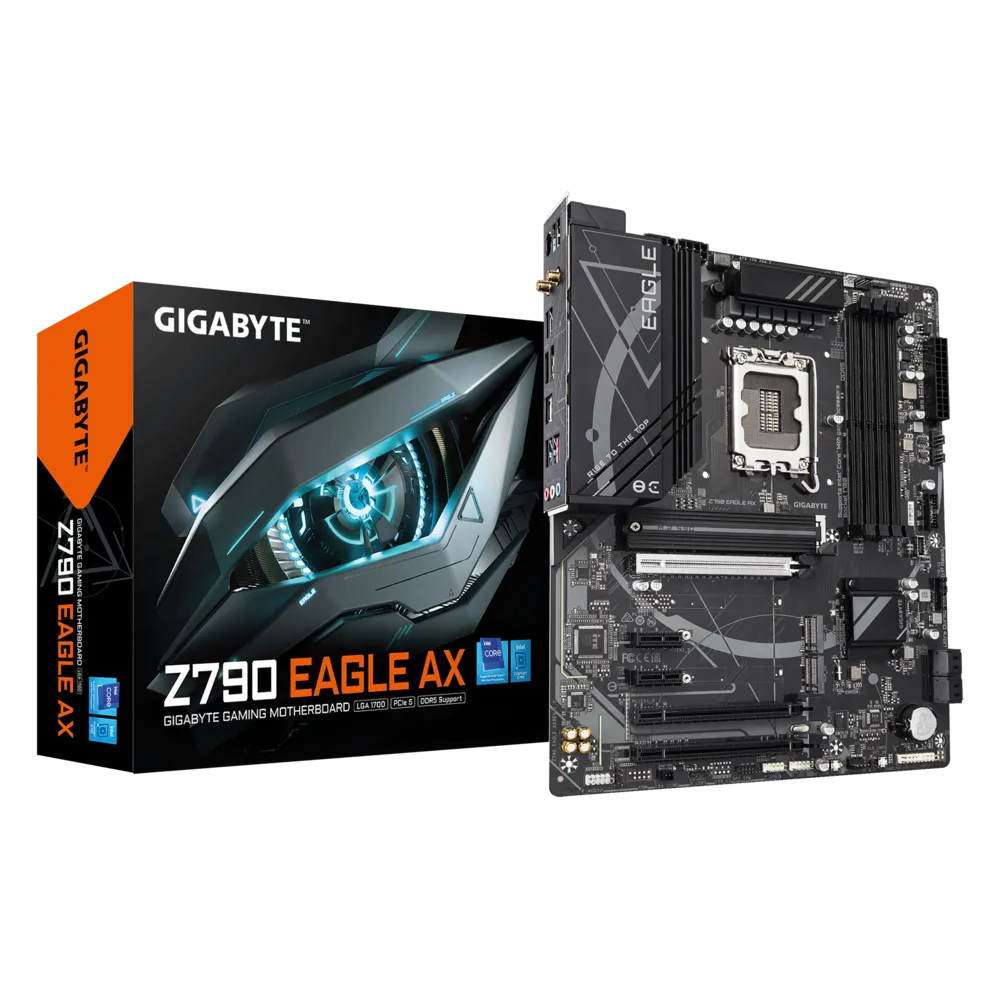

The Gigabyte Z790 EAGLE AX

Motherboard delivers exceptional performance and future-ready connectivity for Intel’s latest Core processors. Built with a Twin 12+1+1 Phases Digital VRM solution and enhanced thermal architecture, it supports overclocking and stable power delivery for high-end CPUs and DDR5 memory. The board comes equipped with 3 PCIe 4.0 M.2 slots featuring M.2 Thermal Guards, ensuring blazing-fast storage performance with optimal cooling. It supports up to 256GB DDR5 memory with XMP 3.0 profiles and optimized memory routing to push performance to the limit.

PCIe 5.0 x16 GPU support via EZ-Latch slot, USB 3.2 Gen2x2 Type-C®, and advanced Wi-Fi 6E/2.5GbE LAN deliver fast connectivity and high bandwidth. Multi-key BIOS functions, Q-Flash Plus, and Smart Fan 6 add convenience and customizability for advanced users. The board also includes Hi-Fi audio capacitors and Realtek 7.1 surround audio support. Designed for power users and system builders seeking uncompromised durability, speed, and thermal performance, the Z790 EAGLE AX is your gateway to next-gen computing.

Features

• Supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors

• Twin 12+1+1 Phases Digital VRM with Low RDS(on) MOSFETs

• Dual Channel DDR5 Memory (up to 7600MHz OC) with XMP 3.0 support

• 3× PCIe 4.0 x4 M.2 slots with Thermal Guards

• 1× PCIe 5.0 x16 Slot with EZ-Latch quick release

• Wi-Fi 6E (802.11ax) + Bluetooth 5.3 + Realtek 2.5GbE LAN

• DisplayPort & HDMI, USB 3.2 Gen 2×2 Type-C®, and rear USB 10Gb/s

• Smart Fan 6 with multiple sensors and hybrid fan headers

• Q-Flash Plus for BIOS update without CPU/GPU/memory

• Enlarged MOSFET Heatsinks & 6-layer PCB with 2x Copper

• RGB Fusion with 2× Addressable LED Headers

• Multi-key BIOS: Reset, RGB Control, Direct to BIOS, Safe Mode
