Z790-UD

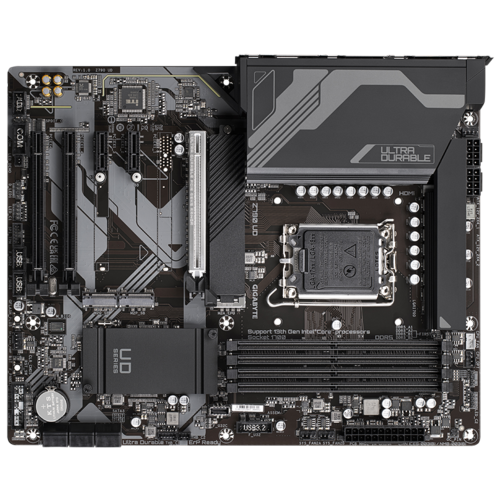

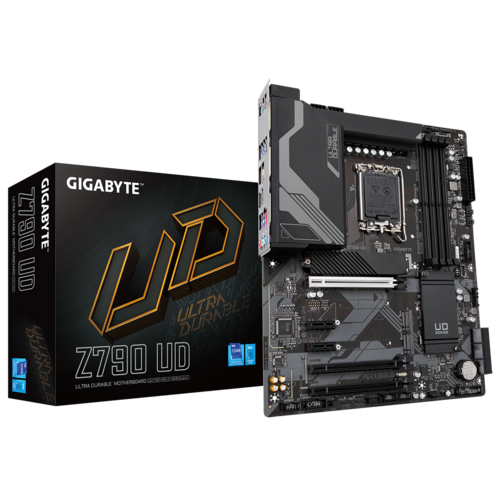

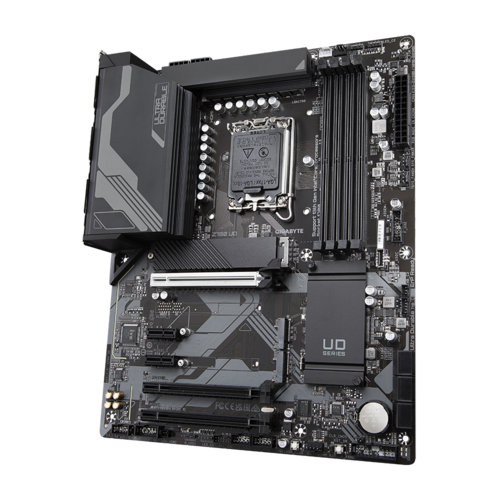

The GIGABYTE Z790 UD ATX motherboard delivers unparalleled performance with its Twin 16+1+1 Digital VRM power phase design and robust thermal architecture. It supports the latest Intel® Core™ processors (14th/13th/12th Gen) on the LGA1700 socket, ensuring seamless compatibility with next-gen technologies. With four DDR5 DIMM slots supporting up to 256GB RAM and XMP 3.0 profiles, users can unleash high memory speeds up to DDR5-7600(O.C.).
It features triple PCIe 4.0 x4 M.2 slots for high-speed storage and a PCIe 5.0 x16 slot reinforced with Ultra Durable Armor and PCIe EZ-Latch for easy GPU installation. The 2.5GbE LAN ensures fast network performance, while comprehensive USB connectivity includes rear USB-C® 20Gb/s and front USB-C® 5Gb/s.
Thermal performance is enhanced with full MOSFET heatsinks, a 6mm heatpipe, and M.2 Thermal Guard. With Smart Fan 6, hybrid headers, and Q-Flash Plus BIOS update support, this board ensures future-proof reliability, ease of maintenance, and high system stability.

Features

• Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

• LGA1700 socket and Intel® Z790 Express Chipset

• Twin 16+1+1 Phase Digital VRM power design

• Dual Channel DDR5, 4 x DIMM slots up to 256GB

• Supports DDR5 up to 7600MHz (O.C.) with XMP 3.0

• 1 x PCIe 5.0 x16 slot with EZ-Latch, 1 x PCIe 4.0 x4, and additional PCIe 3.0 slots

• 3 x M.2 PCIe 4.0 x4 slots (1 with Thermal Guard), 6 x SATA 6Gb/s

• Realtek® 2.5GbE LAN

• Realtek® 8-Channel HD Audio with high-end audio capacitors

• HDMI 2.1 and DisplayPort 1.2 support for integrated graphics

• Rear USB-C® 20Gb/s, front USB-C® 5Gb/s, 8 x USB 2.0, multiple USB 3.2 ports

• Smart Fan 6 with hybrid headers and multiple temperature sensors

• Q-Flash Plus: BIOS update without CPU, RAM, or GPU

• Ultra Durable™ design with 6-layer PCB and 2X Copper

• Integrated I/O shield, RGB/ARGB headers, Multi-Key (Reset/RGB/Safe Mode)
