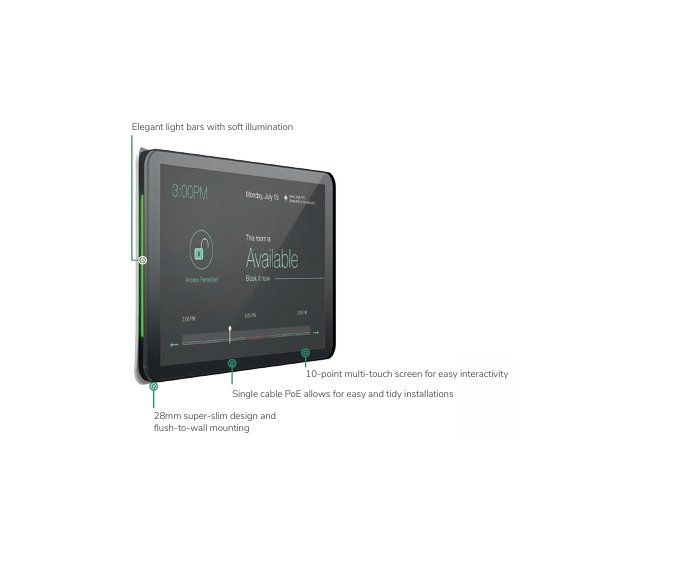

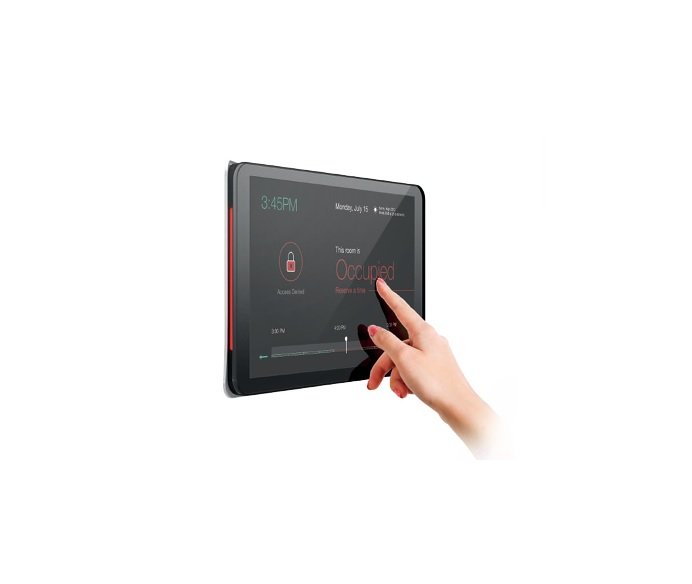

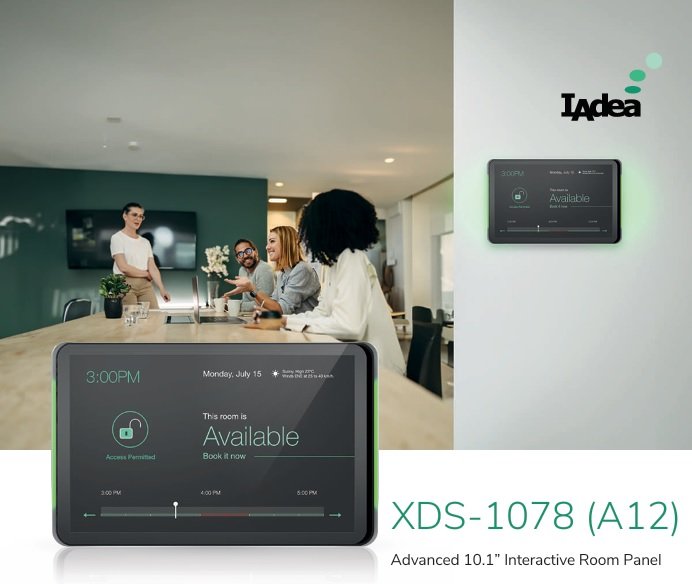

This all-in-one 10″ smart room panel is elegantly designed for the professional workplace. The built-in programmable LED side lights are perfect for immediate visible communication of room status, displaying green when the room is available and red when not, allowing viewers to view room availability from a distance.
FEATURES
- Interactive Touchscreen: 10.1″ capacitive multi-touch display for intuitive interaction.
- Room Management: Real-time status display for room booking, availability, and scheduling.
- Dual LED Indicators: Programmable 6-color LED bars for visual status indication.
- Connectivity: Wi-Fi, Ethernet, and optional 3G/4G connectivity for seamless integration.
- PoE Support: Power-over-Ethernet for a single cable setup (data + power).
- Expandable Storage: MicroSD card slot (up to 64 GB) for extra storage capacity.
- Built-in Audio: Stereo speakers for audio alerts or notifications.
- Android OS: Android 12 for flexible app integration and smooth operation.
SPECIFICATIONS
| Display | • 10.1″ LCD panel • 10 points capacitive multi-touch • 350 nits maximum brightness • 1280 x 800 panel resolution • Viewing angle (H / V): 160 / 160 • 6 primary colors LED bars x 2 |
| Video Format Supported | • H.264 / AVC up to 1080p (1920 x 1080) • H.265 / HEVC up to 1080p (1920 x 1080) • MPEG-4 up to 1080p (1920 x 1080) • MPEG-2 up to 1080p (1920 x 1080) • MPEG-1 up to 1080p (1920 x 1080) • VC-1 up to 1080p (1920 x 1080) |
| Image Format Supported | • JPEG up to 1920 x 1080 • PNG up to 1920 x 1080 |
| Audio Format Supported | • MP3 up to 320 kbps |
| Content Management | • SignApps Express • 3rd party solution (optional license) |
| Open Standards Supported | • HTML5, Javascript and CSS • Android 12.0 API • W3C SMIL for cross-platform management • W3C HTML5 widgets • Support multimedia content playback such as video and image |
| HTML Supported | • Widgets for calendar, clock, news, and web page integration • HTML5 technology including CSS and Javascript • Chromium-based browser engine, same as Google Chrome™ |
| Advanced Signage Features | • Remote commissioning • AlwaysOn, AppLock to prevent unauthorized access • StrongCache for continuous playback even when network is not available • Multi-zone screen layout, transparent PNG overlay, and graphical scrolling ticker • Auto-play starts playing scheduled content automatically when power is not re-established • Automatic error recovery with built-in WDT • Real-time clock with backup clock battery |

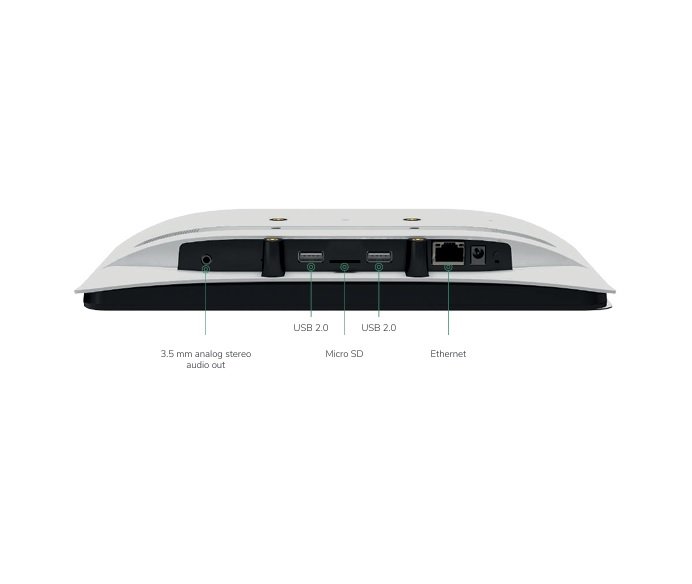

| Connectivity | • W-Fi: 802.11 b/g/n • Micro USB for ADB • Ethernet RJ45: 10/100 BASE-T • USB 2.0 x 2 • Built-in 1 W stereo speakers x 2 • 3.5 mm analog stereo audio out • Optional 3G / 4G mobile module via USB • Mirco SD card slot, memory expendable to 16 GB / 32 GB / 64 GB (card replaces internal storage) |

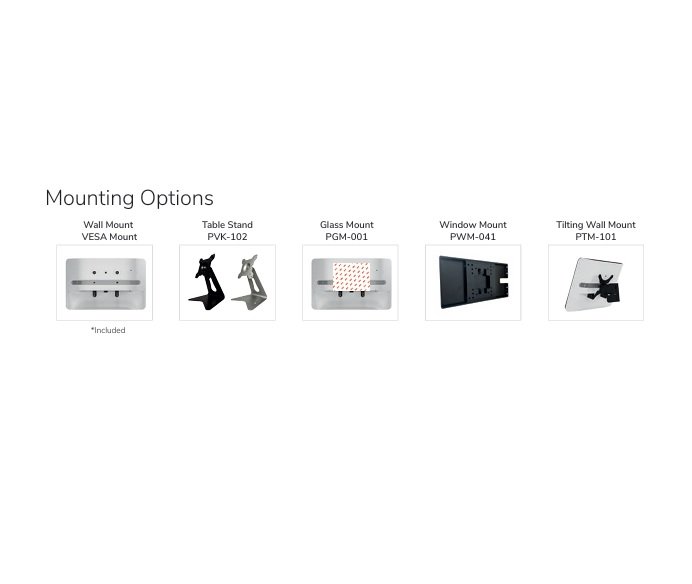

| Mounting Options | • Built-in VESA compatible 75 mm x 75 mm posts • Flush mount back cover |
| Supplied Accessories | • Zero-gap flush VESA mount • DC in & micro SD stopper • Hardware & software quick start guide |
| Optional Accessories | • PGM-001 Glass Mount Solution • PTM-101 Tilt Wall Mount • PVK-102 Pivot Table Stand • PWM-011 & PWM-041 Premium Window Mount • Table stand • Adapter • Power plug |
| Power Requirement | • Input: 100 – 240 V, 50 – 60 Hz • Output: 12 V, 1.5 A • UL / CB certified power supplies • Interchangeable connector system includes US plugs (optional for EU, UK, and AUS plugs) • IEEE 802.3at Power-Over-Ethernet (PoE+) / Eco Mode on IEEE 802.3af power-over-Ethernet |
| Environmental | • Operating temperature: 0 °C to 40 °C • Humidity: 10 % to 85 % @ 40 °C non-condensing |
| Dimensions for Product & Package | • Display size (mm): 269.88 x 170.77 x 28.5 (10.62″ x 6.72″ x 1.12″) • Display weight (g): 727 (1.6 lbs) • Individual package size (mm): 336 x 100 x 227 (27.36″ x 10.23″ x 20.86″) • Outer carton size (W x D x H; mm): 522 x 356 x 259 • Units per outer carton: 5 |
| Certifications | • CE / FCC / RoHS |
