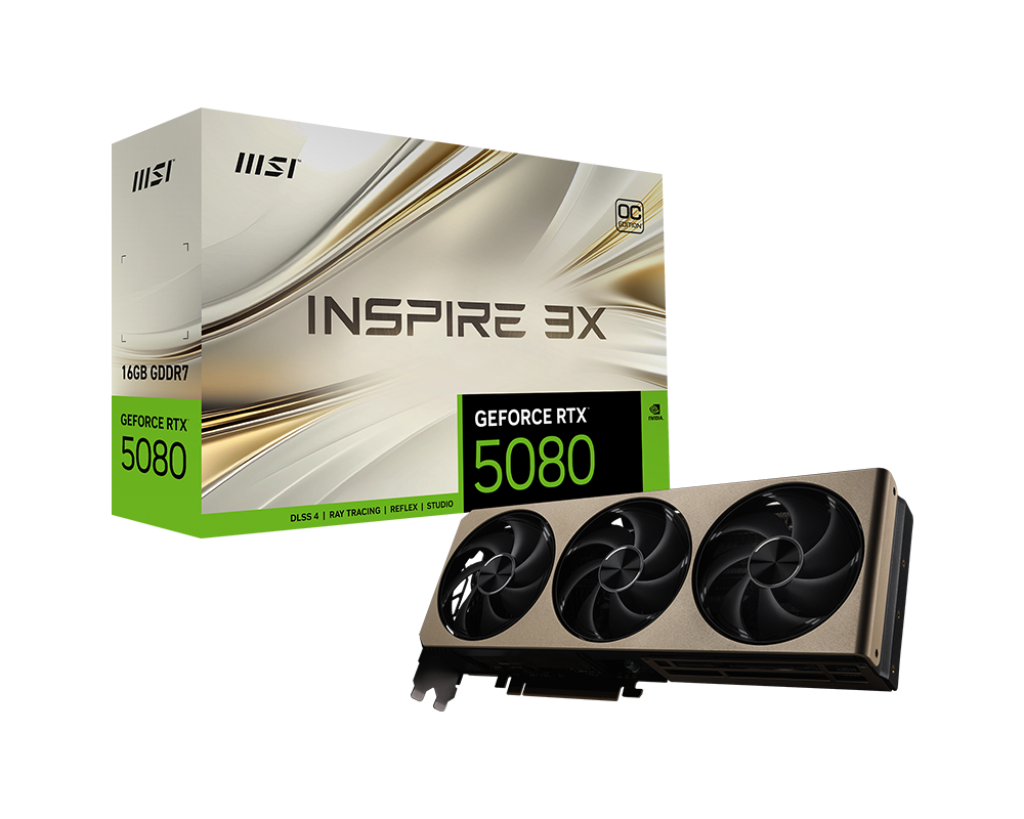

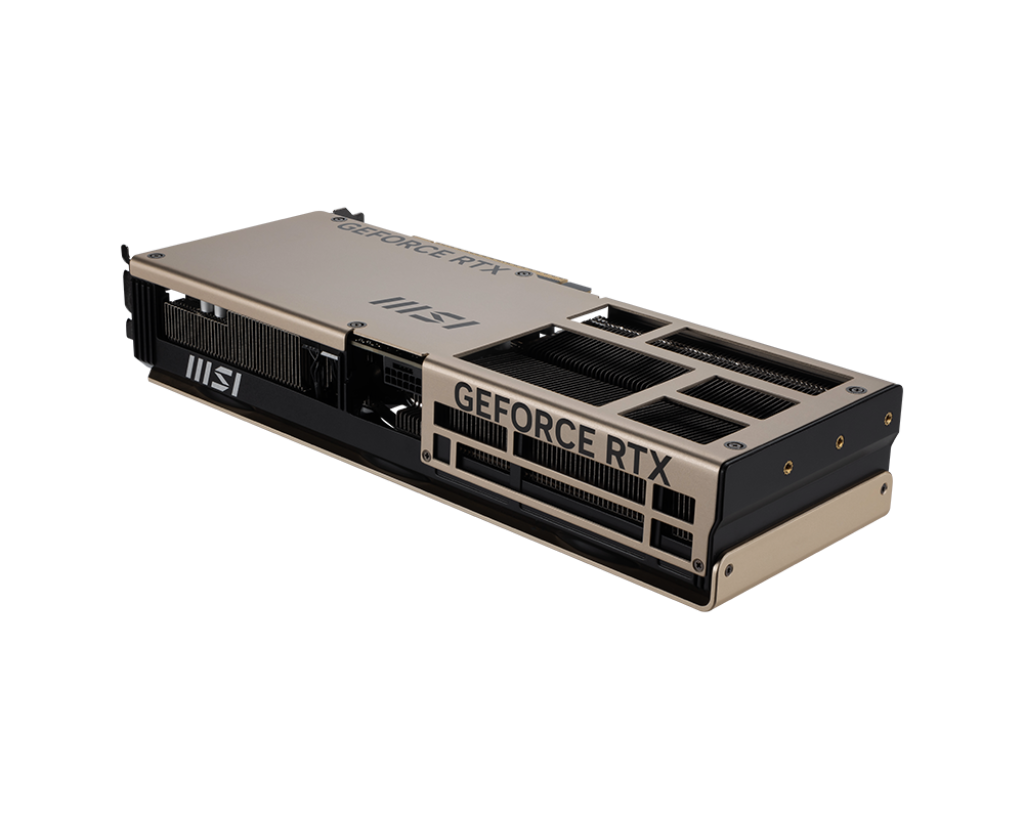

Msi GeForce RTX 5080 16G INSPIRE 3X OC Graphics Card
The MSI GeForce RTX 5080 INSPIRE 3X OC 16GB is a high-performance GPU tailored for gamers, creators, and professionals seeking top-tier graphics capabilities. It’s based on NVIDIA’s latest Blackwell architecture and offers over 10,000 CUDA cores for powerful parallel computing. With 16GB of ultra-fast GDDR7 memory and a wide memory bus, it handles high-res textures and demanding applications with ease.
Features
-
Built using NVIDIA’s next-gen Blackwell GPU design, allowing for cutting-edge graphics and AI-driven performance.
-
Comes factory overclocked, delivering higher speeds and smoother gameplay without manual tuning.
-
Offers 16GB of ultra-fast GDDR7 memory and a wide 256-bit interface for excellent data handling and throughput.
-

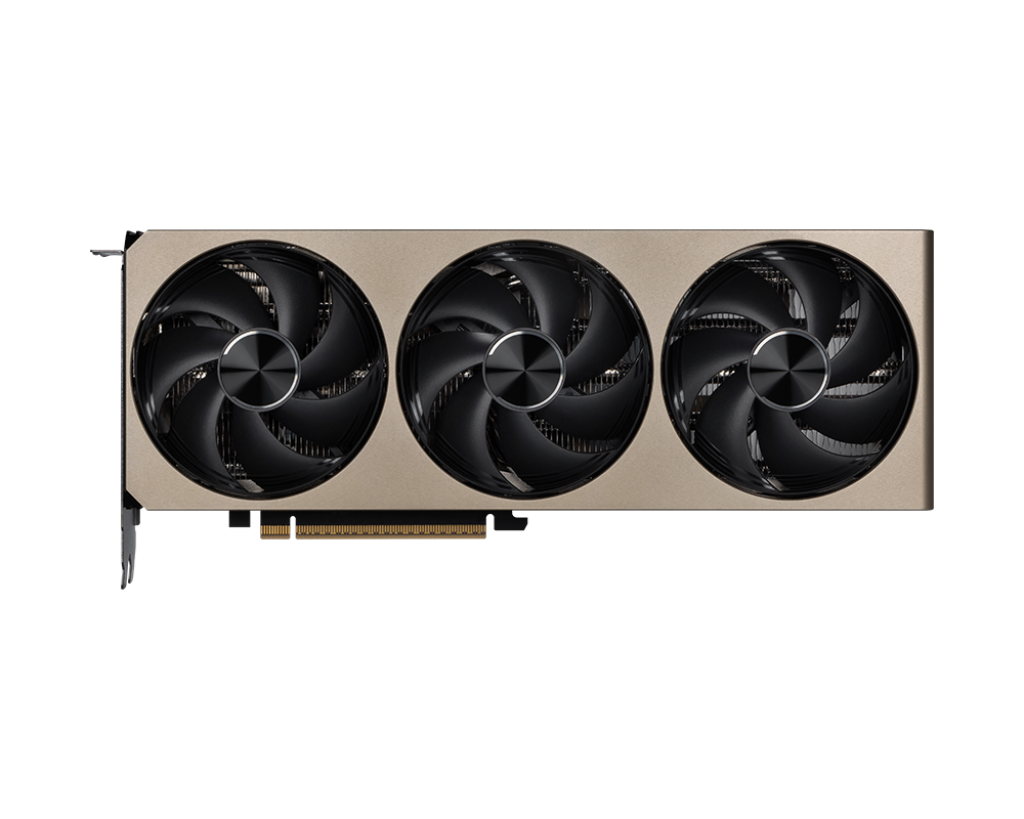

Utilizes a triple-fan cooling system (INSPIRE 3X) that includes smart fan stop technology for silent operation during light workloads.
-
Features advanced cooling elements like wave-shaped fins, copper baseplate, and optimized heat pipes to manage thermals effectively.
-

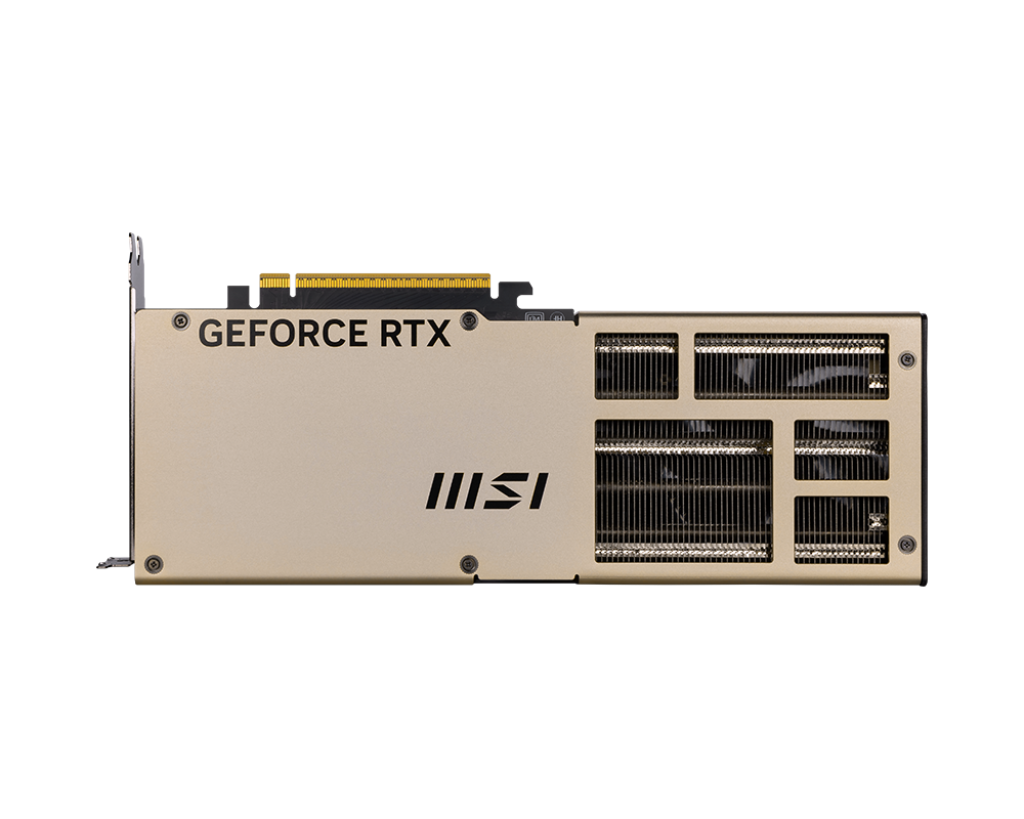

A solid metal backplate adds durability and helps with passive cooling by dispersing heat.
-
Supports up to 8K resolution with DisplayPort 2.1 and HDMI 2.1 for modern displays.
-
Requires only one 16-pin power connector, but draws around 360W, so it’s best paired with at least an 850W PSU.
Specifications
| Category | Details |
|---|---|
| GPU Model | NVIDIA RTX 5080 (GB203 chip) |
| Graphics Architecture | Blackwell – 5nm (TSMC 4N process) |
| CUDA Cores | 10,752 shaders / parallel processors |
| Texture Units / ROPs | 336 TMUs / 112 ROPs |
| Base GPU Clock | ~2,295 MHz |
| Boosted Clock Speed | Up to ~2,655 MHz (OC mode) |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 30 Gbps effective, ~960 GB/s bandwidth |
| Bus Interface | PCI Express 5.0 x16 |

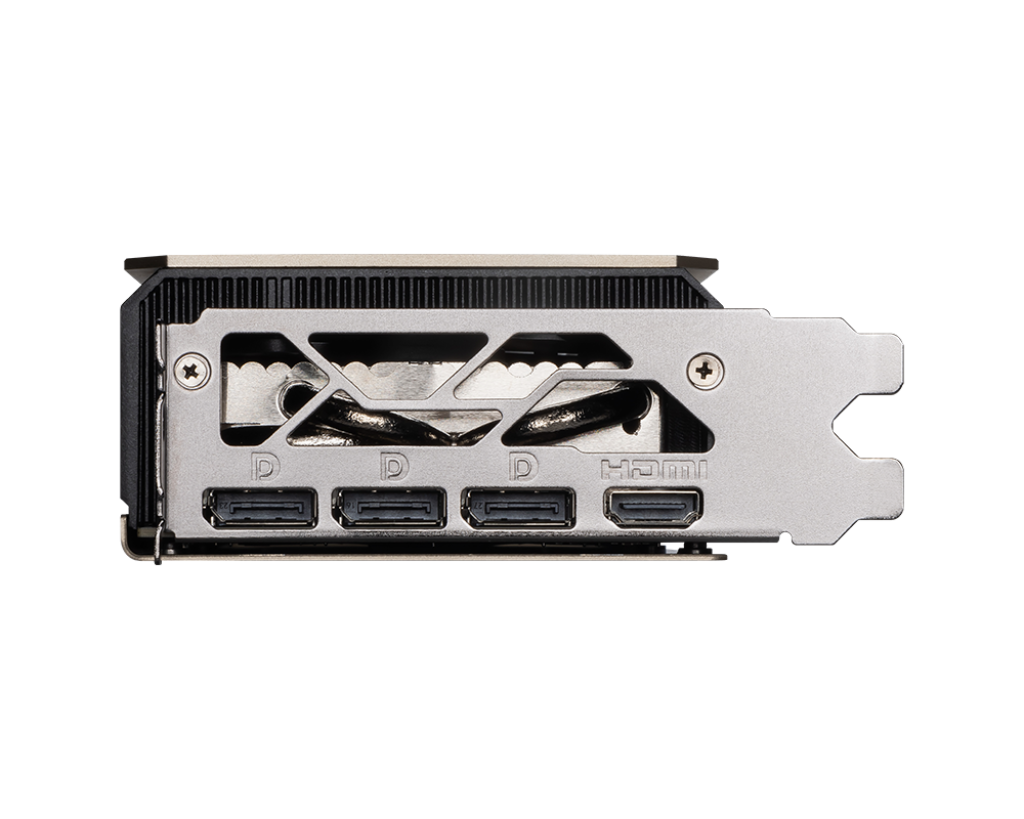

| Display Outputs | 3x DisplayPort 2.1, 1x HDMI 2.1 |
| Power Input | 1x 16-pin connector |
| Power Usage (TDP) | Around 360W |
| Recommended PSU | 850W or higher |
| Dimensions | 288 × 112 × 50 mm |
| Weight | ~950 g (card only), ~1.4 kg (with packaging) |
| APIs Supported | DirectX 12 Ultimate, Vulkan, OpenGL 4.6 |
| Max Display Support | 4 monitors, up to 7680×4320 resolution (8K) |
