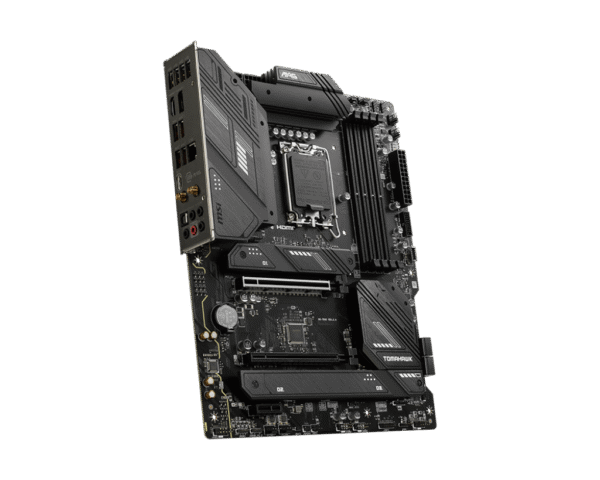

MAG B760 TOMAHAWK WIFI
The MSI MAG B760 TOMAHAWK WIFI is designed for gamers and creators who require high-performance hardware and next-gen connectivity. Supporting Intel Core 14th, 13th, and 12th Gen processors along with Pentium Gold and Celeron processors on the LGA 1700 socket, it brings robust computing power with advanced DDR5 support up to 7000+ MHz.
Built with a 12+1+1 Duet Rail Power System, dual 8-pin CPU connectors, and a 6-layer PCB with 2oz thickened copper, the motherboard delivers stable power and enhanced reliability. The extended heatsink design, MOSFET thermal pads, and M.2 Shield Frozr ensure effective cooling during demanding workloads and gaming sessions.
For graphics and expansion, the MAG B760 TOMAHAWK WIFI includes a reinforced PCIe 5.0 x16 slot and multiple PCIe 4.0/3.0 slots, enabling high-speed GPU performance. Storage is covered with triple M.2 connectors (PCIe 4.0 x4 and SATA modes) plus 4x SATA 6Gbps ports, supporting RAID for both SATA and NVMe drives.
Networking and connectivity are powered by Intel Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb LAN, ensuring seamless online experiences. USB 20Gbps Type-C, multiple USB 10Gbps ports, DisplayPort 1.4, HDMI 2.1 with 8K/4K support, and Audio Boost with 7.1-channel HD sound provide premium connectivity and multimedia options.
Features
Supports Intel Core 14th, 13th, and 12th Gen processors, Pentium Gold, and Celeron (LGA 1700)
4x DDR5 slots, up to 256GB, overclocking up to 7000+ MHz with Intel XMP profiles
12+1+1 Duet Rail Power System with dual 8-pin CPU connectors and 6-layer PCB
Extended Heatsink design with M.2 Shield Frozr for advanced thermal management
1x PCIe 5.0 x16 slot reinforced for GPUs, plus PCIe 4.0 and 3.0 slots
Triple M.2 connectors supporting PCIe 4.0 and SATA storage, plus 4x SATA 6Gbps ports
RAID 0/1/5/10 support for both SATA and NVMe storage
Realtek ALC897 Codec with 7.1-channel HD Audio and S/PDIF output
High-speed networking with Intel Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb LAN
USB 20Gbps Type-C, multiple USB 10Gbps Type-A/C ports, and USB 5Gbps/2.0 options
HDMI 2.1 and DisplayPort 1.4 supporting up to 8K/60Hz and 4K/60Hz displays
EZ Debug LED for troubleshooting and enhanced build convenience
ATX form factor with durable design for gaming and productivity builds
Specifications
| Categories | Details |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron (LGA 1700) |
| Memory | 4x DDR5 DIMM, up to 256GB, speeds up to 7000+ MHz (OC), Dual Channel, Intel XMP support |
| Power Design | 12+1+1 Duet Rail Power System, dual 8-pin CPU connectors, 6-layer PCB with 2oz copper |
| Cooling | Extended Heatsinks, MOSFET pads, M.2 Shield Frozr, pump fan and system fan headers |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 3.0 x4, 1x PCIe 4.0 x1 |
| Storage | 3x M.2 (PCIe 4.0 x4, PCIe 4.0 x4, PCIe 4.0 x4/SATA), 4x SATA 6Gbps |
| RAID Support | RAID 0/1/5/10 for SATA, RAID for NVMe |
| Audio | Realtek ALC897 Codec, 7.1-Channel HD Audio, S/PDIF output |
| LAN | Realtek 2.5Gb LAN |
| Wireless | Intel Wi-Fi 6E, Bluetooth 5.3 |
| USB Ports | Rear: USB 20Gbps Type-C, multiple USB 10Gbps Type-A, USB 2.0 / Front: USB 10Gbps Type-C, USB 5Gbps, USB 2.0 |
| Display Outputs | HDMI 2.1 (4K/60Hz), DisplayPort 1.4 (8K/60Hz) – CPU dependent |
| LED Features | 4x EZ Debug LED, RGB/ARGB headers |
| Form Factor | ATX, 243.84mm x 304.8mm |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
