Description

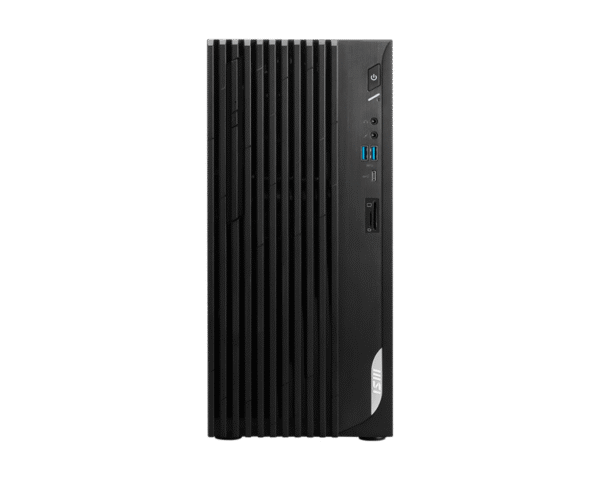

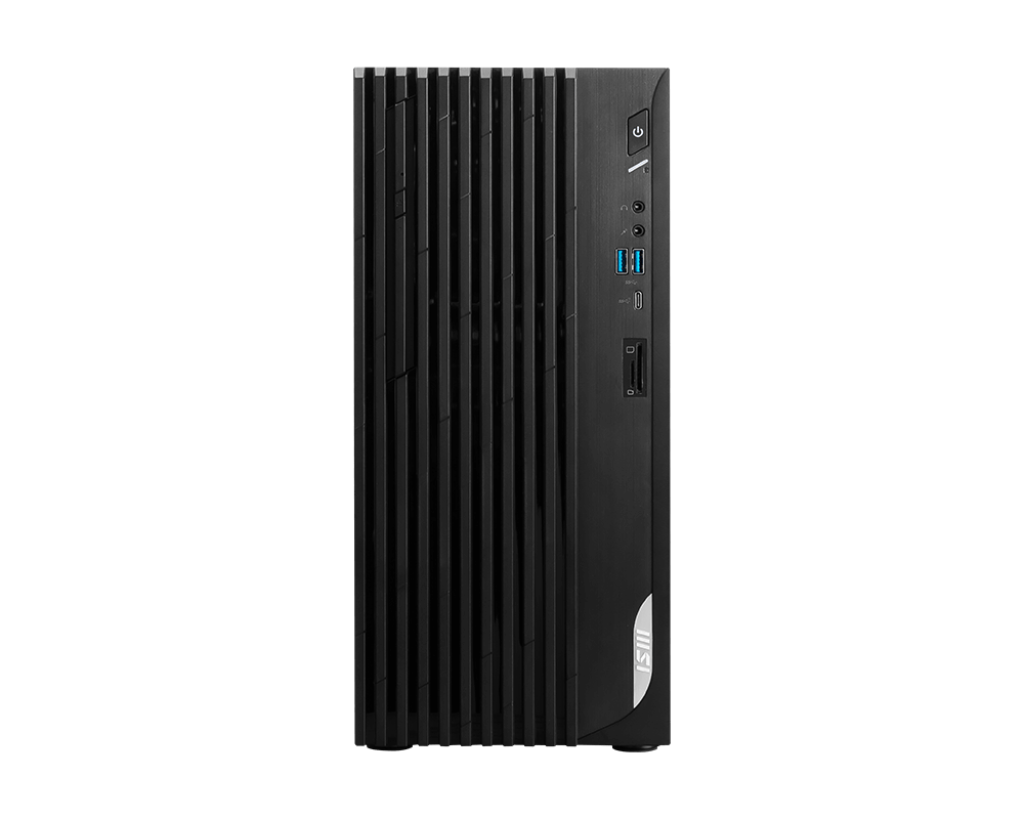

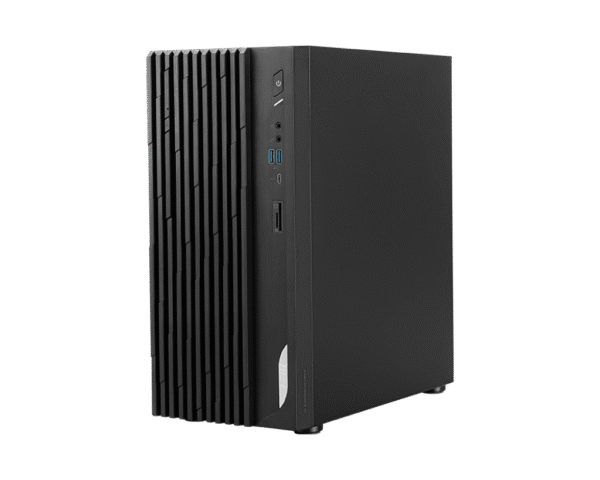

The MSI Pro DP180 Barebone Desktop PC is designed for professionals who demand power, flexibility, and reliability in a compact form factor. Featuring the Intel Core i5-14400F processor with up to 4.70 GHz boost and 20MB cache, this system is ideal for multitasking, business workloads, and media editing. Built on the Intel H610 chipset, it offers stable performance and future-ready expandability for professional environments.

With support for DDR5 memory up to 64GB and compatibility with high-end NVIDIA GeForce RTX graphics cards (GPU not included), this desktop delivers smooth visuals and high-performance computing. Its robust I/O design allows connection to up to four monitors, making it perfect for multitasking-intensive setups, while 8K display support ensures stunning visual clarity.

This desktop also includes dual LAN ports — one 2.5G and one 1G — ensuring fast, low-latency, and reliable wired networking. The built-in USB 3.2 Gen 2 Type-C port allows high-speed data transfers, and the integrated card reader supports both SD and MicroSD cards for professional media workflows. It’s equipped with multiple M.2 and SATA slots for flexible storage upgrades.

With a 500W 80 Plus Bronze PSU and whisper-quiet operation, the MSI Pro DP180 is designed for long-term use with optimal efficiency. Its 18-liter chassis is easy to access for upgrades, making it a future-proof choice for growing businesses and evolving professional needs.



Features



  • Intel Core i5-14400F with 20MB cache and up to 4.70GHz boost

  • Compatible with NVIDIA GeForce GTX/RTX Graphics (GPU not included)

  • Supports up to 64GB DDR5 5600MHz RAM (RAM not included)

  • Up to 8K display resolution with support for 4 monitors

  • Dual LAN (2.5G + 1G) for ultra-fast, low-latency networking

  • USB 3.2 Gen 2 Type-C for high-speed data transfers

  • Built-in SD & MicroSD card reader for media compatibility

  • Easy access chassis for component upgrades

  • 500W 80 Plus Bronze certified PSU



Specifications



CPUIntel Core i5-14400F (20M Cache, 2.50 GHz up to 4.70 GHz)
ChipsetIntel H610
Memory2x DDR5 U-DIMM slots, up to 64GB at 5600MHz
Storage1x M.2 slot, 3x SATA connectors, 2.5″/3.5″ drive bays
Graphics CompatibilityMSI GTX 1650, RTX 4060, RTX 4060 Ti (GPU not included)
AudioRealtek ALC897, 7.1 Channel
LAN1x Intel I226-V (2.5G) + 1x Intel I219-V (1G)
WirelessIntel Wireless AC 3168/9462/AX211 (optional, not included)
Front I/OMic-in, Headphone-out
Rear I/O4x USB 2.0, HDMI, DP, VGA, COM, PS/2 ports
Expansion Slots1x PCIe 4.0 x16, 1x PCIe 3.0 x1
PSU500W 80 Plus Bronze Certified
CoolingAir Cooler (65W), Size: 110.24 x 110.24 x 45.4 mm
Dimensions (WxDxH)168 x 323 x 369 mm
Volume18 Liters
WeightNet: 7.59 kg / Gross: 9.03 kg
Operating Temp.0°C ~ 35°C / Storage: -20°C ~ 60°C
Noise Level28 dB (Idle), 38 dB (Full load)
