Description

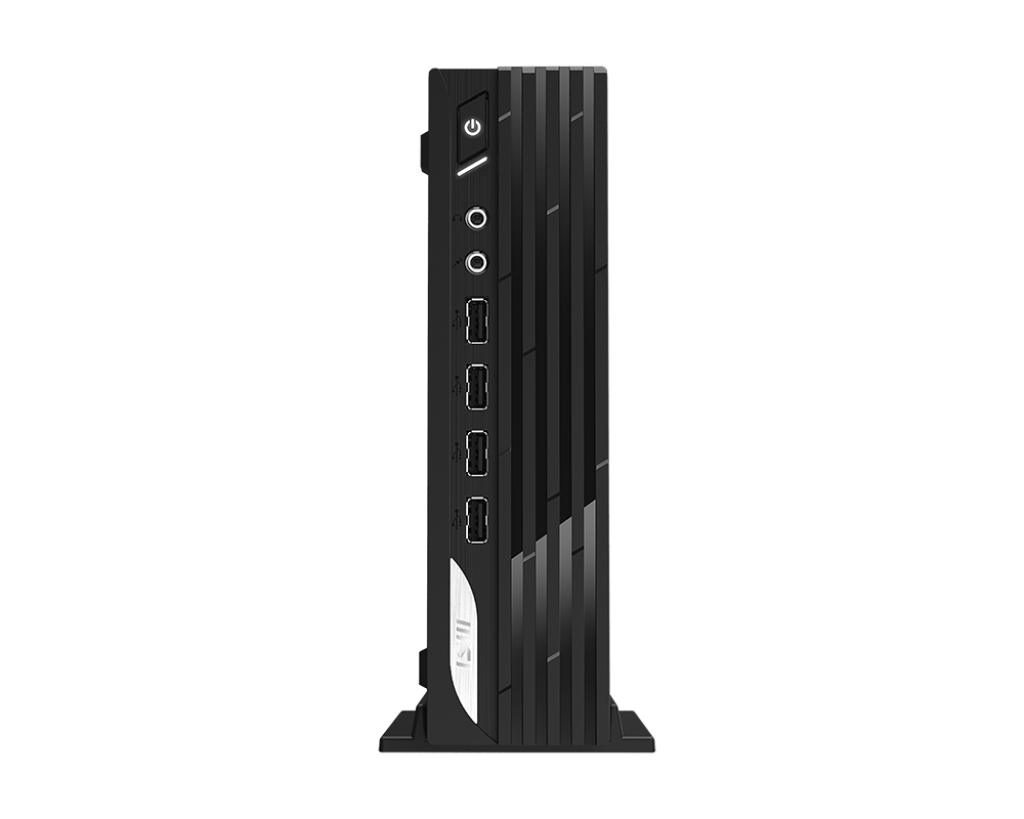

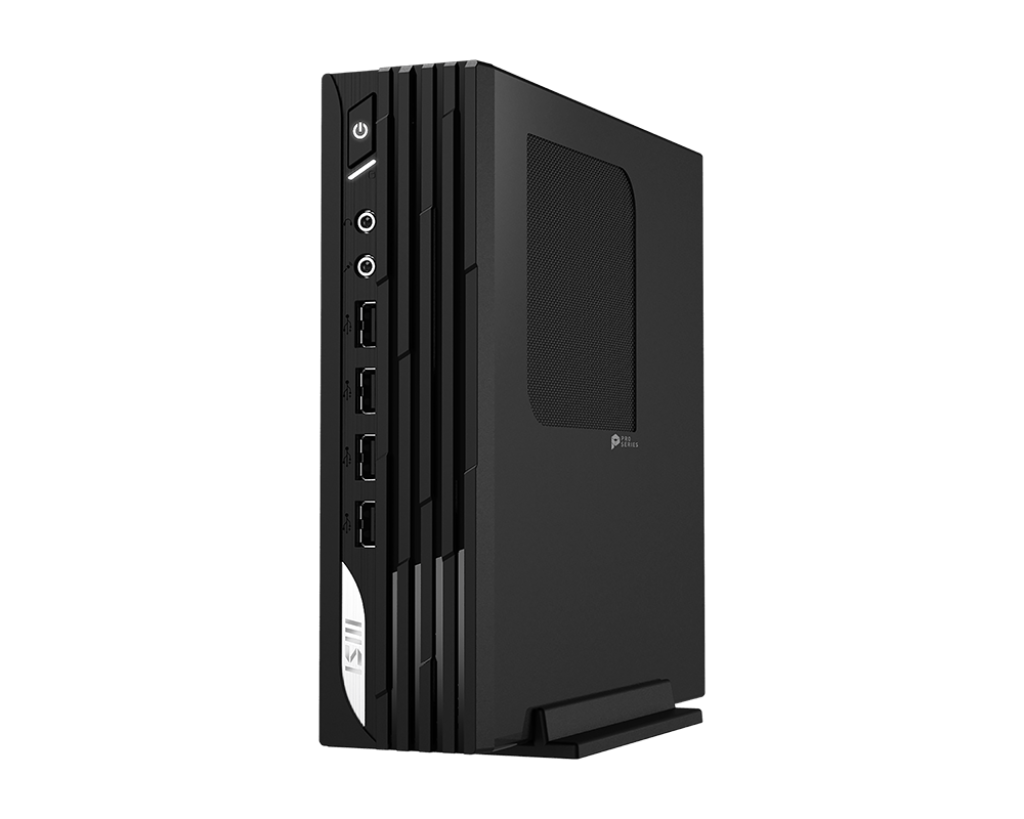

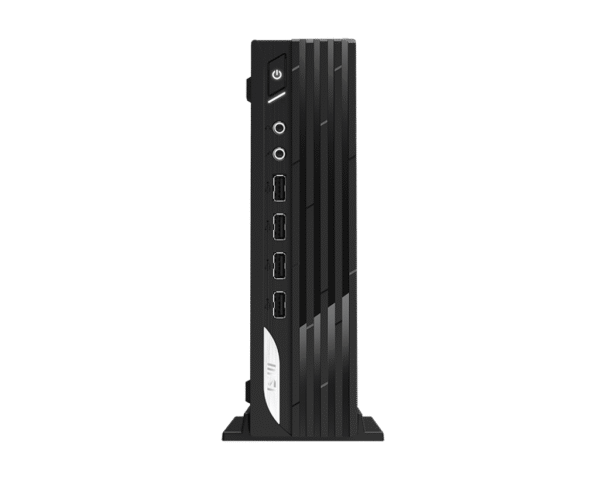

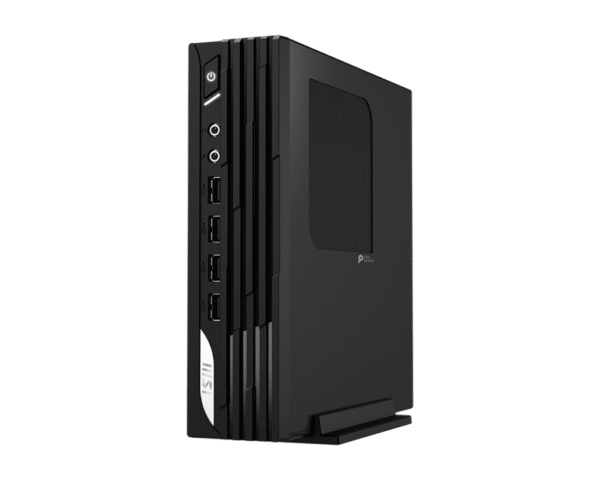

The MSI PRO DP21 Barebone Desktop PC is designed for small businesses, professionals, and anyone seeking compact computing power without compromising performance. Powered by the Intel Core i3-13100 processor with 4 Performance Cores and 8 threads, running at up to 4.5GHz, it delivers responsive multitasking and everyday computing capabilities.

Equipped with Intel UHD Graphics 730 and support for 4K UHD resolution, this mini PC enables crisp visuals and multitasking across dual displays via HDMI and DisplayPort. The system supports up to 64GB of DDR4 SO-DIMM RAM and features one M.2 slot and two 2.5” bays, allowing for flexible storage configurations that meet a range of needs.

With a rich set of I/O ports including USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, and multiple USB 2.0 ports, you get fast data access and universal connectivity. The design supports TPM (Trusted Platform Module) technology for data encryption and protection, making it a great choice for secure environments.

The MSI Cloud Center app lets users create a private cloud and wirelessly back up data from Android and iOS devices, while optional Wi-Fi 6 capability ensures fast, secure wireless connectivity. The compact 2.3-liter chassis includes VESA-mount support, making it ideal for space-saving installations in offices, retail spaces, and digital signage applications.



Features



  • Intel Core i3-13100, 4 Cores / 8 Threads, up to 4.5GHz with 12MB Cache

  • Supports stunning 4K UHD output and dual display functionality

  • USB 3.2 Gen 2 Type-C and Type-A for fast, modern connectivity

  • TPM security for protecting sensitive data

  • MSI Cloud Center for mobile device backup (Android/iOS)

  • Optional Wi-Fi 6 with transmission speeds up to 2.4Gbps

  • Easy access for RAM and storage upgrades

  • Compact 2.3L design with standard VESA-mount support



Specifications



CPUIntel Core i3-13100 (4P/0E Cores, 8 Threads, up to 4.5GHz, 12MB Cache)
ChipsetIntel H610
GraphicsIntegrated Intel UHD Graphics 730
Memory2x DDR4 SO-DIMM 2666/3200MHz, up to 64GB
Storage1x M.2 SSD (PCIe/SATA), 2x 2.5″ HDD/SSD
Front I/O Ports4x USB 2.0, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A, Audio Jacks
Rear I/O Ports2x USB 3.2 Gen 1, 1x RJ45, 1x HDMI (4K@60Hz), 1x DisplayPort 1.4, COM Port, Audio
Bluetooth4.2 (AC 3168), 5.2 (AX201), 5.3 (AX211)
LANRealtek RTL8111H
Cooling SystemFan Cooler
Power Supply120W Adapter
Dimensions204 x 208 x 54.8 mm (8.03 x 8.19 x 2.16 in)
WeightNet: 1.27 kg / Gross: 2.75 kg
VESA MountSupports 100 x 100 mm
Volume2.3 Liters
CertificationsFCC, CB/CE, UL & CUL, VCCI, RCM, ENERGY STAR
