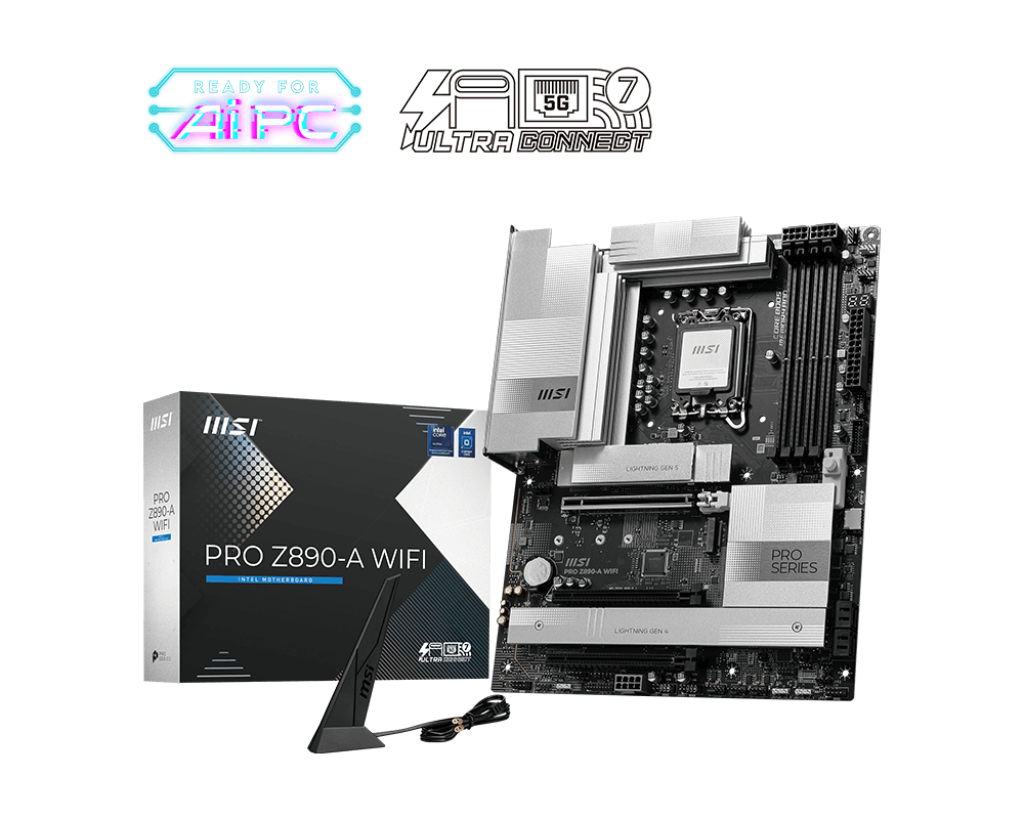

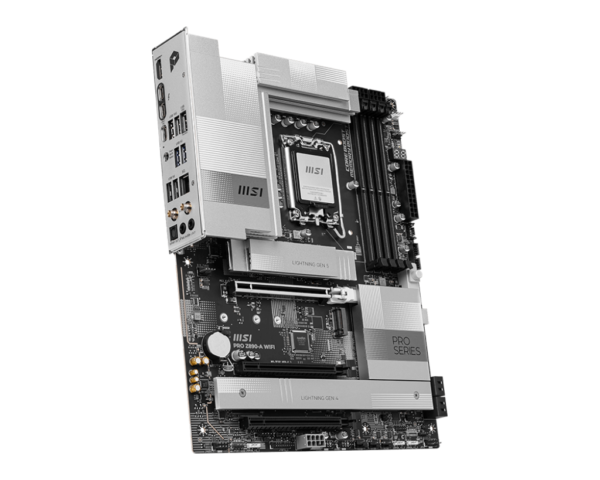

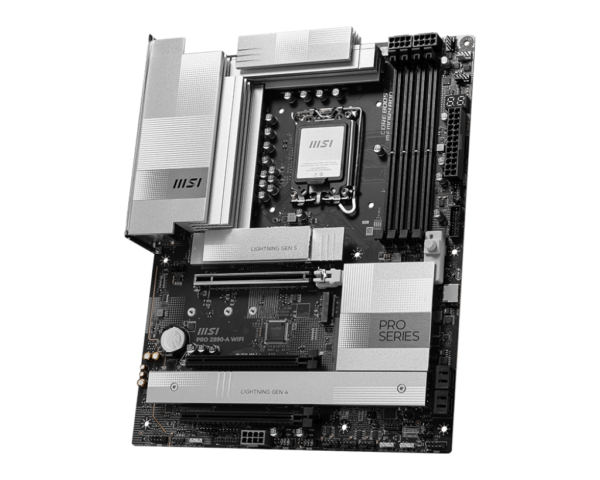

Msi PRO Z890-A WIFI Motherboard
The MSI PRO Z890-A WIFI motherboard is a high-performance ATX motherboard designed for professionals, content creators, and gamers who need a reliable and feature-rich platform.
Features
- Chipset: Based on the Intel Z890 chipset, this motherboard is compatible with Intel’s 13th and 12th generation Core processors, offering exceptional performance for both work and gaming.
- Form Factor: ATX, providing ample space for components and cooling solutions, making it ideal for powerful builds.
- Memory Support: Supports up to 128GB of DDR5 RAM, with overclocking support for speeds up to 6400MHz (OC), ensuring fast and efficient memory handling for demanding tasks.
- Storage: Features 3x M.2 slots and 6x SATA III ports for fast storage solutions, offering plenty of room for SSDs, hard drives, and other storage devices.
- Wi-Fi Connectivity: Integrated Wi-Fi 6E for faster, more stable wireless connections, offering enhanced performance for gaming, streaming, and heavy online tasks.
- Expansion Slots: PCIe 5.0 and PCIe 4.0 slots for graphics cards, expansion cards, and high-speed peripherals, supporting the latest tech for future-proofing your system.
- Audio: High-definition audio with advanced sound quality for immersive gaming, media consumption, or professional audio tasks.
- USB Ports: A wide range of USB 3.2 and USB 2.0 ports, ensuring compatibility with various devices, including high-speed peripherals.
- Cooling Solutions: Multiple fan headers and robust heatsinks to ensure optimal cooling during heavy workloads or gaming sessions.
- Durability: Built with premium components for long-lasting durability, designed to withstand intense usage and provide stability.
- Networking: Includes both Ethernet and Wi-Fi 6E support for a versatile and stable internet connection.
Specifications
| Chipset | INTEL Z890 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed • The DIMM slots on this motherboard only have single-sided latches. |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC1220P 7.1-Channel High Definition Audio Supports S/PDIF output |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |

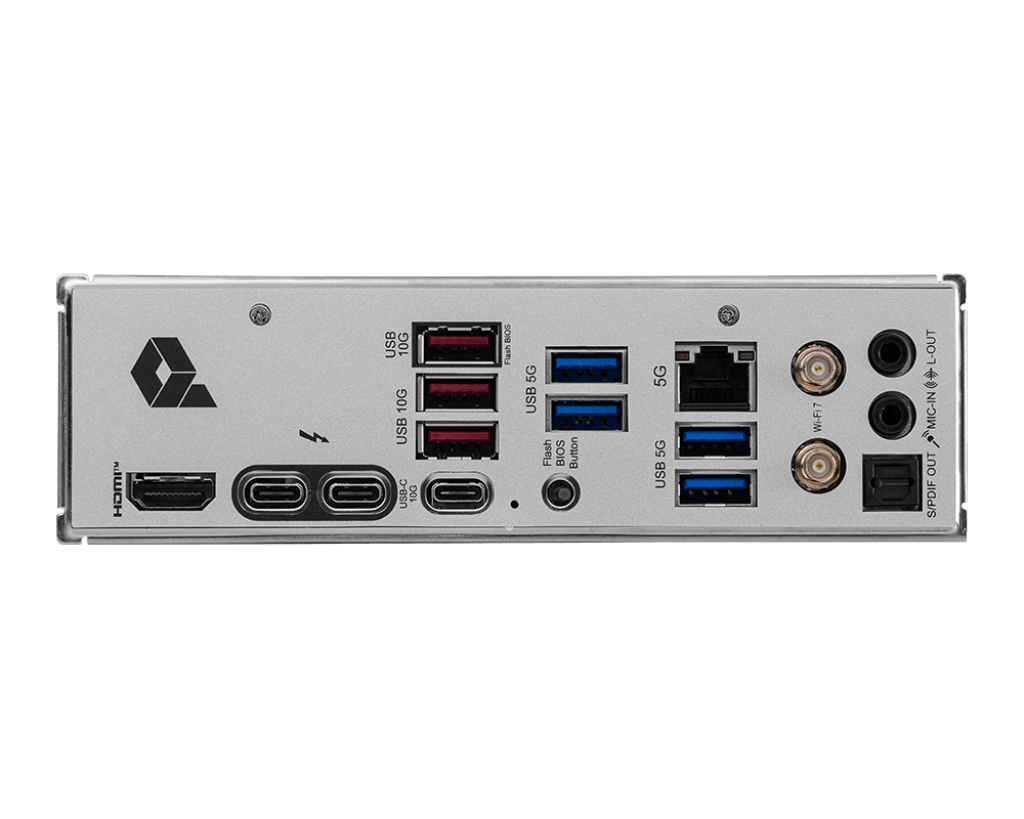

| Onboard Thunderbolt | 2x Thunderbolt4 ports (Rear) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
| LAN | Realtek® 8126 5Gbps LAN |
