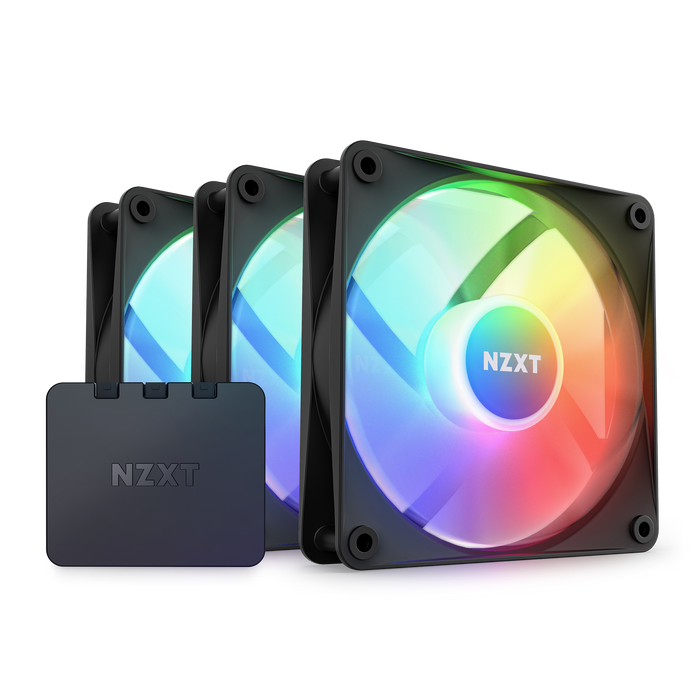

NZXT F Series RGB Core Fans
The NZXT F Series RGB Core Fans combine performance-driven engineering with dazzling aesthetics. Equipped with eight individually addressable RGB LEDs, the fans project vibrant, diffused lighting through semi-translucent blades for a smooth, uniform glow. Engineered with a refined hub and blade design, these fans push air efficiently through radiators, heatsinks, or case intakes/exhausts, ensuring superior heat dissipation.
With PWM control, the fan speeds adjust dynamically for optimized cooling without excessive noise. Fluid Dynamic Bearings enhance stability, reduce noise, and extend the lifespan up to 60,000 hours. Anti-vibration rubber corners further minimize unwanted vibrations, ensuring quiet and stable operation at all speeds.
For personalization, users can harness NZXT CAM software to create unique lighting effects and synchronize them with other NZXT lighting accessories. The included RGB Controller (in twin and triple packs) adds versatility with three lighting channels, supporting up to 120 LEDs in total.
Available in both black and white variants, the F Series RGB Core Fans are a perfect blend of silent cooling, durability, and immersive RGB lighting.
Features
-
Eight individually addressable RGB LEDs with diffused lighting through semi-translucent fan blades.
-
Optimized hub and blade design for superior static pressure and airflow.
-
PWM control enables precise fan speed adjustments for balanced cooling and noise.
-
Fluid Dynamic Bearings ensure low noise, stability, and a 60,000-hour lifespan.
-
Anti-vibration rubber corners reduce vibration and operational noise.
-
Seamless integration with NZXT CAM software for customization and lighting sync.
-
RGB Controller (included with twin/triple packs) supports up to 120 LEDs across three channels.
-
Available in black and white variants.
Specifications
| Categories | Details |
|---|---|
| Material | Plastic, rubber, PCB |
| Fan Rated Voltage | 12 V DC, 0.2 A, 2.4 W |
| LED Quantity | 8 (individually addressable) |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Connector | 4-pin PWM |
| Dimensions (Fan) | 120 x 120 x 26 mm |
| Speed | 500 – 1,800 ± 180 RPM |
| Airflow | 78.86 CFM |
| Static Pressure | 2.57 mm H2O |
| Noise | 33.88 dBA |
| Power Consumption | 12 V DC, 0.2 A, 2.4 W |
| Connector | 4-pin PWM |
| Output LED | 8 LEDs |
| Cable Lengths | 600 mm (PWM Fan Cable x1, NZXT RGB Cable x1) |
| Fan Lifespan | 60,000 hours (approx. 6 years) |
| RGB Controller Size | 63.2 x 53.2 x 12.8 mm (Weight: 52.8g) |
| RGB Controller Material | Plastic, PCB, Magnets |
| RGB Controller Mounting | 2x 3M Dual Lock |
| RGB Controller Connections | 1 x USB 2.0 Header, 1 x SATA |
| Input Connector (Controller) | 12V DC / 2.6A |
| Output Channel Voltage | 5V DC |
| RGB Lighting Channels | 3 (supports up to 40 LEDs per channel, 120 LEDs total) |
| System Requirements | Windows 11/10 PC with NZXT RGB lighting connector, USB 2.0 internal header |
| Warranty | 2 years |
| Model (White) | RF-C12TF-W1 |
| UPC (White) | 810074843072 |
| EAN (White) | 5056547203010 |
| Model (Black) | RF-C12TF-B1 |
| UPC (Black) | 810074843065 |
| EAN (Black) | 5056547203003 |
