NZXT F Series RGB Core Fans
The NZXT F Series RGB Core Fans deliver a balance of cooling efficiency, durability, and customizable aesthetics. Built with eight individually addressable RGB LEDs, the fans produce a refined glow diffused through semi-transparent blades, creating an elegant lighting effect.
Designed with an optimized hub and blade structure, they generate high airflow and static pressure, making them suitable for radiators, heatsinks, and case ventilation—whether intake or exhaust. PWM control ensures dynamic speed adjustment, maintaining optimal cooling when required while keeping noise levels under control.
Equipped with Fluid Dynamic Bearings, these fans achieve excellent rotational stability, low noise, and a long operational life of up to 60,000 hours. Rubber dampeners on each corner further minimize vibration, ensuring smooth and quiet operation.

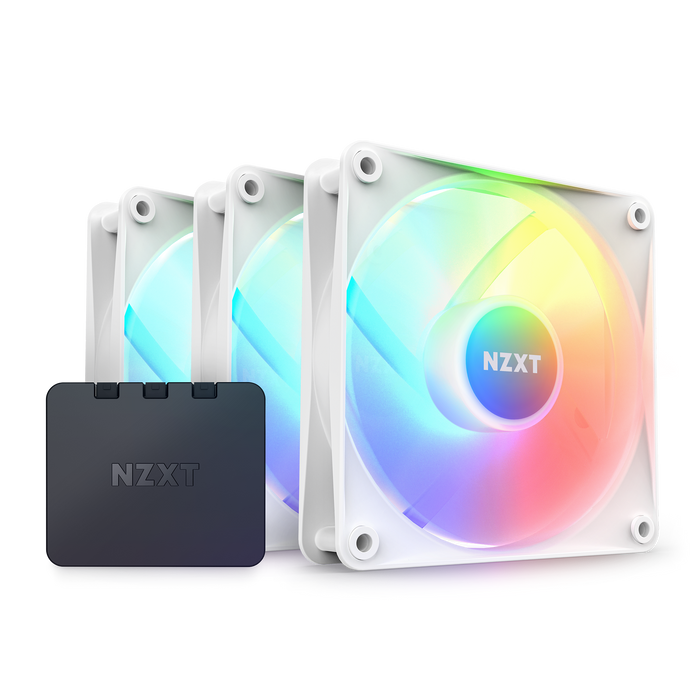

Lighting effects and fan performance can be customized through NZXT CAM software, allowing users to sync with other NZXT accessories for a cohesive setup. Twin and triple fan packs include an RGB Controller, offering three independent lighting channels that support up to 120 LEDs in total.
Available in black and white finishes, the F Series RGB Core Fans are a perfect fit for gamers, PC builders, and enthusiasts looking for reliable cooling with immersive lighting effects.
Features
-
8 individually addressable RGB LEDs for vibrant, diffused illumination.
-
Refined hub and blade design for enhanced static pressure and airflow.
-
PWM-controlled speeds for adaptive cooling and quieter operation.
-
Fluid Dynamic Bearings deliver stability, low noise, and a 60,000-hour lifespan.
-
Rubberized corners reduce vibration and ensure silent performance.
-
Full customization via NZXT CAM with syncing across other NZXT RGB products.
-
RGB Controller (included in twin/triple packs) supports three lighting channels and up to 120 LEDs.
-
Available in sleek black or clean white variants.
Specifications
| Categories | Details |
|---|---|
| Material | Plastic, rubber, PCB |
| Fan Rated Voltage | 12 V DC, 0.2 A, 2.4 W |
| LED Quantity | 8 (individually addressable) |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Connector | 4-pin PWM |
| Dimensions (Fan) | 120 x 120 x 26 mm |
| Speed | 500 – 1,800 ± 180 RPM |
| Airflow | 78.86 CFM |
| Static Pressure | 2.57 mm H2O |
| Noise | 33.88 dBA |
| Power Consumption | 12 V DC, 0.2 A, 2.4 W |
| Connector | 4-pin PWM |
| Output LED | 8 LEDs |
| Cable Lengths | 600 mm (PWM Fan Cable x1, NZXT RGB Cable x1) |
| Fan Lifespan | 60,000 hours (approx. 6 years) |
| RGB Controller Size | 63.2 x 53.2 x 12.8 mm (Weight: 52.8g) |
| RGB Controller Material | Plastic, PCB, Magnets |
| RGB Controller Mounting | 2x 3M Dual Lock |
| RGB Controller Connections | 1 x USB 2.0 Header, 1 x SATA |
| Input Connector (Controller) | 12V DC / 2.6A |
| Output Channel Voltage | 5V DC |
| RGB Lighting Channels | 3 (up to 40 LEDs per channel, 120 total) |
| System Requirements | Windows 11/10 PC with NZXT RGB connector, USB 2.0 internal header |
| Warranty | 2 years |
| Model (White) | RF-C12TF-W1 |
| UPC (White) | 810074843072 |
| EAN (White) | 5056547203010 |
| Model (Black) | RF-C12TF-B1 |
| UPC (Black) | 810074843065 |
| EAN (Black) | 5056547203003 |
