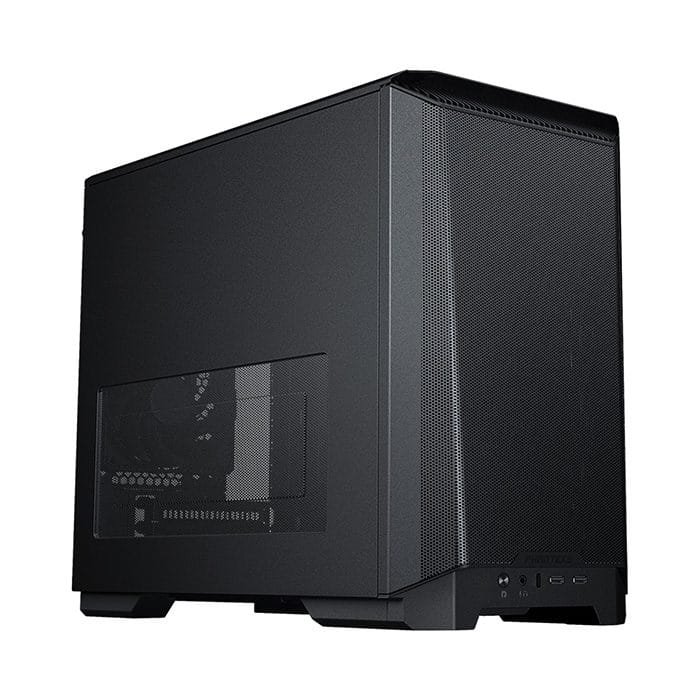

Phanteks Eclipse P200 Air iTX Gaming Case Performance edition
The Phanteks Eclipse P200A Performance Edition (Black) is a compact Mini-ITX case designed to deliver high airflow and accommodate high-performance components.
Features

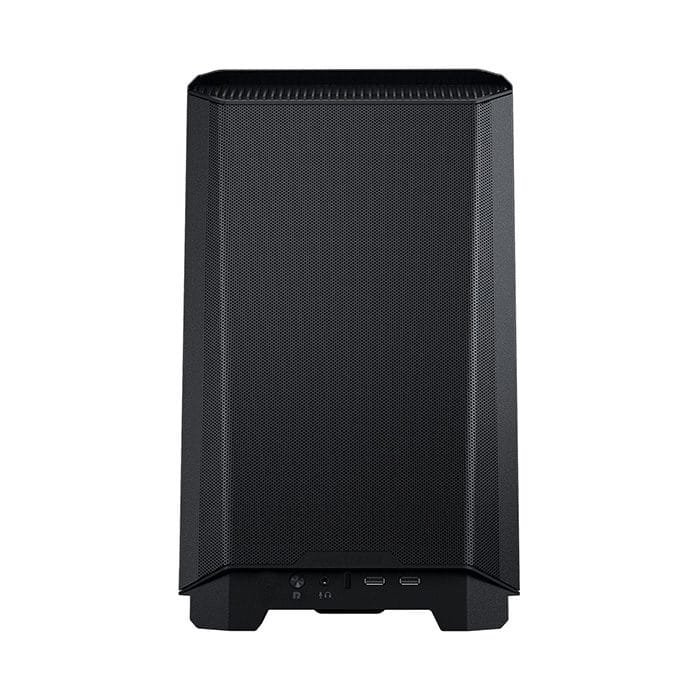

Ultra-Fine Mesh Panels: The front and side panels feature ultra-fine mesh, promoting optimal airflow while effectively filtering dust.
Tempered Glass Side Panel: A tempered glass side panel allows for a clear view of internal components, enhancing the aesthetic appeal.
Compact Yet Spacious: Despite its Mini-ITX classification, the case supports full-size ATX power supplies and large graphics cards up to 355mm in length.
Versatile Cooling Options: Supports multiple fan configurations and radiator placements, including front and side mounting options for liquid cooling solutions.
Digital-RGB Lighting: Includes two pre-installed 120mm D-RGB fans and an integrated D-RGB controller, allowing for customizable lighting effects.
Front I/O Connectivity: Equipped with USB 3.0 ports, a USB-C Gen2 port, audio jacks, and RGB control buttons for easy access.
Specifications
| Model Number | PH-EC200AC_BK01 |
| Dimensions (W x H x D) | 205 x 365 x 400 mm (8.1 x 14.4 x 15.7 in) |
| Form Factor | Mini-ITX |
| Materials | Steel chassis, tempered glass side panel |
| Motherboard Support | Mini-ITX, Mini-DTX |
| Expansion Slots | 3 |
| Drive Bays | 4 x 2.5″ SSD (additional 3.5″ HDD support with optional brackets) |
| Front I/O Ports | 2 x USB 3.0, 1 x USB-C Gen2, headphone/microphone combo jack, RGB controls |
| Cooling Support | Front: 2 x 120mm or 2 x 140mm (1 x 120mm PWM fan pre-installed); Rear: 1 x 120mm (1 x 120mm PWM fan pre-installed); Side: up to 2 x 120mm; Bottom: up to 2 x 120mm |
| Radiator Support | Front: up to 280mm; Side: up to 240mm |
| CPU Cooler Clearance | Up to 165 mm |
| GPU Clearance | Up to 355 mm |
| PSU Clearance | Up to 205 mm (top-mounted) |
| Weight | Approximately 5.3 kg |
| Warranty | 5 years limited |
