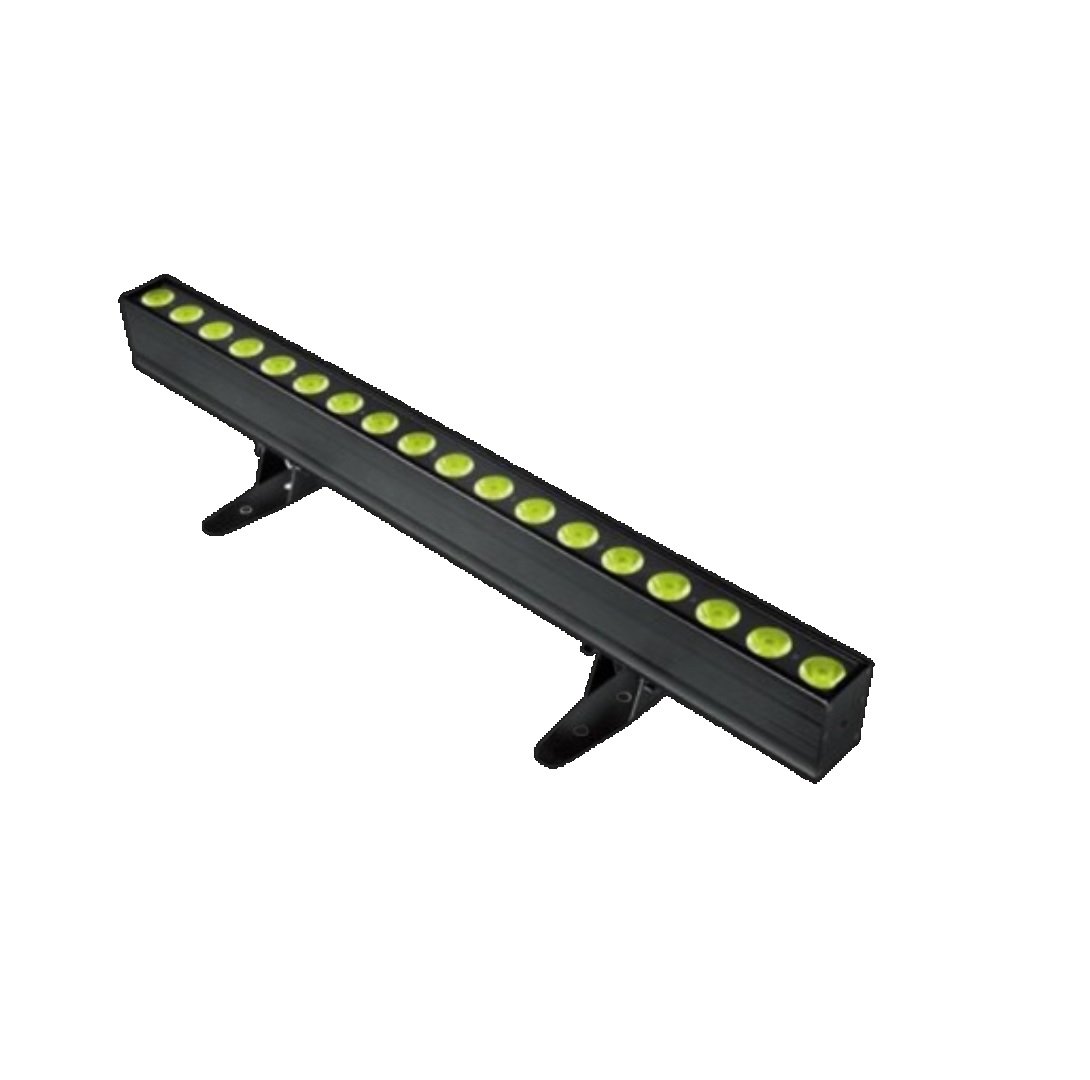

The Stellar Bar 180 is a high-performance architectural LED bar designed for indoor lighting applications. It features 18 high-power 4-in-1 RGBW 10W LEDs, providing vibrant and even color mixing. The fixture offers a 25° beam angle, making it suitable for wall washing and accent lighting. With a slim body design, it ensures a sleek aesthetic while delivering powerful illumination. The Bar 180 operates on a 200W power consumption and supports DMX512 control via 4, 5, or 8 channels. It also offers master/slave synchronization, standalone mode, and sound-activated mode. Constructed with a die-cast aluminum housing, it comes in black, silver, or white finishes. The fixture is IP20 rated, indicating it’s intended for indoor use. Its dimensions are 1075mm (L) x 85mm (W) x 195mm (H), and it weighs 7.5 kg.
FEATURES
- High power 4in1 RGBW 10W LEDs*18pcs
- 25° lens
- IP20, for indoor use
- Slim body , Flicker-free
- Vivid and even color
SPECIFICATIONS
- Power consumption: 200W
- Input voltage: AC 110V-250V,50-60Hz
- Working position: any safe working position
- Working position temperature: -10-40deg
- Light source: TX 9090 4in1 RGBW 10W*18pcs
- Lifetime: >100,000hours
- CCT: 6500K
- Lens: 25°
- Dimmer: 0-100 linear dimmer system
- Even mixing color , perfect wash wall
- Slim body, low noise
- Flicker-free
CONTROL
- Display: LED digital display
- DMX channel: 4/5/8CHs
- Control mode: Master /Slave synchronization, Stand-alone mode, sound mode and DMX512 control mode
CONSTRUCTION
- DMX link: 3pin+5pin DMX in and out
- Power link: Powercon in and out
- Protection rate: IP20, for indoor use
- Housing: Die-casting aluminum housing, black/silver/white color, optional
PHYSICAL

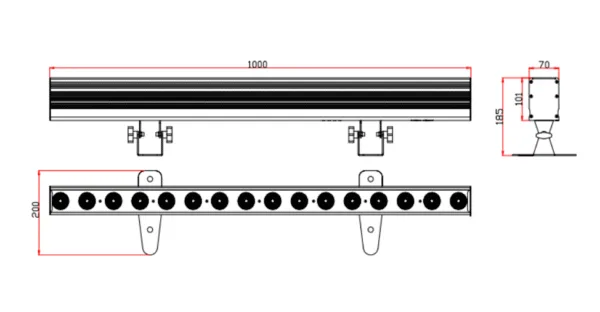

- Dimension: 1075*85*195mm
- Net Weight: 7.5 kgs
- Gross weight: 10kgs
