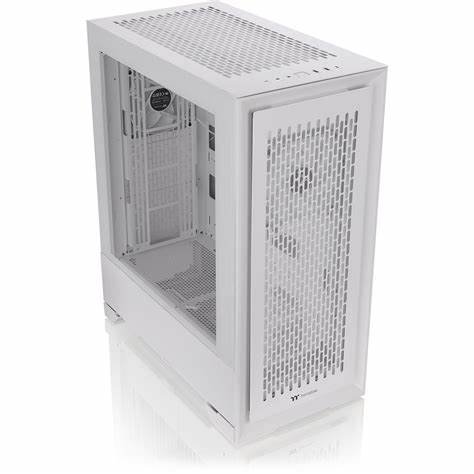

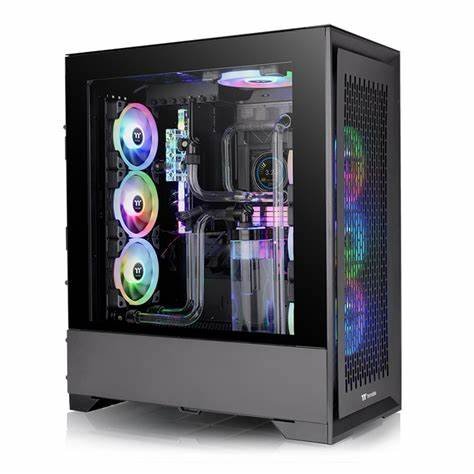

Thermaltake CTE T500 Air Full Tower Gaming Case
The Thermaltake CTE T500 Air Full Tower Chassis is engineered to deliver superior thermal performance for high-end PC builds, featuring an innovative design that enhances airflow to critical components.
Features

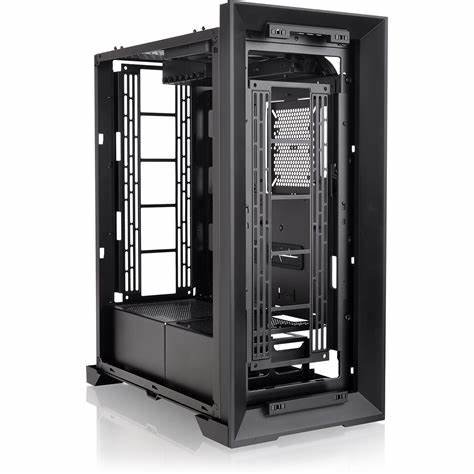

Enhanced Airflow Design: The chassis incorporates the Centralized Thermal Efficiency (CTE) form factor, positioning the motherboard tray centrally to optimize airflow directly to heat-generating components.
Pre-Installed High-Performance Fans: Equipped with three 140mm CT140 PWM fans—mounted at the front, top, and rear—the case ensures robust cooling out of the box.
Extensive Cooling Support: Accommodates up to eleven 140mm or 120mm fans and supports dual 360mm radiators simultaneously at the front and rear, with the option to install a 420mm AIO radiator at the front.
Versatile Component Compatibility: Supports E-ATX motherboards, graphics cards up to 400mm in length, CPU coolers up to 185mm in height, and power supplies up to 220mm in length, providing ample space for various configurations.
Specifications
| Specification | Details |
|---|---|
| Dimensions (H x W x D) | 525 x 245 x 507 mm (20.7 x 9.6 x 20 inches) |
| Material | SPCC (Steel), 4mm Tempered Glass |
| Motherboard Support | E-ATX, ATX, Micro ATX, Mini ITX |
| Drive Bays | – 4 x 3.5″ HDD – 6 x 2.5″ SSD |
| Expansion Slots | 7 |
| Maximum GPU Length | 400 mm |
| Maximum CPU Cooler Height | 185 mm |
| Maximum PSU Length | 220 mm |
| Front I/O Ports | – 2 x USB 3.0 – 1 x USB 3.2 Gen 2 Type-C – 1 x HD Audio |
| Fan Support | – Front: 3 x 140mm or 3 x 120mm – Top: 2 x 140mm or 2 x 120mm – Rear: 3 x 140mm or 3 x 120mm – Right Side: 2 x 140mm or 2 x 120mm – Bottom: 1 x 140mm or 1 x 120mm – Cover: 1 x 140mm or 1 x 120mm |
| Radiator Support | – Front: Up to 420mm – Rear: Up to 360mm – Top: Up to 280mm – Right Side: Up to 360mm |
