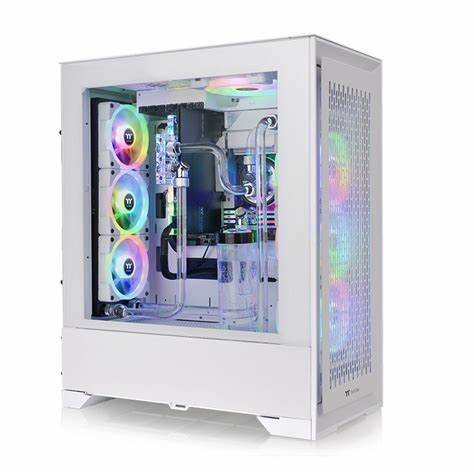

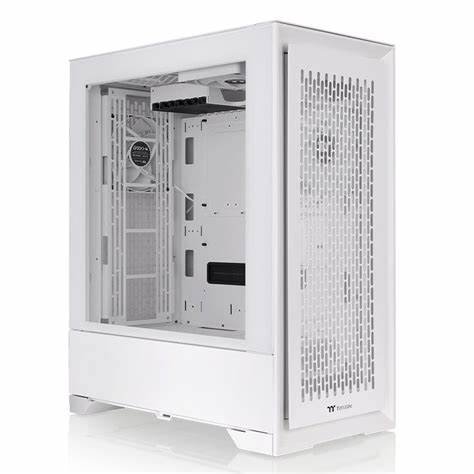

Thermaltake CTE T500 Air Snow Full Tower Gaming Case
The Thermaltake CTE T500 Air Snow Full Tower Chassis is designed to deliver exceptional thermal performance and expansive hardware support, making it ideal for high-end PC builds.
Features
Centralized Thermal Efficiency (CTE) Design: The innovative CTE form factor positions the motherboard tray centrally, optimizing airflow directly to critical components such as the CPU and GPU, thereby enhancing thermal dissipation.
Pre-Installed High-Performance Fans: The chassis comes equipped with three 140mm CT140 white fans pre-installed at the front, top, and rear, ensuring substantial airflow and effective cooling out of the box.
Extensive Cooling Support: It accommodates up to eleven 140mm or 120mm fans across various mounting points, and supports up to a 420mm AIO radiator at the front, with the capability to install two 360mm AIO radiators simultaneously at the front and rear.
Versatile Component Compatibility: The chassis supports E-ATX motherboards, graphics cards up to 385mm in length, CPU coolers up to 195mm in height, and power supplies up to 180mm in length, providing ample space for various configurations.
Specifications
| Specification | Details |
|---|---|
| Dimensions (H x W x D) | 525 x 245 x 507 mm (20.7 x 9.6 x 20 inches) |
| Material | SPCC (Steel), 4mm Tempered Glass |
| Motherboard Support | E-ATX, ATX, Micro ATX, Mini ITX |
| Drive Bays | – 4 x 3.5″ HDD – 6 x 2.5″ SSD |
| Expansion Slots | 7 |
| Maximum GPU Length | 385 mm |
| Maximum CPU Cooler Height | 195 mm |
| Maximum PSU Length | 180 mm |
| Front I/O Ports | – 2 x USB 3.0 – 1 x USB 3.2 Gen 2 Type-C – 1 x HD Audio |
| Fan Support | – Front: 3 x 140mm or 3 x 120mm – Top: 2 x 140mm or 2 x 120mm – Rear: 3 x 140mm or 3 x 120mm – Right Side: 2 x 140mm or 2 x 120mm – Bottom: 1 x 140mm or 1 x 120mm – PSU Shroud: 1 x 140mm or 1 x 120mm |
| Radiator Support | – Front: Up to 420mm – Rear: Up to 360mm – Top: Up to 280mm – Right Side: Up to 360mm |
